Magnetic Catch 20 (Set)

Product information "Magnetic Catch 20 (Set)"

Color:
Magnetic catch: Black

Delivery Countries:
Worldwide

Description:

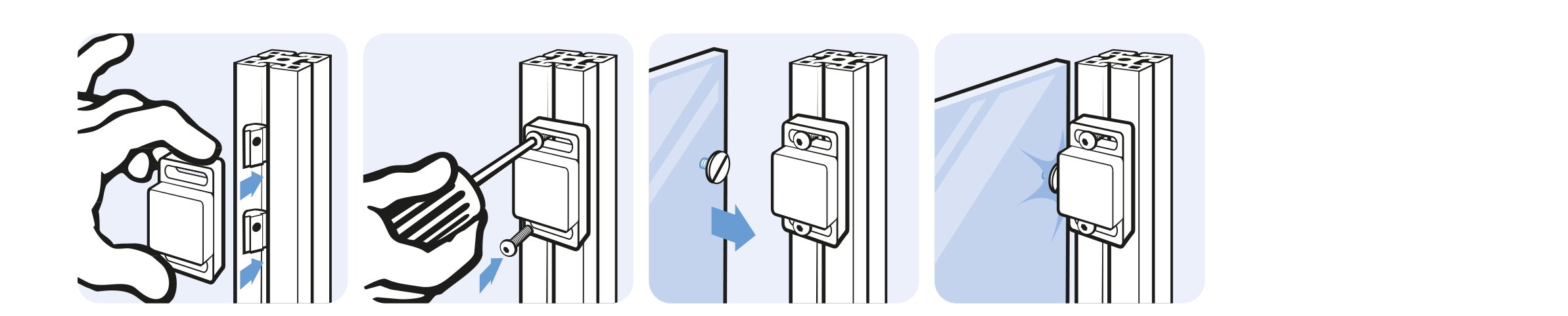

A quick locking device for doors, adaptable to the thickness of the panel units

Material:
Magnetic catch: Plastic PA, glass fiber reinforced
Assembly set: Steel
Angle bracket: Aluminum

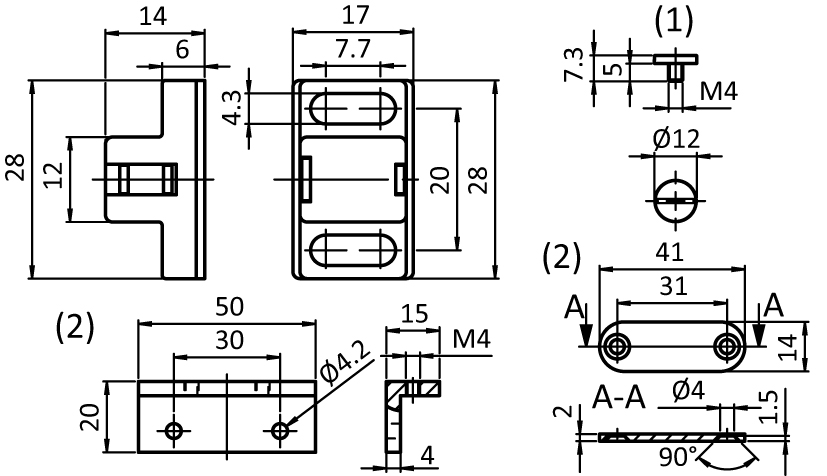

Set 1:
1 magentic catch 20,
1 pan head screw DIN 921 - M4 x 5

Set 2:
1 magentic catch 20,
1 counter plate 14 x 41 x 2 mm,
2 screws DIN EN ISO 7380 (DIN 34805) - M4 x 10,
1 angle bracket

Specials:
ESD electrostatical discharging, other sizes, other colors on request
(ECLASS 6.0): 23250102
(ECLASS 7.0): 23250103
(ECLASS 8.0): 23250103
(ECLASS 9.0): 23250103
(ECLASS 10.0): 23250103
(ECLASS 11.0): 23250103
(ECLASS 12.0): 23250103
(ECLASS 13.0): 23250103
Customs Tariff Number Export: 39263000
Fastening: Using screws M4
Model: Plastic PA
Pack Quantity: 10 sets
Weight (g): 33.0
Zolltarifnummer: 39263000900
pA Number: 128647

Variants

Product ID Fig. Locking Force Set
093046 Approx. 5 N front / 3 N back Set 2
093094 Approx. 5 N front / 3 N back Set 1
