Milling Connector B, Slot 8

Product information "Milling Connector B, Slot 8"

Delivery Countries:
Worldwide

Description:

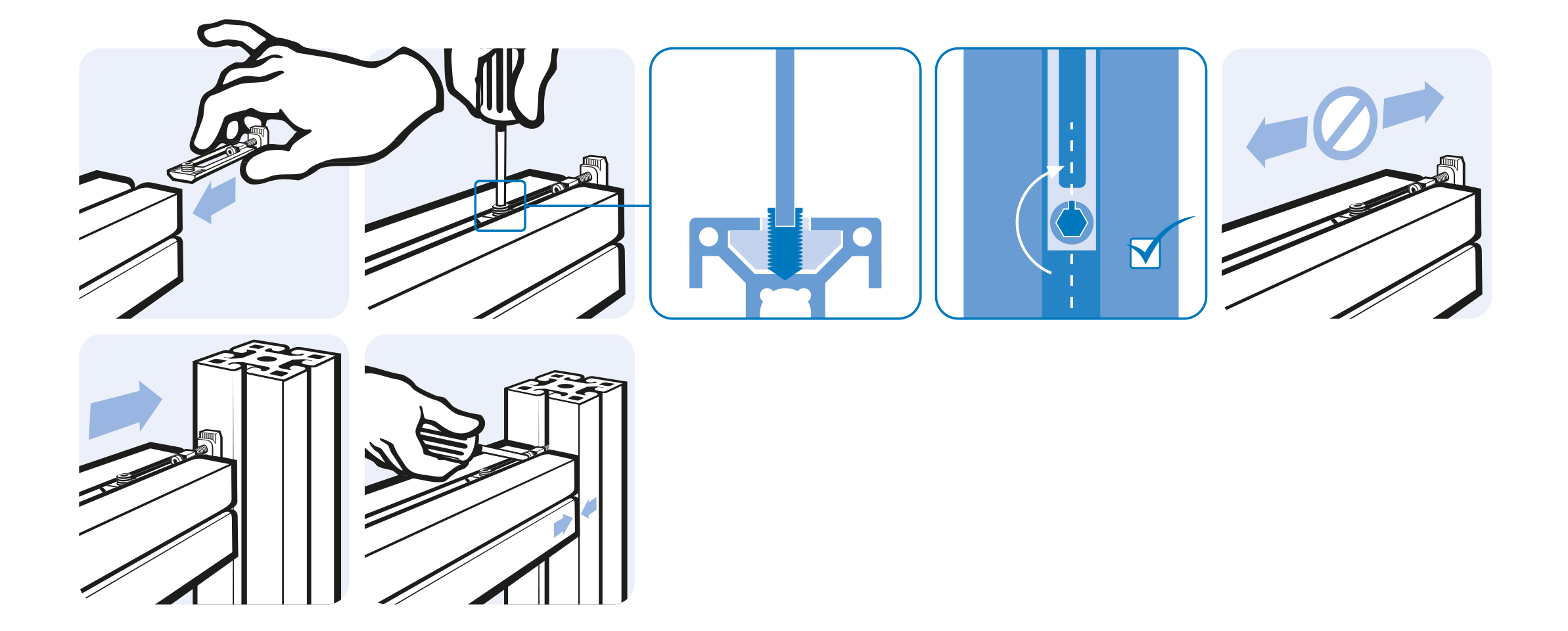

To connect two aluminum profiles fast and solid; assembly without machining

Material:
Steel

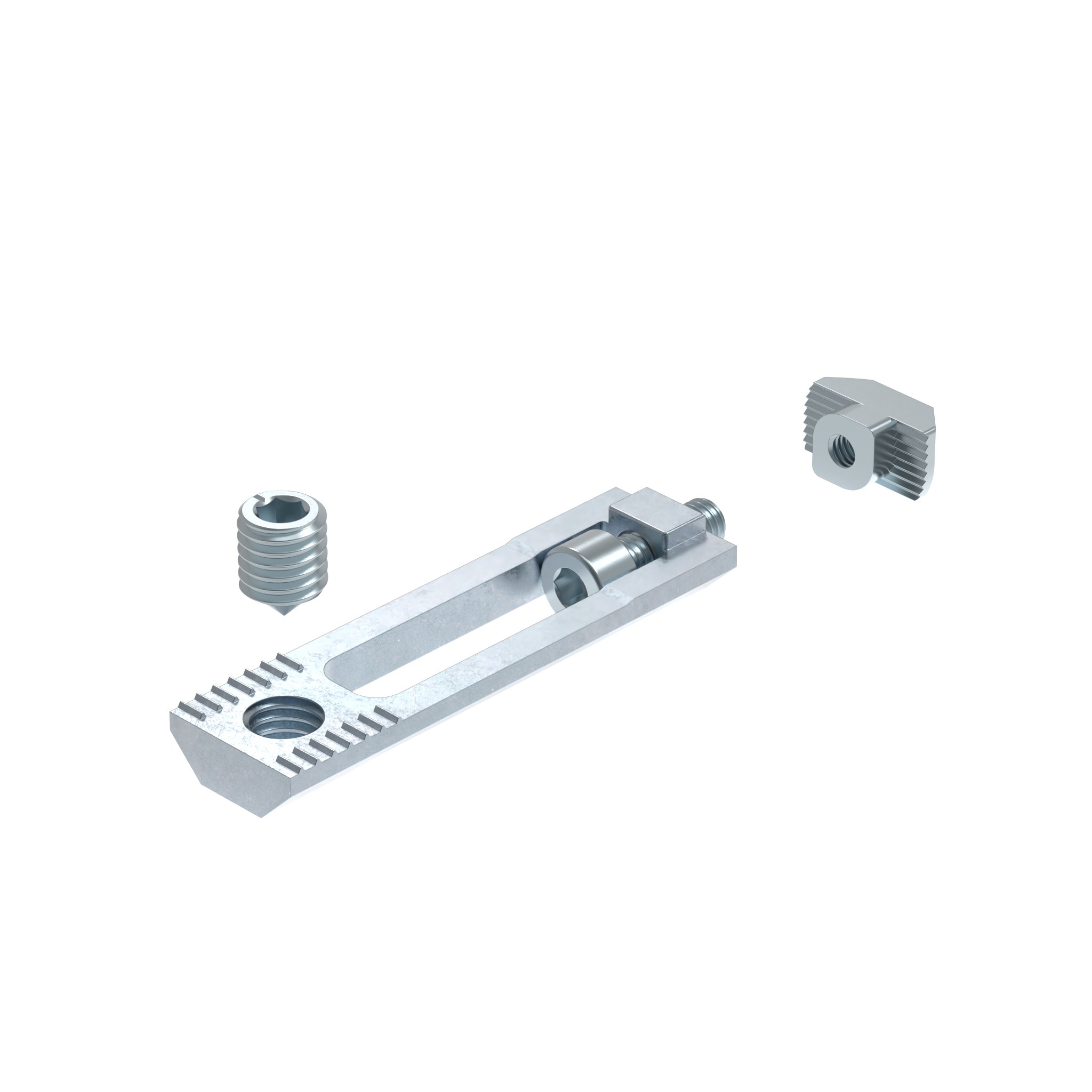

Set:
1 milling connector,
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14,
1 hammer nut
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 73269098
Model: Steel, slot 8
Pack Quantity: 10 sets
Weight (g): 31.7
Zolltarifnummer: 73269098900
pA Number: 105309

Variants

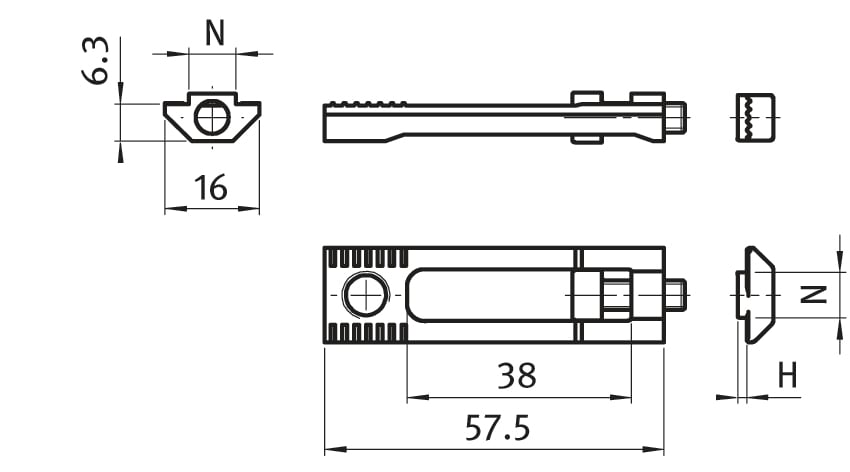

Product ID H (mm) Profile Slot N (mm)
099D0830M0515 1.5 B 8
