Milling Connector I, Slot 8 (Set)

Product information "Milling Connector I, Slot 8 (Set)"

Delivery Countries:
Worldwide

Description:

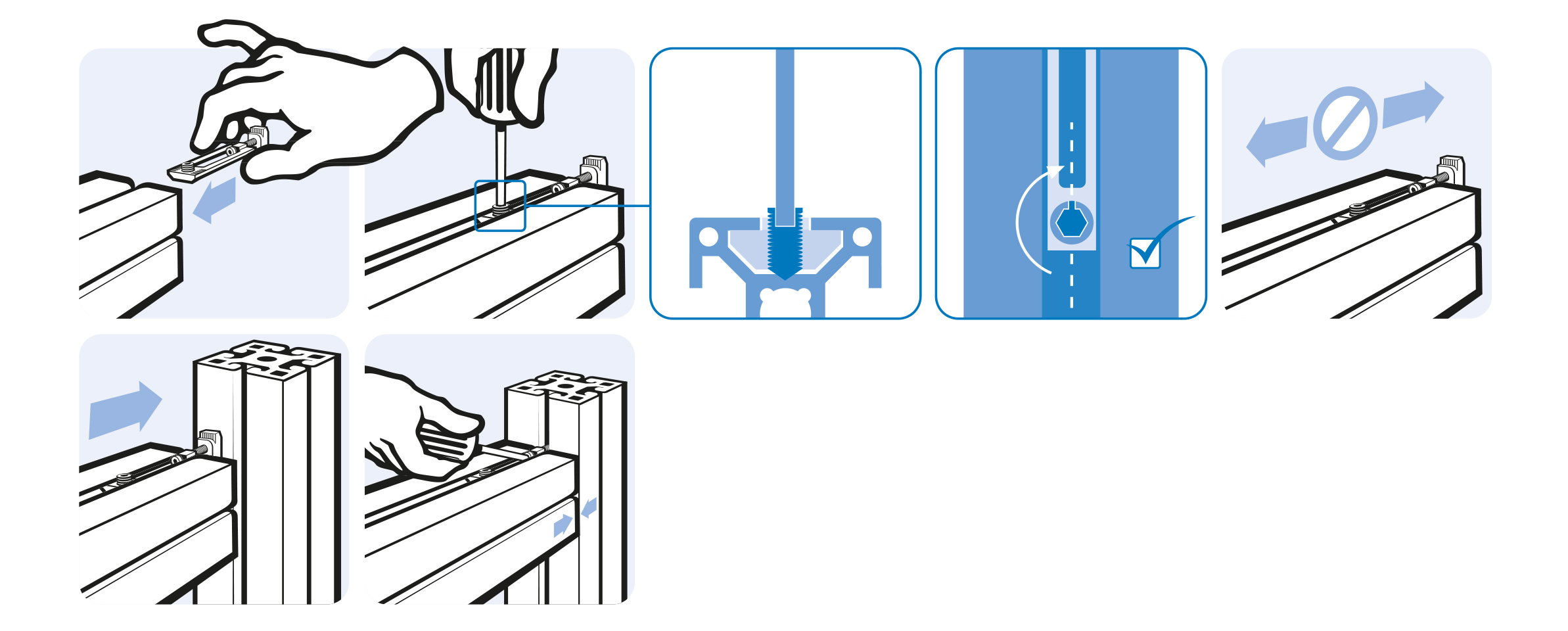

To connect two aluminum profiles fast and solid; assembly without machining

Material:
Steel

Set:
1 milling connector,
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 18,
1 hammer nut

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel, slot 8
Pack Quantity: 10 sets
Weight (g): 37.3

Variants

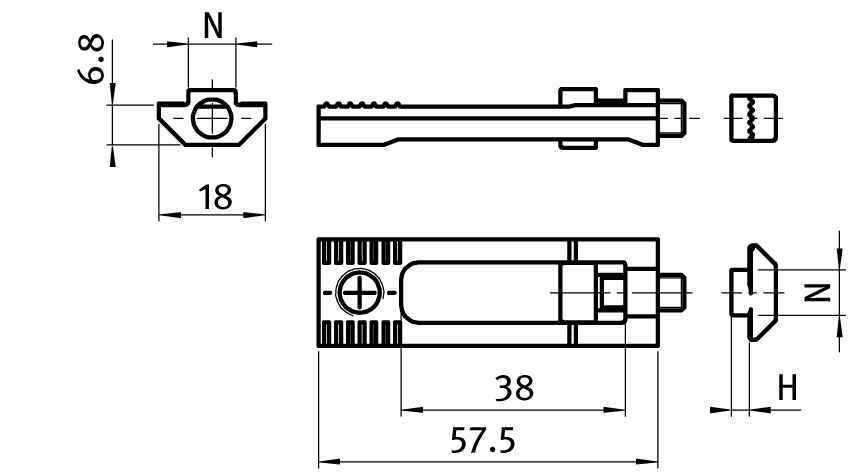

Product ID H (mm) Profile Slot N (mm)
099D0840M0530 3.0 I 8

CAD Downloads

Certificates
