Miter Connector 45°

Skip image gallery
Miter Connector 45° 099GV1045 – product image
Miter Connector 45° – product image of all versions
Miter Connector 45° – technical drawing
Miter Connector 45° – application example
Miter Connector 45° 099GV1045 – product image
Miter Connector 45° – product image of all versions

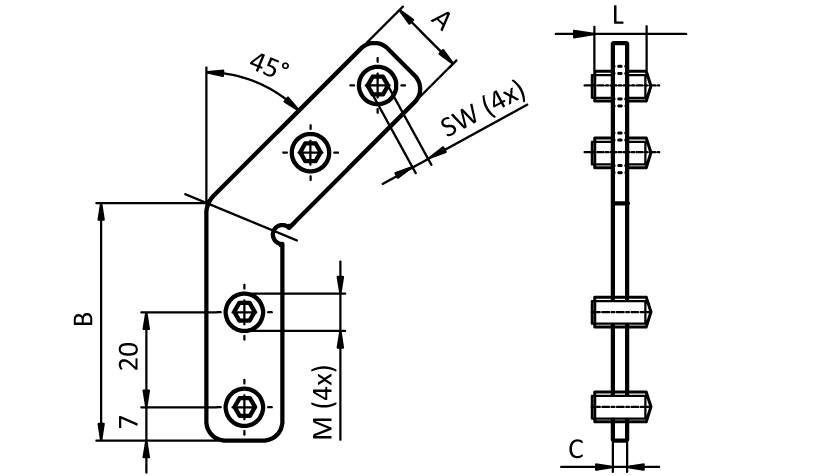

Miter Connector 45° – technical drawing

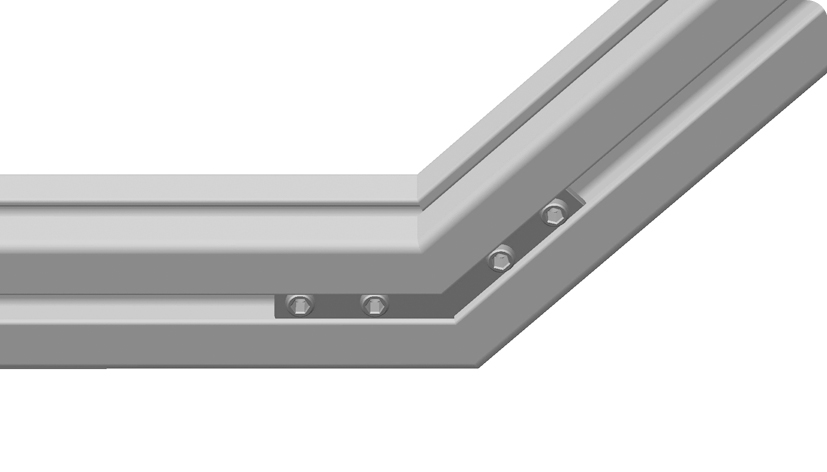

Miter Connector 45° – application example

€0.00

A (mm)
B (mm)
C (mm)
L (mm)
SW
Hexagon socket set screw
Part #: 099GV1045
Pack Quantity: 10 pieces
Description:
To connect two aluminum profiles
Material:
Steel

Surface:
Zinc plated

Delivery Countries:
Worldwide
Pack Quantity: 10 pieces
Model: Steel
Weight (g): 64.5
ERP Number: 118546

Variants

Part # A (mm) B (mm) C (mm) L (mm) SW Hexagon socket set screw CAD
099GV0845
16.0 46.0 3.0 7.9 4 M8
099GV1045
20.2 60.0 3.0 10.0 5 M10

Classifications

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
Zolltarifnummer
73269098900
Customs Tariff Number Export
73269098

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate

Tags

Profile Type Profile Type B, Profile Type I
Profile Form T-slot Profiles
