Miter Connector B 45°-90°, Slot 10
Regular price:
€0.00
Part #:
099BG10081090
Pack Quantity:
10 pieces
Description:

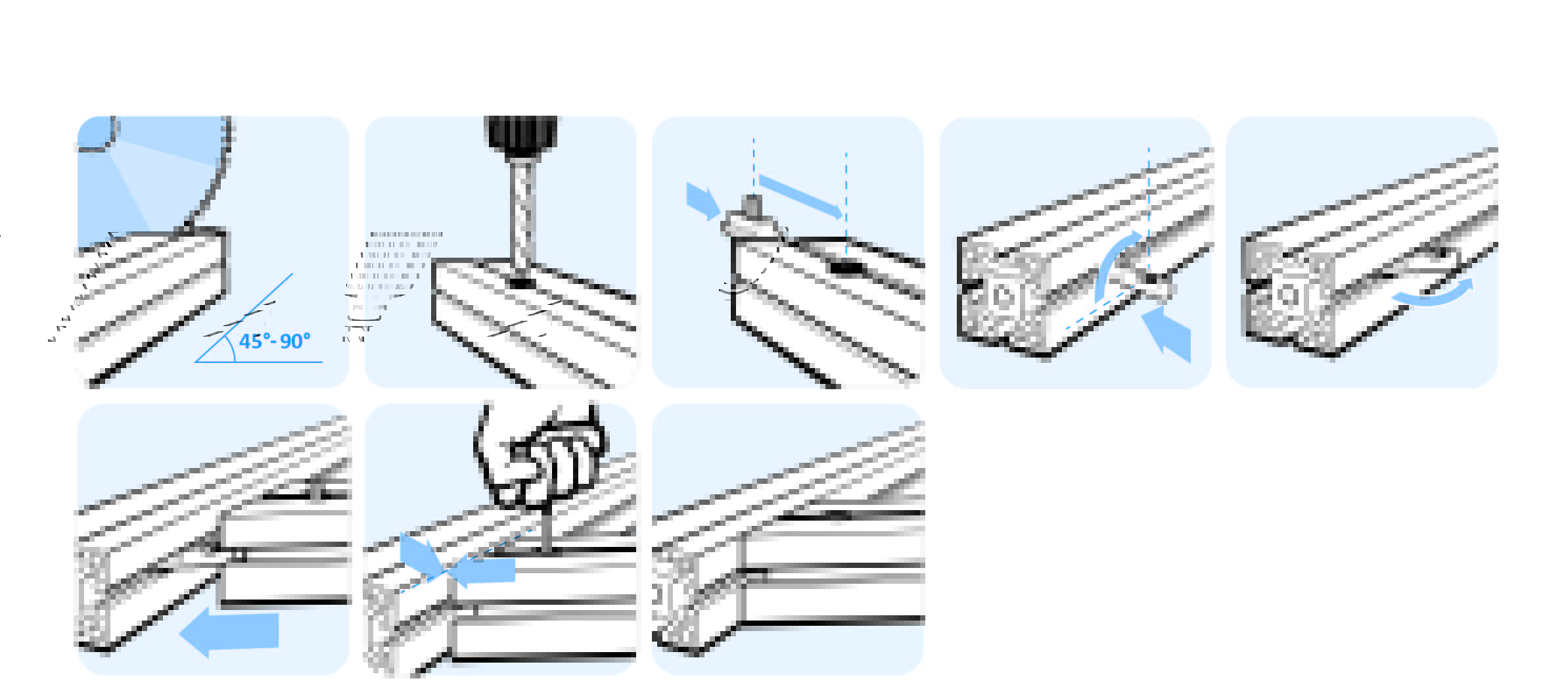

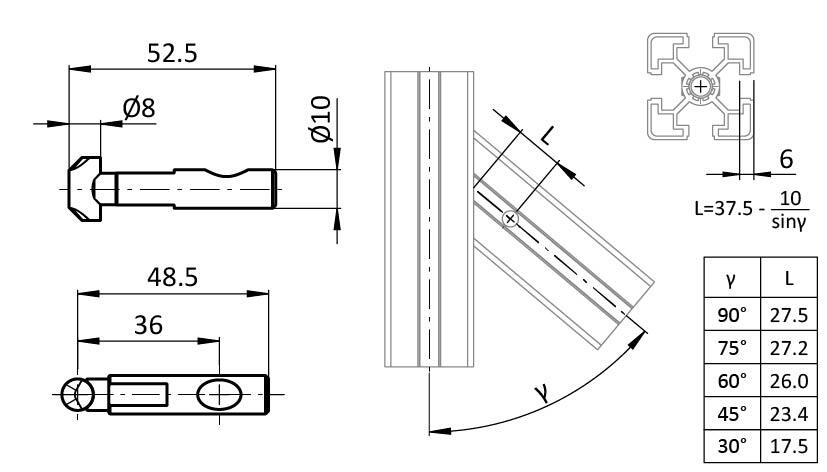

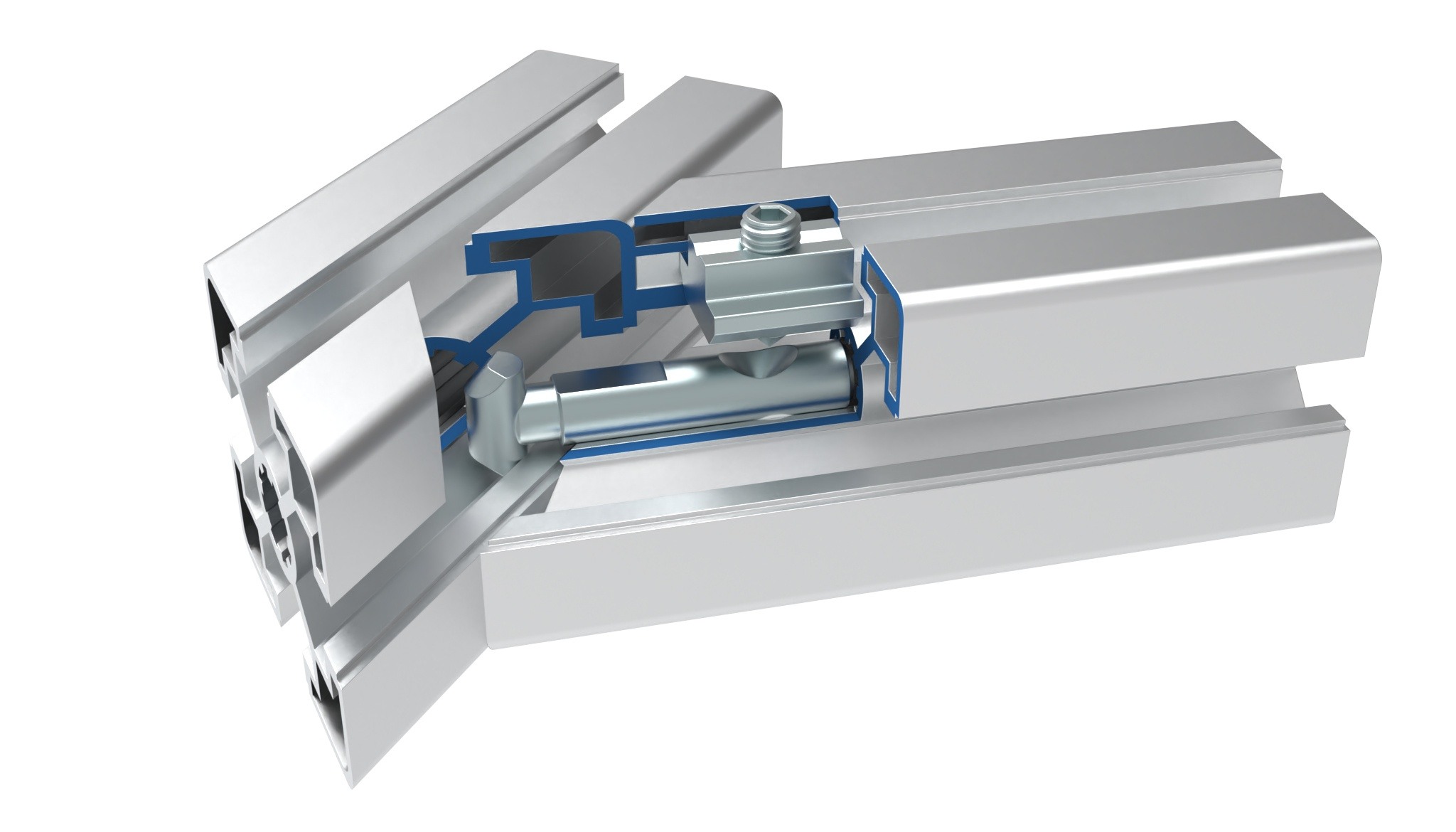

End-to-end connection of an aluminum profile with a mitre cut (cut γ = 45° - 90°) to another aluminum profile; before the application a hole with Ø 8.2 mm lateral must be drilled; with T-slot nut and threaded pin with AF 4
End-to-end connection of an aluminum profile with a mitre cut (cut γ = 45° - 90°) to another aluminum profile; before the application a hole with Ø 8.2 mm lateral must be drilled; with T-slot nut and threaded pin with AF 4
Material:
Zinc plated / plain
Surface:
Zinc plated
Delivery Countries:
Worldwide
Zinc plated / plain
Surface:
Zinc plated
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Steel, profile 45, slot 10 deep |
| Weight (g): | 57.0 |
| ERP Number: | 137886 |
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
Certificates
