Miter Connector B 60°-180°, Slot 10
Regular price:
€0.00
Part #:
099BG100810180
Pack Quantity:
10 pieces
Description:

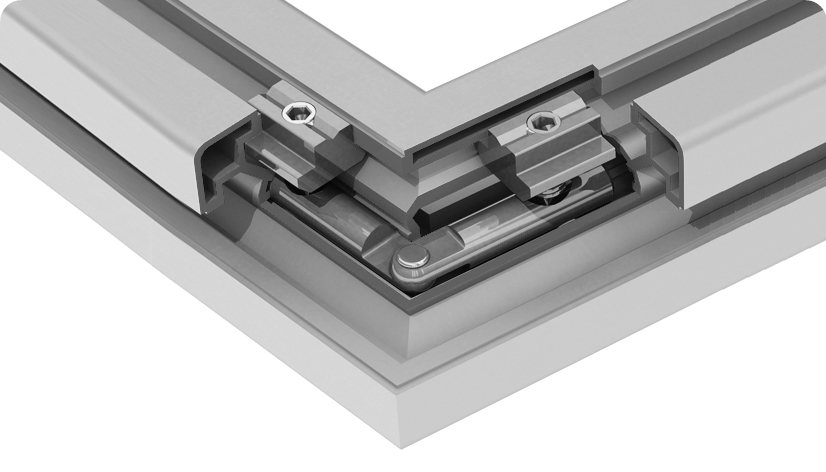

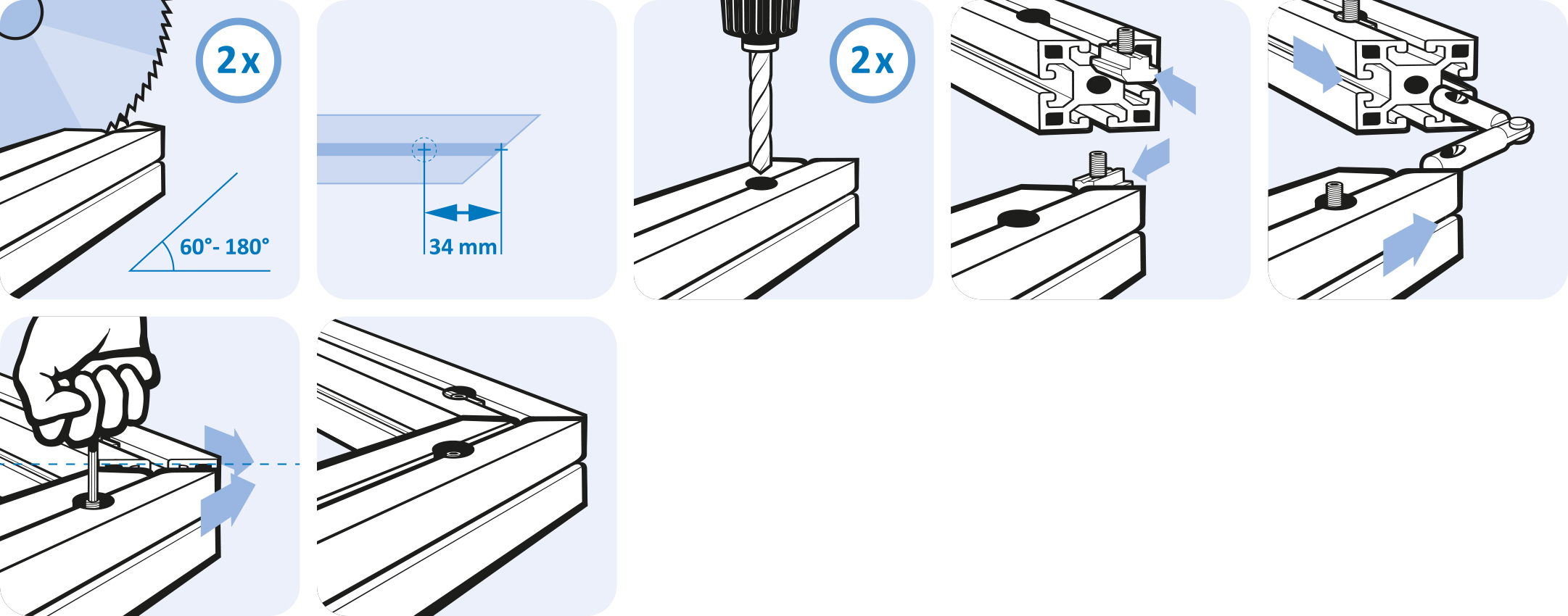

End-to-end connection of two aluminum profiles with a mitre cut (cut each γ = 60° - 90°); before the application a hole with Ø 8.2 mm in a distance of 34 mm of the profile end must be drilled; with T-slot nut and threaded pin with AF 4
End-to-end connection of two aluminum profiles with a mitre cut (cut each γ = 60° - 90°); before the application a hole with Ø 8.2 mm in a distance of 34 mm of the profile end must be drilled; with T-slot nut and threaded pin with AF 4
Material:
Steel
Surface:
Zinc plated
Delivery Countries:
Worldwide
Steel
Surface:
Zinc plated
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Steel, slot 10 |
| Weight (g): | 96.0 |
| ERP Number: | 137887 |
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
Certificates
