Miter Connector I 30°-90°, Slot 8
Regular price:
€0.00
Part #:
099BG081429
Pack Quantity:
10 pieces
Description:

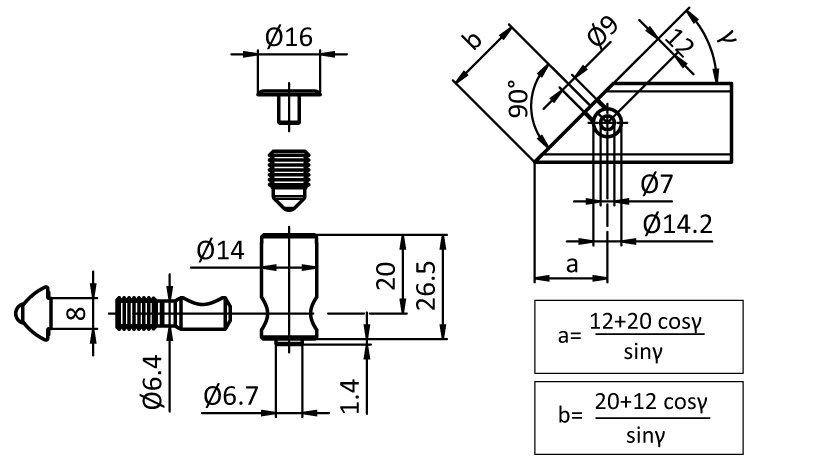

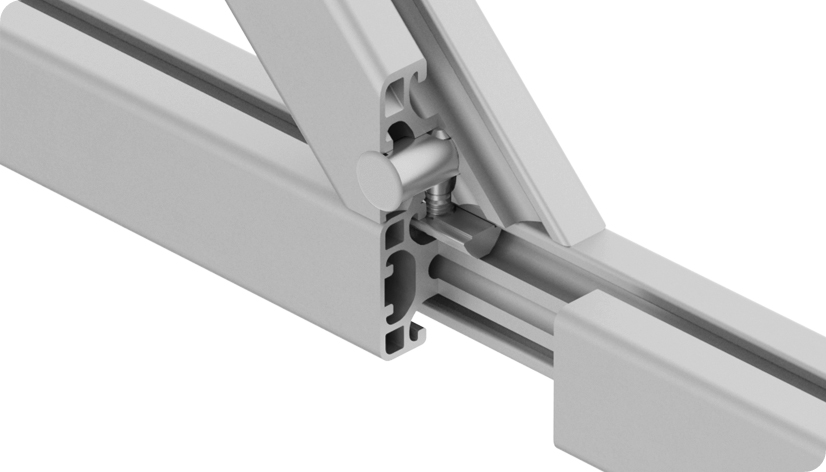

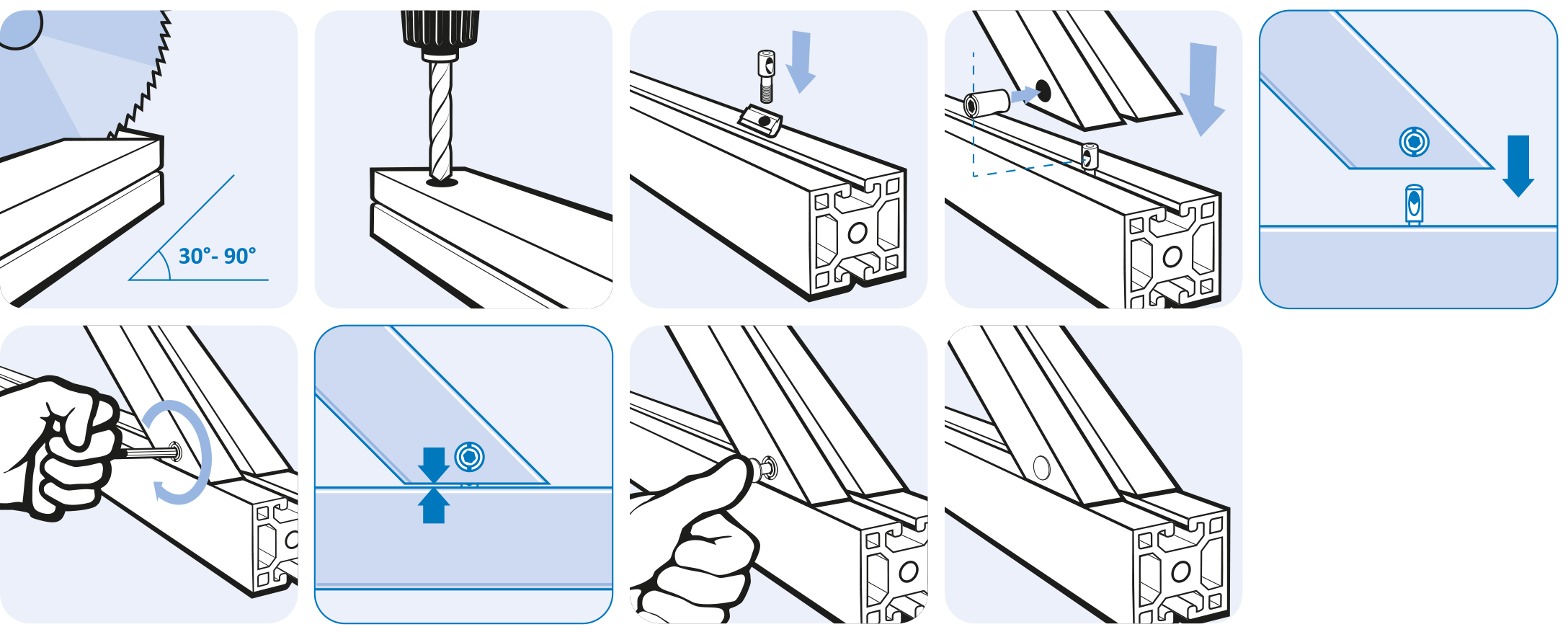

End-to-end connection of an aluminum profile with a miter cut (cut γ = 30° - 90°) to another aluminum profile; before the application each a hole with Ø 14.2 mm lateral and Ø 9.0 mm frontal must be drilled; with T-slot nut and cover cap
End-to-end connection of an aluminum profile with a miter cut (cut γ = 30° - 90°) to another aluminum profile; before the application each a hole with Ø 14.2 mm lateral and Ø 9.0 mm frontal must be drilled; with T-slot nut and cover cap
Material:
Connector and T-slot nut: Steel
Cover caps: Plastic PP
Surface:
Connector and T-slot nut: Zinc plated
Color:
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Connector and T-slot nut: Steel
Cover caps: Plastic PP
Surface:
Connector and T-slot nut: Zinc plated
Color:
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Steel, profile 40, slot 8 |
| Weight (g): | 42.0 |
| ERP Number: | 125785 |
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
