Mitre Connector 45°

Product information "Mitre Connector 45°"

Delivery Countries:
Worldwide

Description:

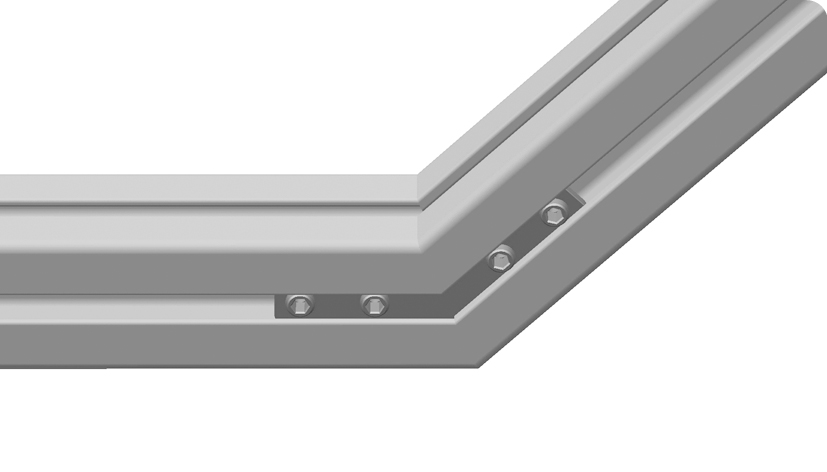

To connect two aluminum profiles

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel
Pack Quantity: 10 pieces
Weight (g): 64.5

Variants

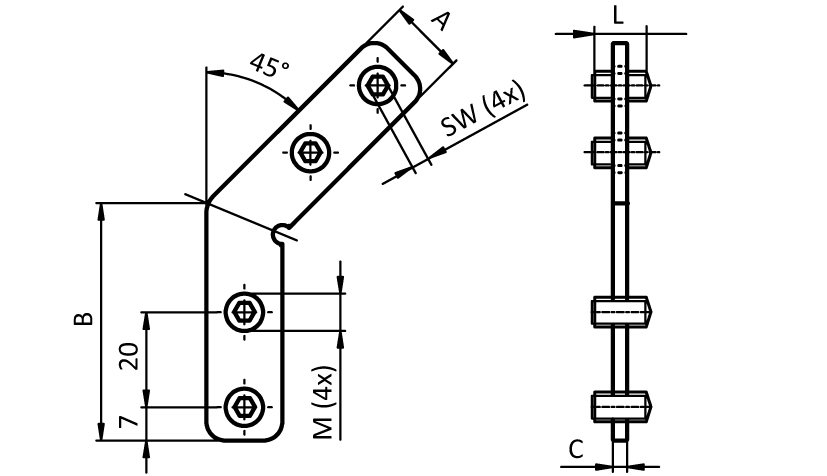

Product ID C (mm) L (mm) B (mm) Hexagon socket set screw A (mm) SW
099GV0845 3.0 7.9 46.0 M8 16.0 4
099GV1045 3.0 10.0 60.0 M10 20.2 5
