Mitre Connector 90°

Product information "Mitre Connector 90°"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles

Material:
Steel

Surface:
Zinc plated
Pack Quantity: 10 pieces
Model: Steel
Weight (g): 59.0
ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73269098900
Customs Tariff Number Export: 73269098
ERP Number: 118544

Variants

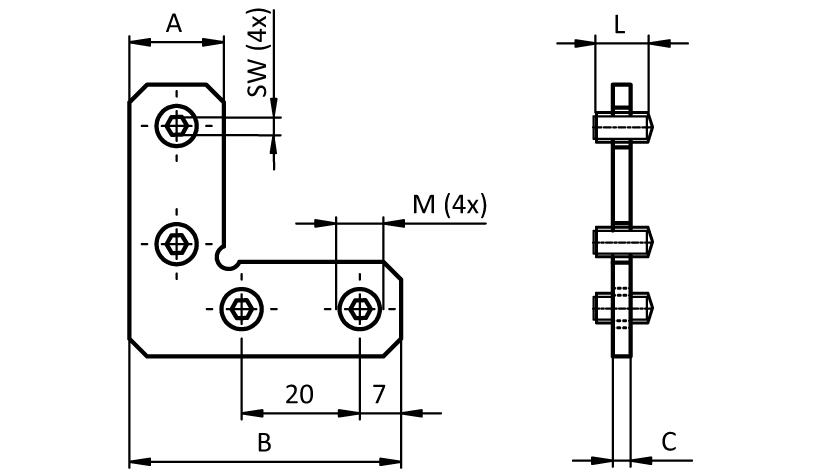

Part # A (mm) B (mm) C (mm) L (mm) SW Hexagon socket set screw
099GV0890 16.0 46.0 3.0 7.9 4 M8
099GV1090 20.2 60.0 3.0 10.0 5 M10
