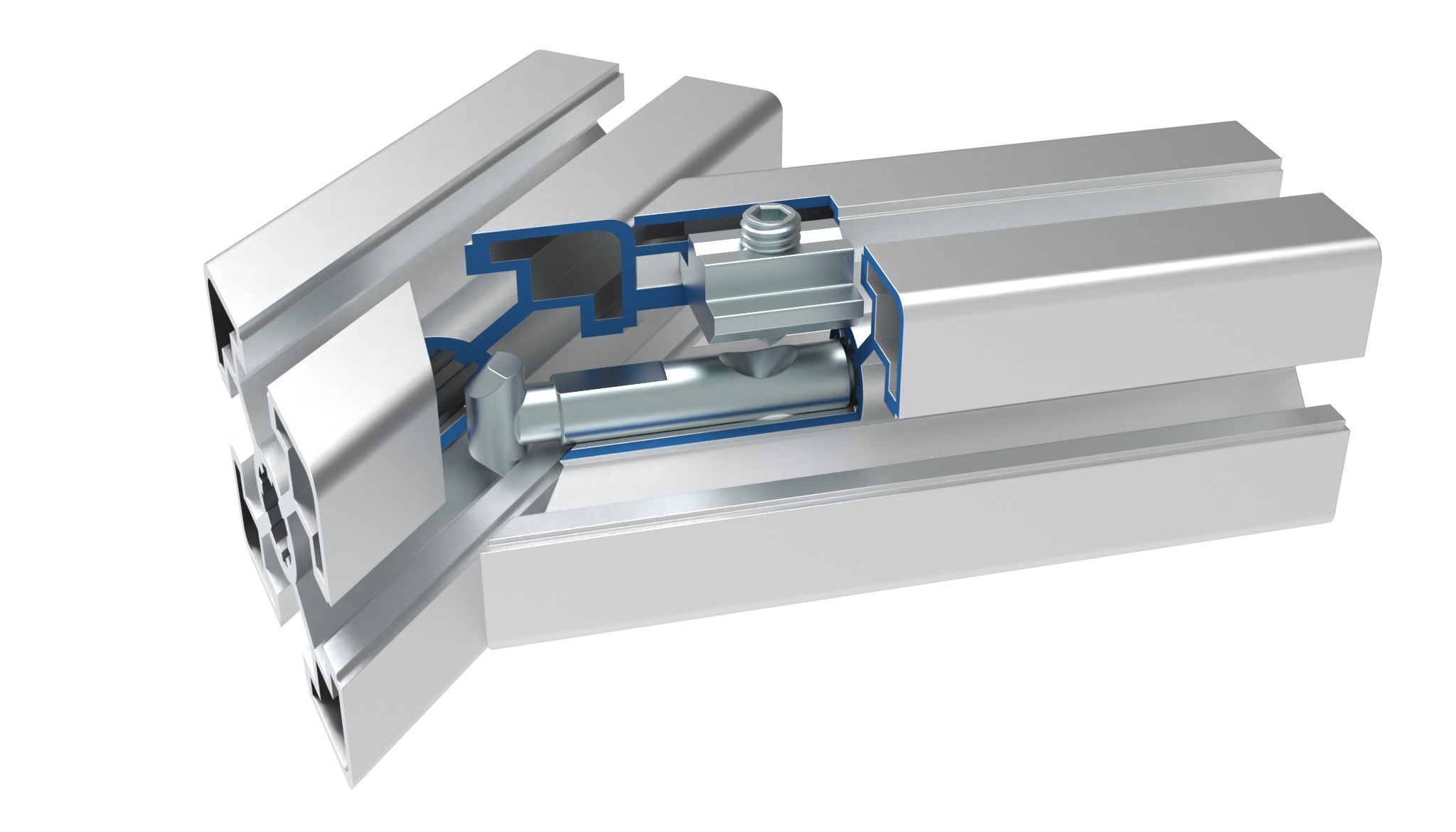

Mitre Connector B 45°-90°, Slot 10

Product information "Mitre Connector B 45°-90°, Slot 10"

Delivery Countries:
Worldwide

Description:

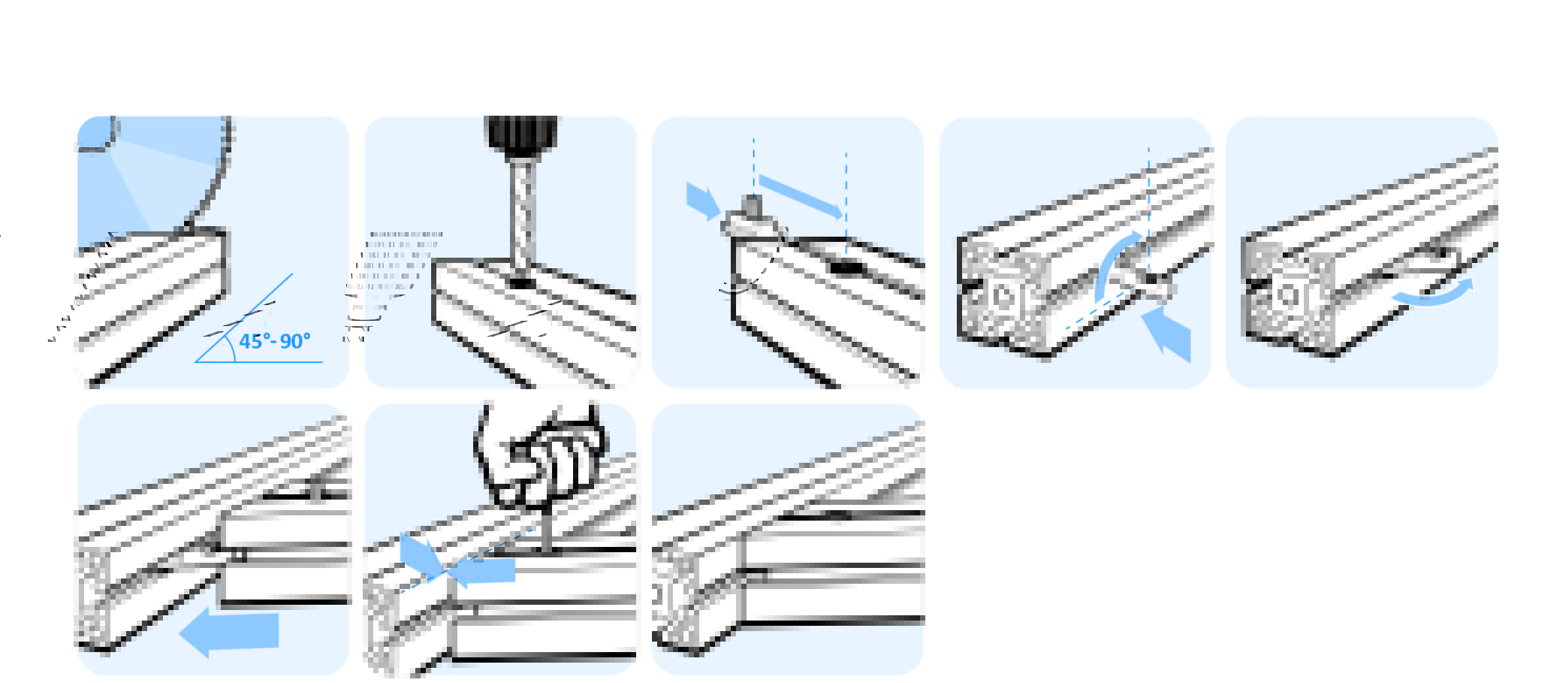

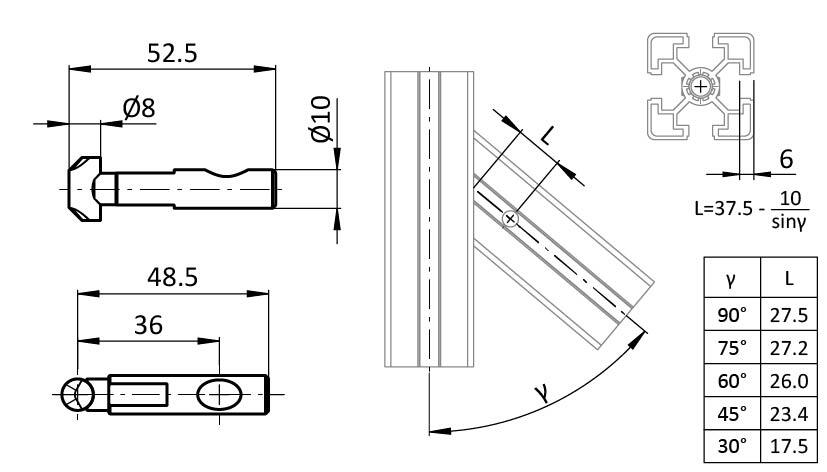

End-to-end connection of an aluminum profile with a mitre cut (cut γ = 45° - 90°) to another aluminum profile; before the application a hole with Ø 8.2 mm lateral must be drilled; with T-slot nut and threaded pin with AF 4

Material:
Zinc plated / plain

Surface:
Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel, profile 45, slot 10 deep
Pack Quantity: 10 pieces
Weight (g): 57.0

Variants

Product ID Profile Slot N (mm)
099BG10081090 B 10

CAD Downloads

Certificates
