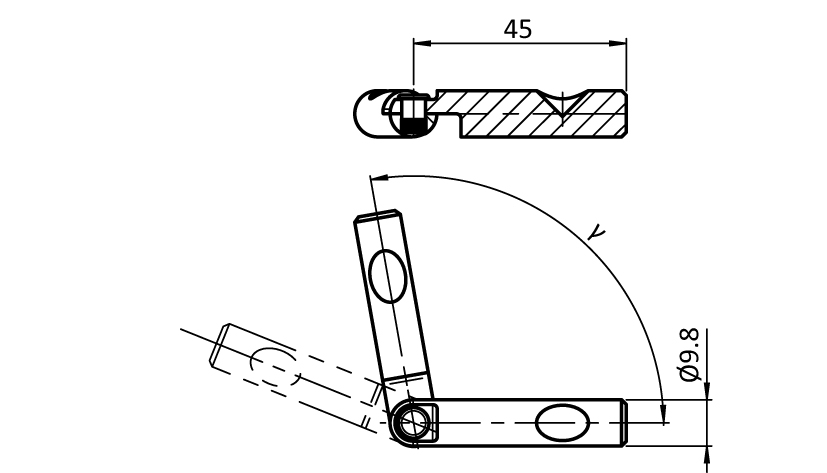

Mitre Connector B 60°-180°, Slot 10

Product information "Mitre Connector B 60°-180°, Slot 10"

Delivery Countries:
Worldwide

Description:

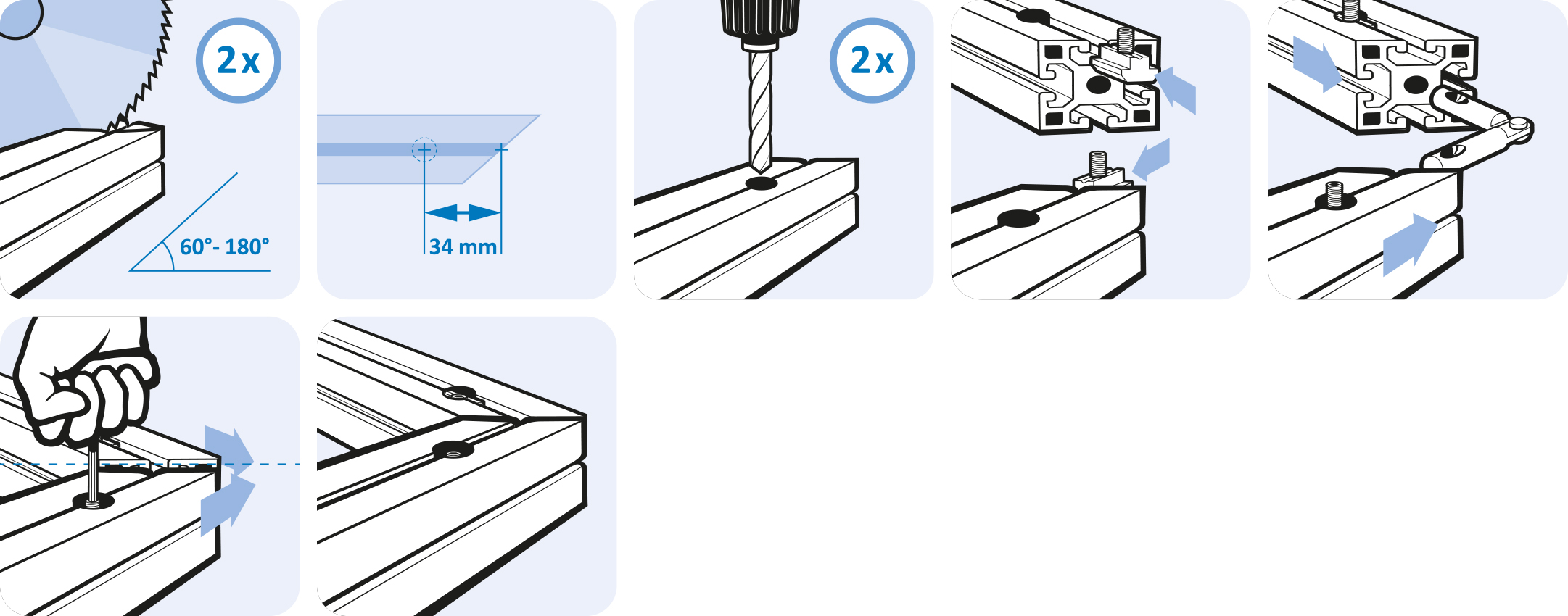

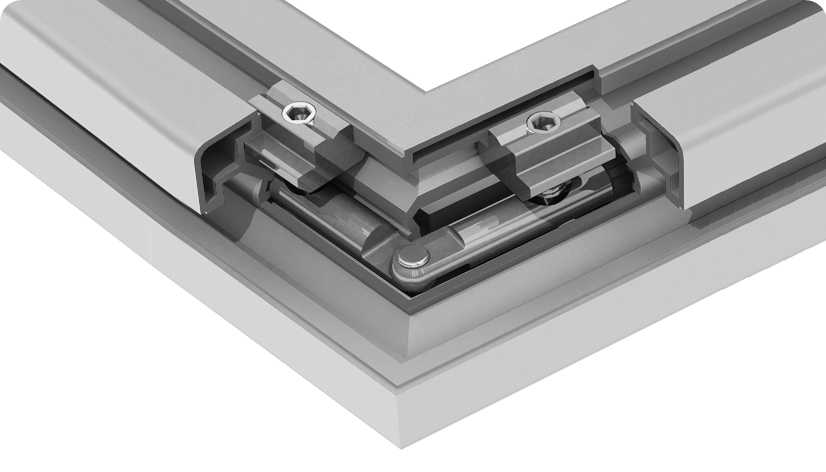

End-to-end connection of two aluminum profiles with a mitre cut (cut each γ = 60° - 90°); before the application a hole with Ø 8.2 mm in a distance of 34 mm of the profile end must be drilled; with T-slot nut and threaded pin with AF 4

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel, slot 10
Pack Quantity: 10 pieces
Weight (g): 96.0

Variants

Product ID Profile Slot N (mm)
099BG100810180 B 10
