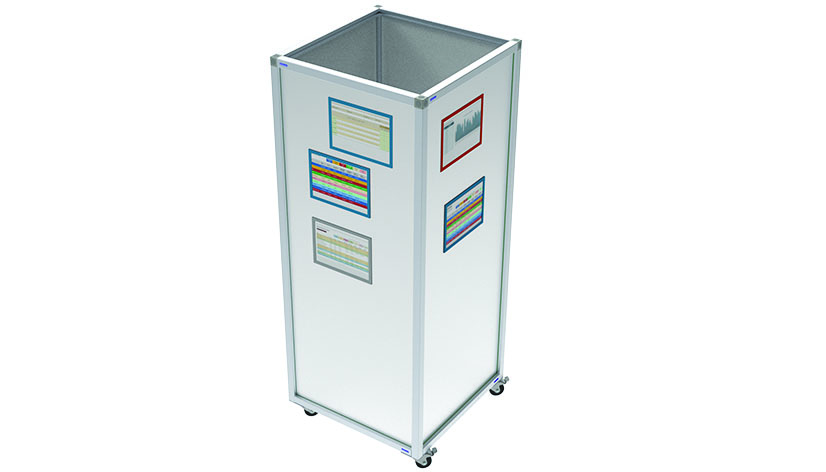

Mobile Enamel Cube

Product information "Mobile Enamel Cube"

Color:
Boards: White
Wheel body: Gray ≈ RAL 7001
Tread: Gray ≈ RAL 7031

Delivery Countries:
Worldwide

Description:
Flexible applicable cube, four-sided enamel coating for writing on, dry wipeable, magnetic, resistant enamelled surface, durable to mechanical and chemical influences;
Space saving due to square base;
Equipped with four swivel casters for moving, two of them incl. system brakes for securing against unintended movement;
Profile frame 40 x 40 mm, without slot on the front side, entirely preassembled

Material:
Boards: MDF, steel
Profile frame: Aluminum
Wheel body: Plastic PP
Tread: Plastic TPE

Specials:
Swivel casters as ESD electrostatically discharging version on request

Surface:
Boards: Enamelled
Profile frame: Anodized
Pack Quantity: 1 piece
Model: Rotatable
Weight (kg): 35.0
ECLASS 6.0: 24300304
ECLASS 7.0: 24300304
ECLASS 8.0: 24300304
ECLASS 9.0: 24300304
ECLASS 10.0: 24300304
ECLASS 11.0: 24300304
ECLASS 12.0: 24300304
ECLASS 13.0: 24300304
Zolltarifnummer: 96100000000
Customs Tariff Number Export: 96100000
ERP Number: 150777

Variants

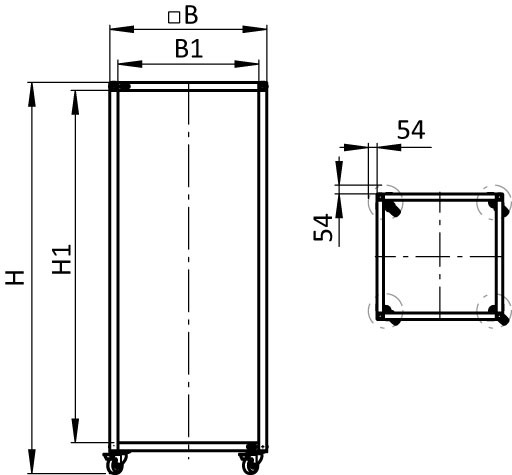

Part # H (mm) Profile B (mm) B1 (mm) H1 (mm)
02062780 1943.0 I 780.0 700.0 1750.0
