Mounting Bracket AL D28
Part #:
062AMD28M
Product information "Mounting Bracket AL D28"
Assembly Set:
6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Delivery Countries:
Worldwide
Description:

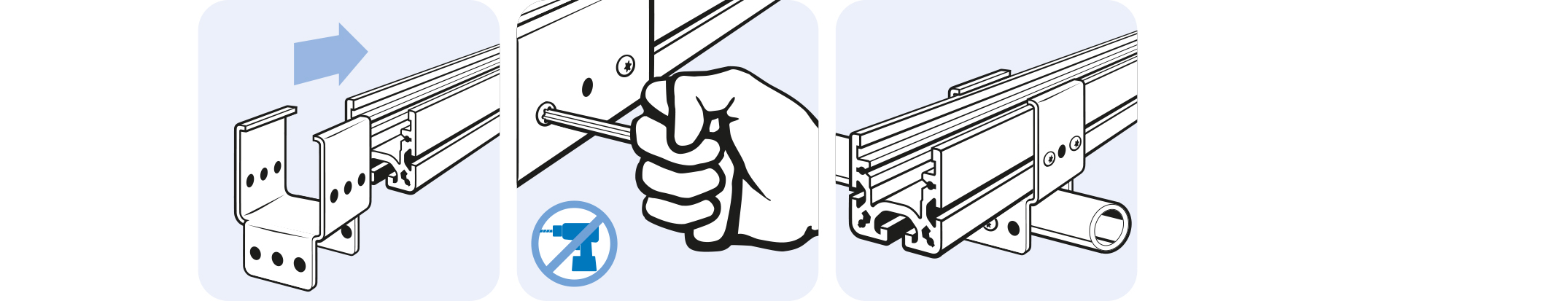

To mount and support an AL roller track profile on a crossing tubular frame profilewith Ø 28 mm outer diameter
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Delivery Countries:
Worldwide
Description:
To mount and support an AL roller track profile on a crossing tubular frame profilewith Ø 28 mm outer diameter
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
| (ECLASS 6.0): | 36120490 |
|---|---|
| (ECLASS 7.0): | 36120490 |
| (ECLASS 8.0): | 36120490 |
| (ECLASS 9.0): | 36120490 |
| (ECLASS 10.0): | 36120490 |
| (ECLASS 11.0): | 36120492 |
| (ECLASS 12.0): | 36120492 |
| (ECLASS 13.0): | 36120492 |
| Customs Tariff Number Export: | 73269098 |
| Model: | For roller tracks AL |
| Pack Quantity: | 10 pieces / 10 set |
| Weight (g): | 76.0 |
| Zolltarifnummer: | 73269098900 |
| pA Number: | 132926 |
