Mounting Bracket XST D28
Part #:
062MMD28M
Product information "Mounting Bracket XST D28"

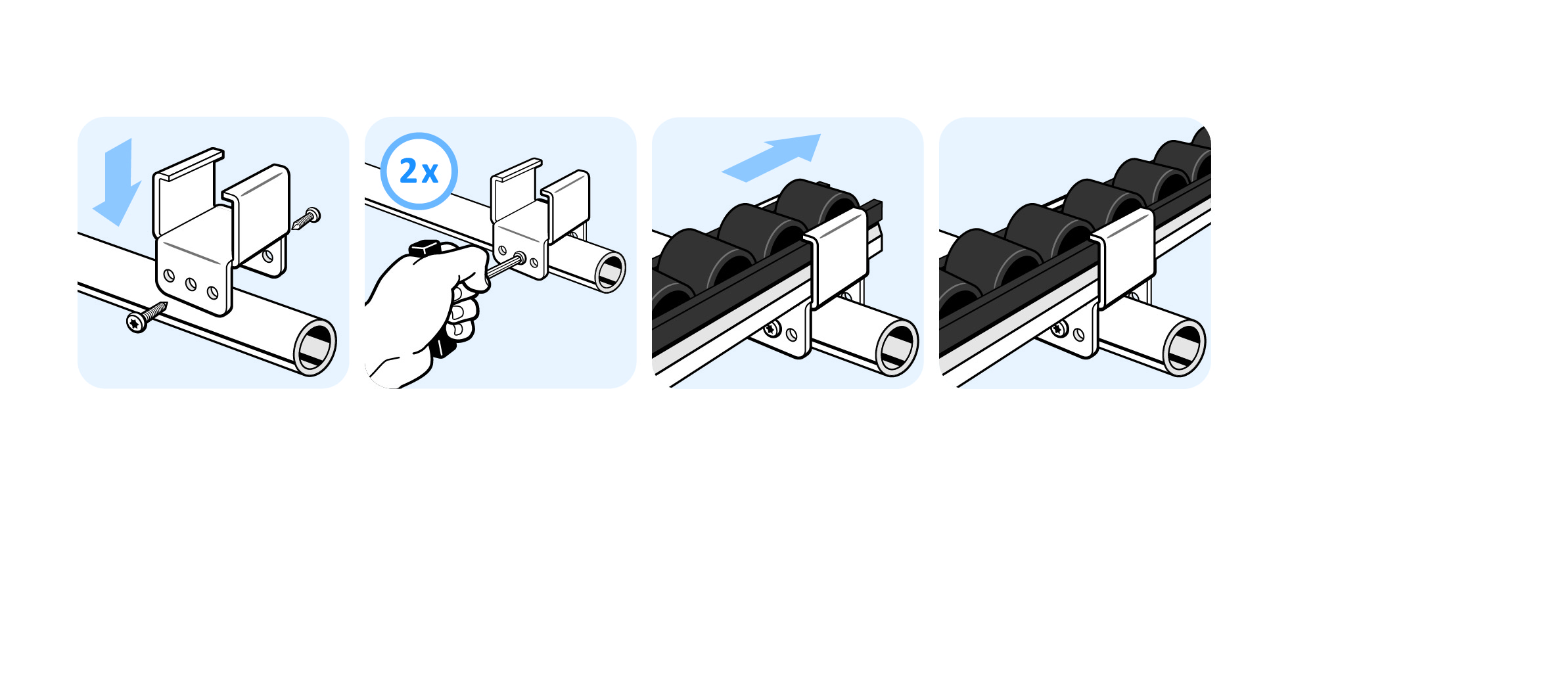

Assembly Set:
2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Delivery Countries:
Worldwide
Description:

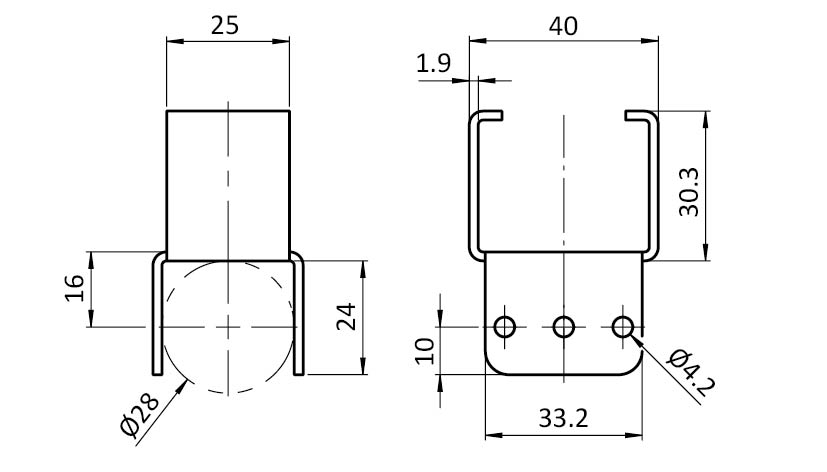

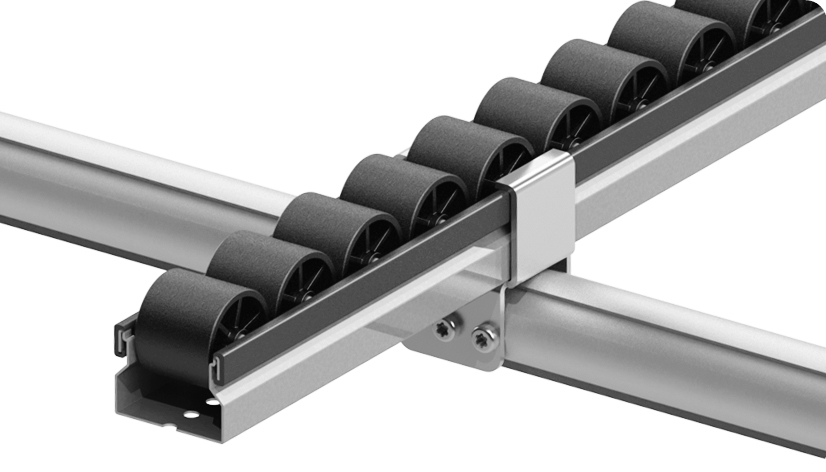

To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 28 mm outer diameter
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Delivery Countries:
Worldwide
Description:
To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 28 mm outer diameter
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
| (ECLASS 6.0): | 36120490 |
|---|---|
| (ECLASS 7.0): | 36120490 |
| (ECLASS 8.0): | 36120490 |
| (ECLASS 9.0): | 36120490 |
| (ECLASS 10.0): | 36120490 |
| (ECLASS 11.0): | 36120492 |
| (ECLASS 12.0): | 36120492 |
| (ECLASS 13.0): | 36120492 |
| Customs Tariff Number Export: | 73269098 |
| Model: | For roller tracks XST |
| Pack Quantity: | 10 pieces / 10 set |
| Weight (g): | 64.0 |
| Zolltarifnummer: | 73269098900 |
| pA Number: | 132925 |
