Mounting for Clamp Profile Connector 40 (Set)

Product information "Mounting for Clamp Profile Connector 40 (Set)"

Delivery Countries:
Worldwide

Description:

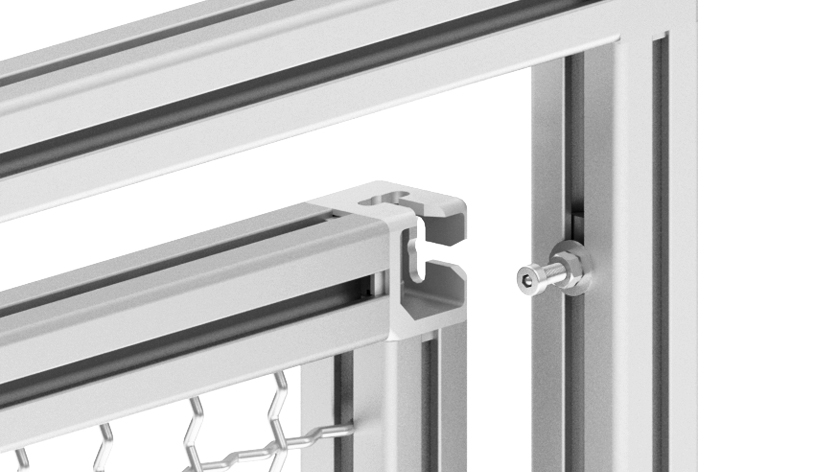

To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated

Material:
T-slot nut: Steel
Shim: Steel
Nut: Steel
Screw: Steel
Ball: Stainless steel

Set:
Mounting, completely preassembled:
1 T-slot nut - slot 8 - M6,
1 shim DIN 9021 - 6.4,
1 nut DIN 934 - M6,
1 screw DIN 7984 - M6 x 30,
1 ball Ø 4

Surface:
T-slot nut: Zinc plated
Shim: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Ball: Plain

Tip:
Compatible Clamp Profile Connector 40 (Set) see 093WWC401N08S01
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 73181595
Model: Steel, slot 8
Pack Quantity: 10 sets
Weight (g): 16.0
Zolltarifnummer: 73181595890
pA Number: 137243
