Outer Ball Connector D28 (Set)
Regular price:
€0.00
Part #:
099RV28KS01
Pack Quantity:
10 pieces
Description:

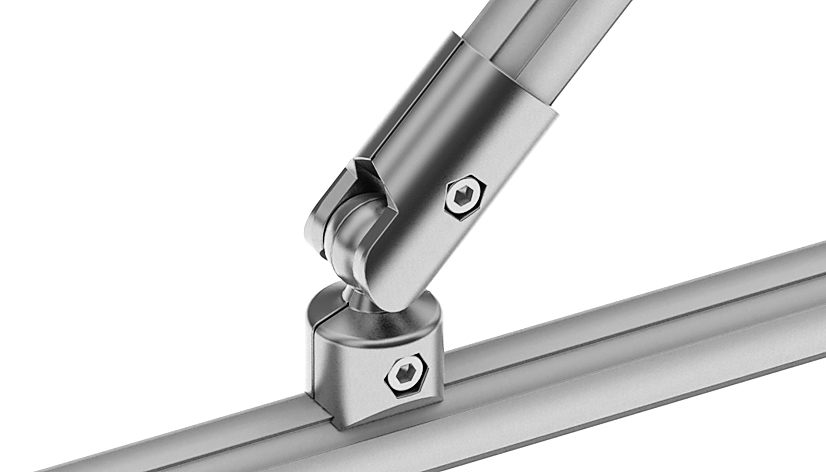

To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
4 components for outer ball connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6
Delivery Countries:
Worldwide
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
4 components for outer ball connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For tubular frame profiles |
| Weight (g): | 145.0 |
| ERP Number: | 126787 |
Product Portraits
Classifications
- Zolltarifnummer
- 76169910990
Certificates
