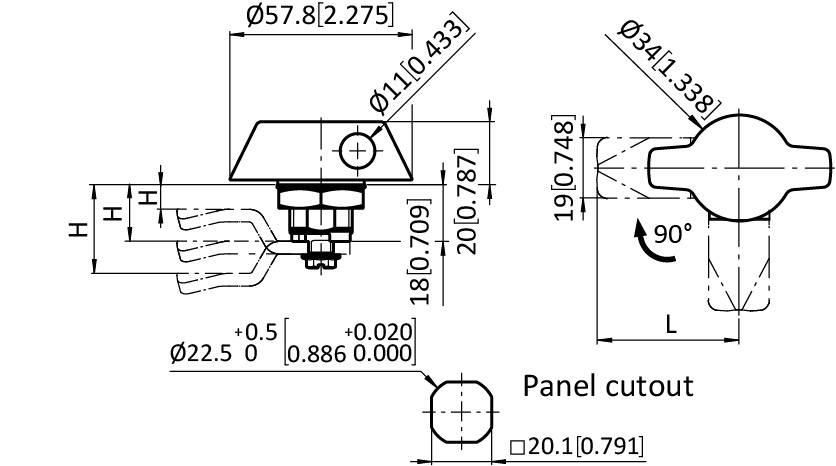

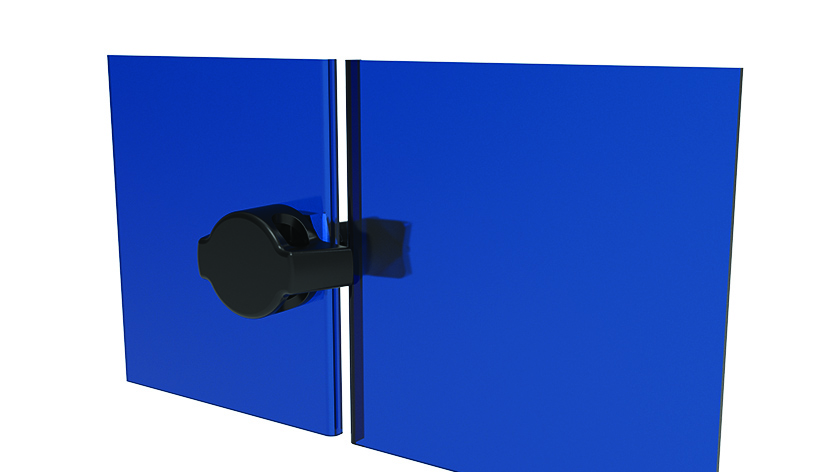

Padlock Compatible Wing Knob 58 Quarter Turn Lock 22.5, Single Hole
Product number:
0810182S01
Product information "Padlock Compatible Wing Knob 58 Quarter Turn Lock 22.5, Single Hole"
Color:
Wing knob insert: Black
Housing: Black
Seal: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:
For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories
Material:
Wing knob insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Surface:
Wing knob insert: Powder coated
Housing: Powder coated
Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Wing knob insert: Black
Housing: Black
Seal: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:
For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories
Material:
Wing knob insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Surface:
Wing knob insert: Powder coated
Housing: Powder coated
Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| (ECLASS 6.0): | 23199090 |
|---|---|
| (ECLASS 7.0): | 23199090 |
| (ECLASS 8.0): | 23199090 |
| (ECLASS 9.0): | 23199090 |
| (ECLASS 10.0): | 23199090 |
| (ECLASS 11.0): | 23199090 |
| (ECLASS 12.0): | 23199090 |
| (ECLASS 13.0): | 23199090 |
| Customs Tariff Number Export: | 79070000 |
| Door Version: | Right, left |
| IP Rating: | IP65 / NEMA 4 |
| Pack Quantity: | 10 pieces |
| Weight (g): | 137.7 |
| Zolltarifnummer: | 79070000900 |
| pA Number: | 142708 |
