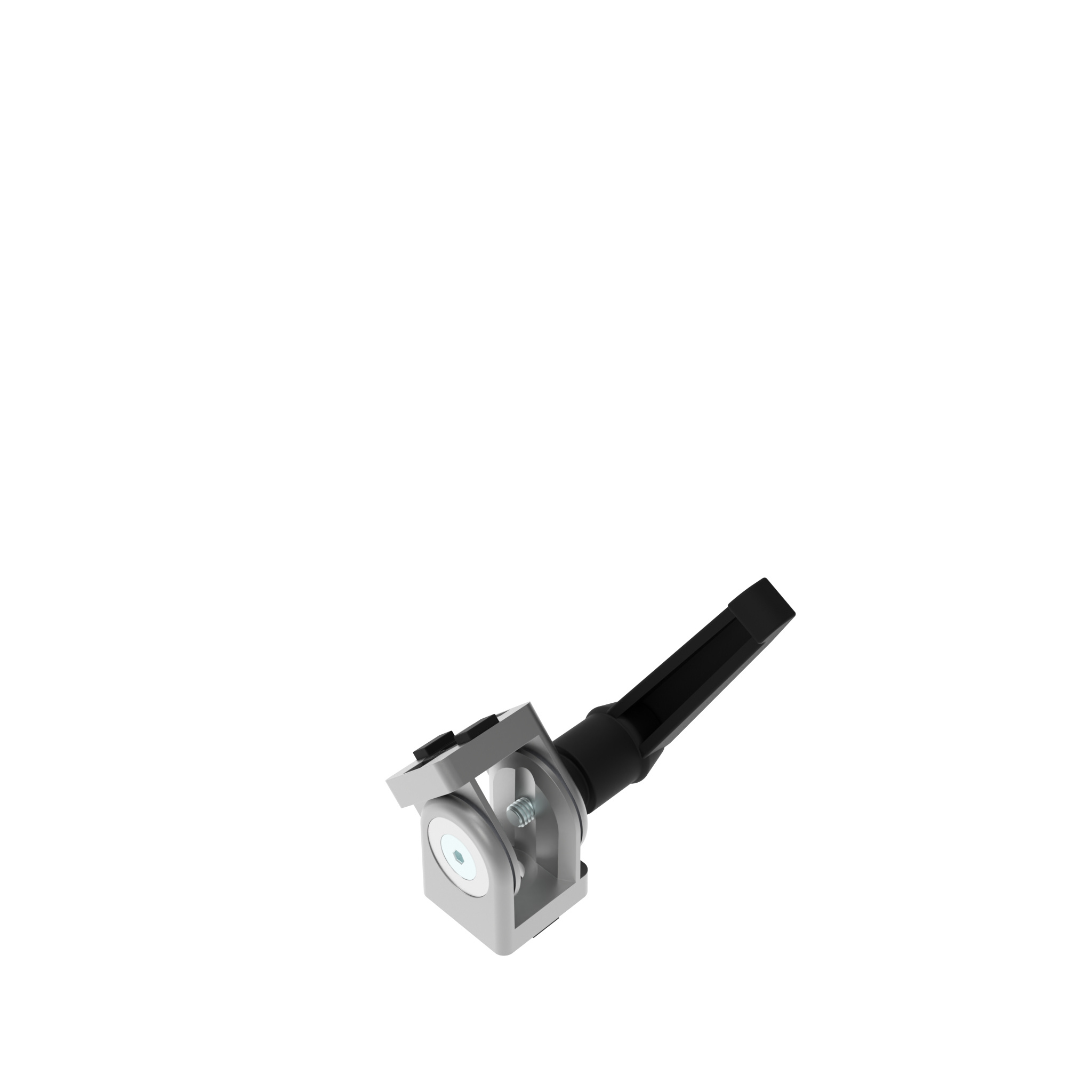

Pivot Joint 20 with Locking Lever

Product information "Pivot Joint 20 with Locking Lever"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

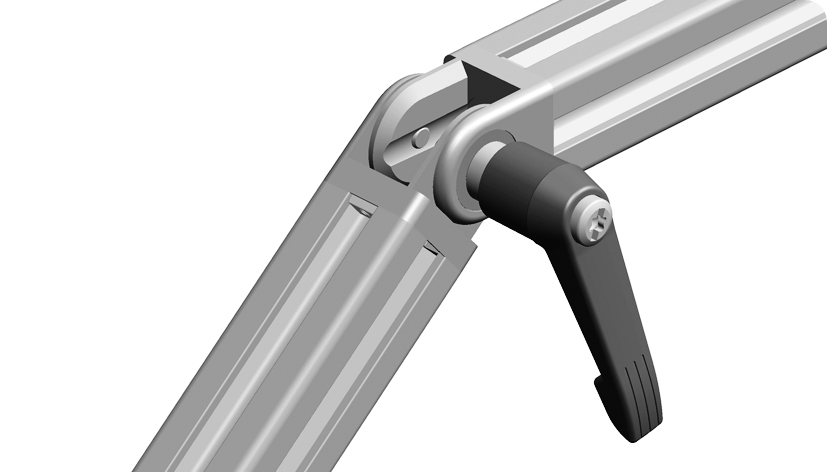

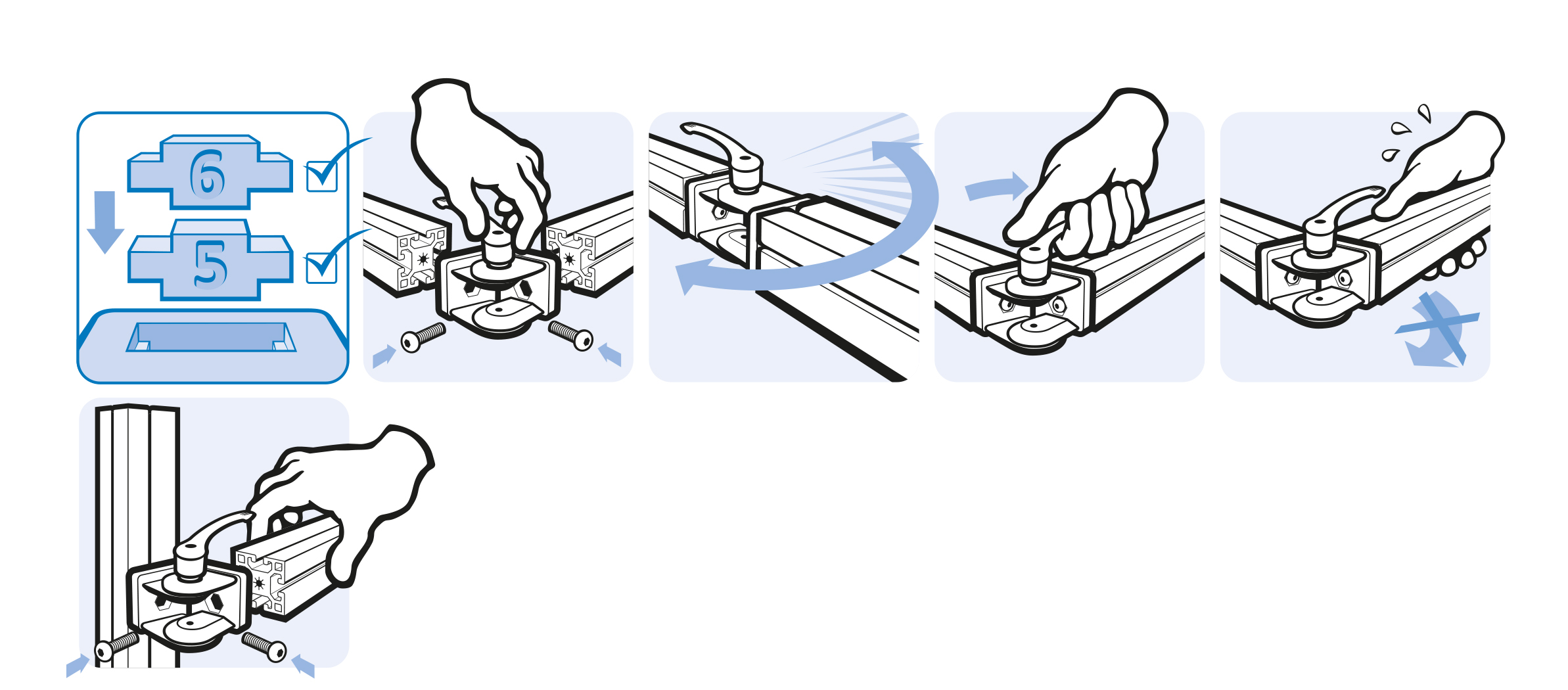

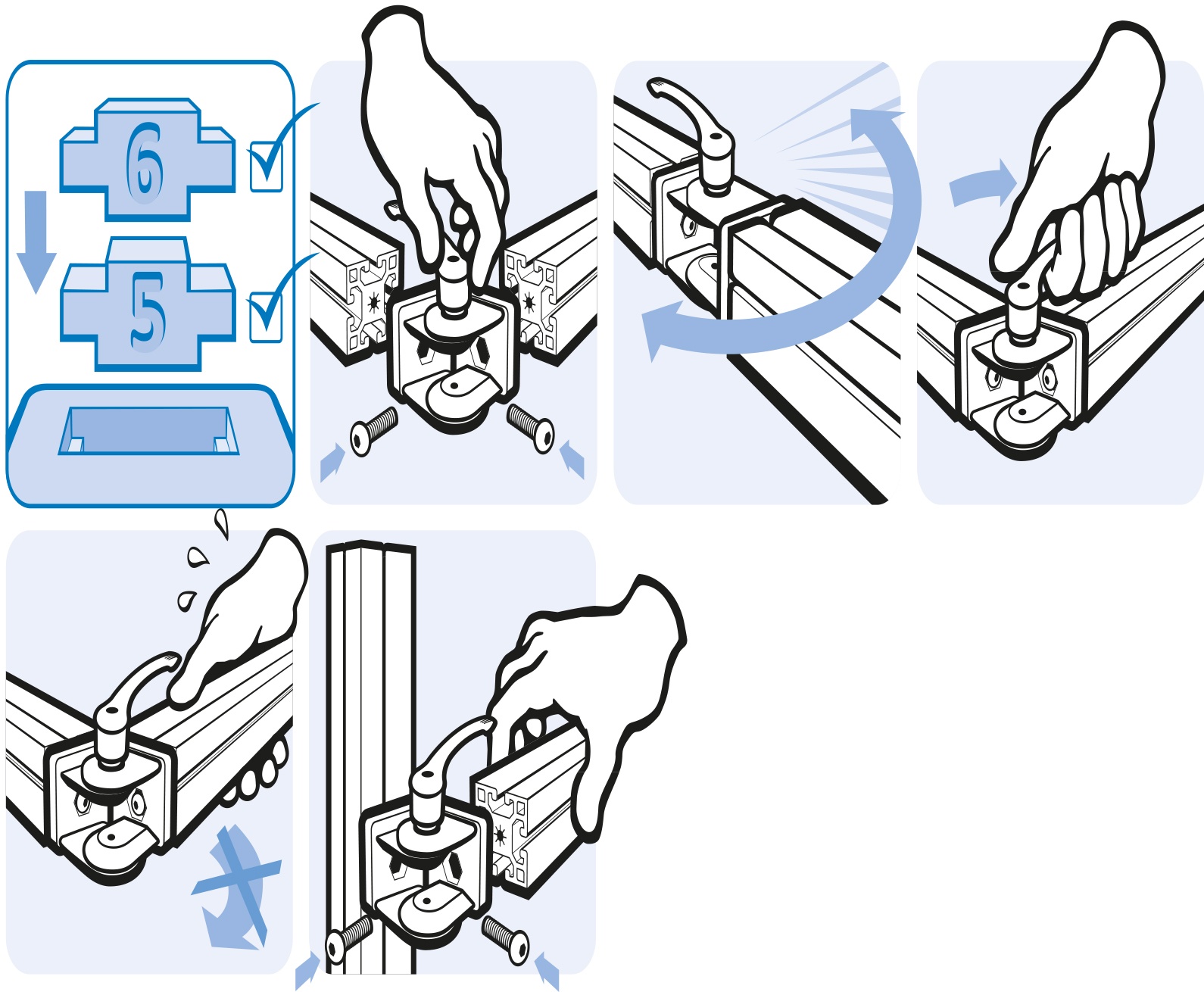

For connection of two profiles or panels, with attachment at any angle, with separate slot fixing for slot 5 and slot 6; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Joint: Aluminum die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced

Surface:
Powder coated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: Aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 25.0

Variants

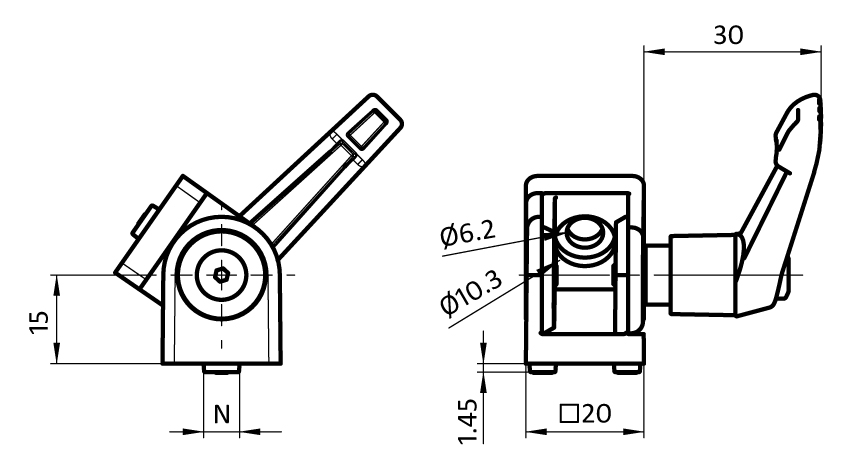

Product ID Slot N (mm) Opening Angle
093GAF20AN 5 / 6 182°
