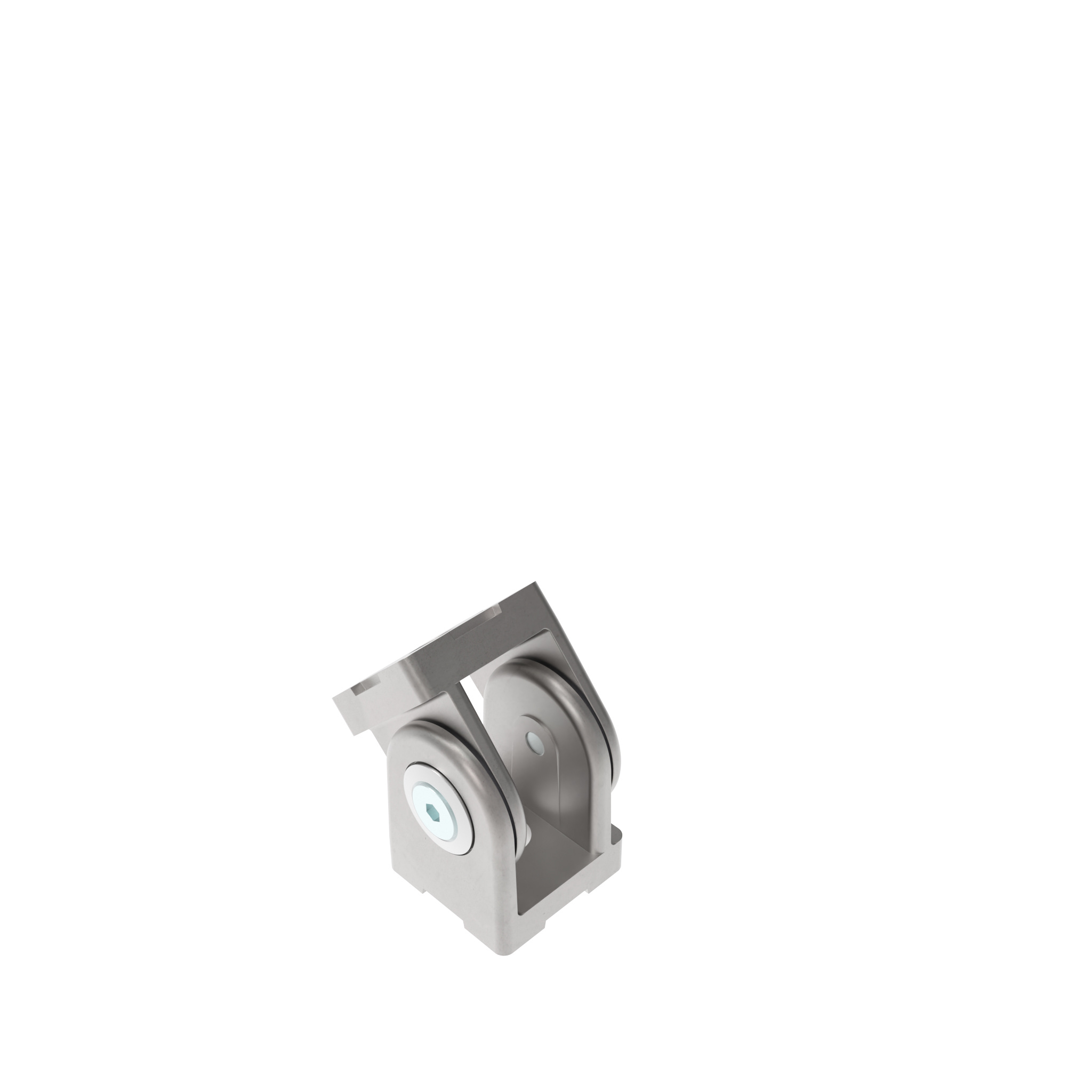

Pivot Joint 28 - 1.1"

Product information "Pivot Joint 28 - 1.1""

Color:
Alu color

Delivery Countries:
Worldwide

Description:

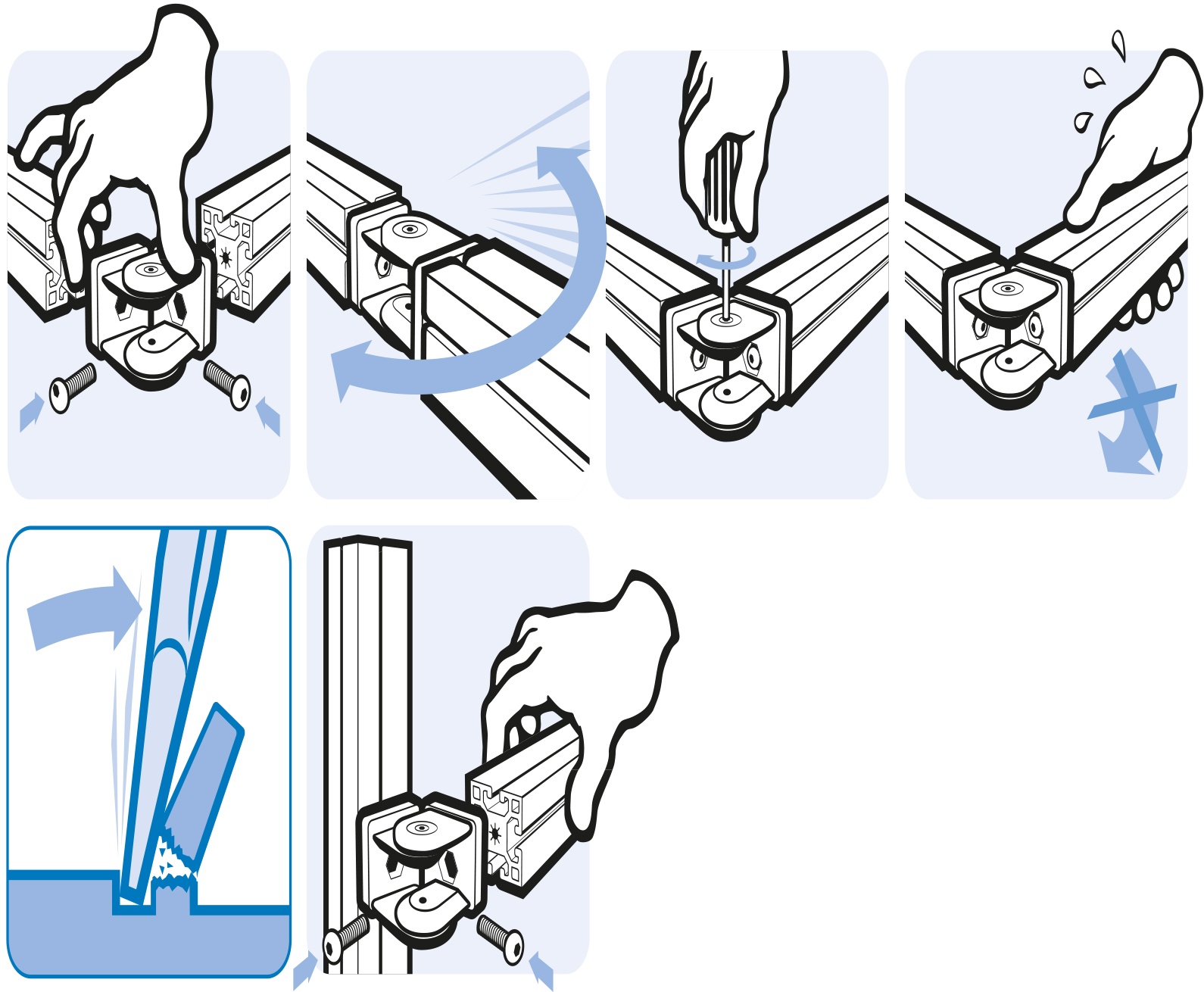

To make a pivoting connection between two profiles or panels; fixed locating pins for slot 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Laquered

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: With adjustable friction, zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 128.0

Variants

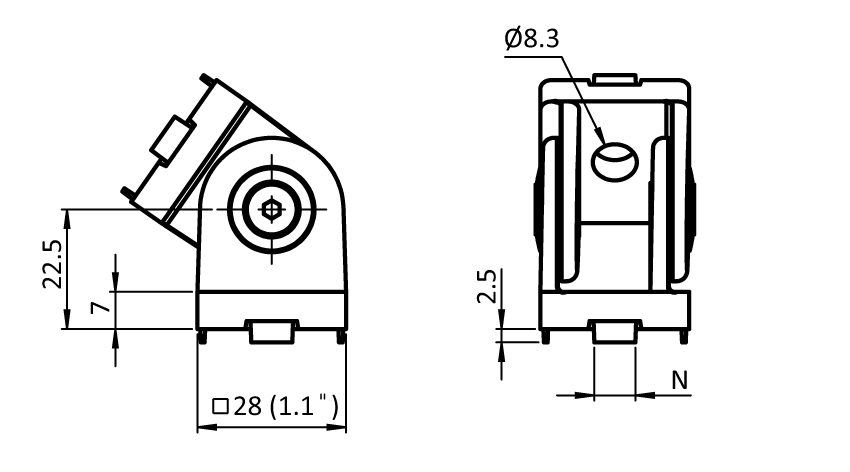

Product ID Opening Angle Slot N (mm)
093G28A 190°
093G28AN08 190° 8
