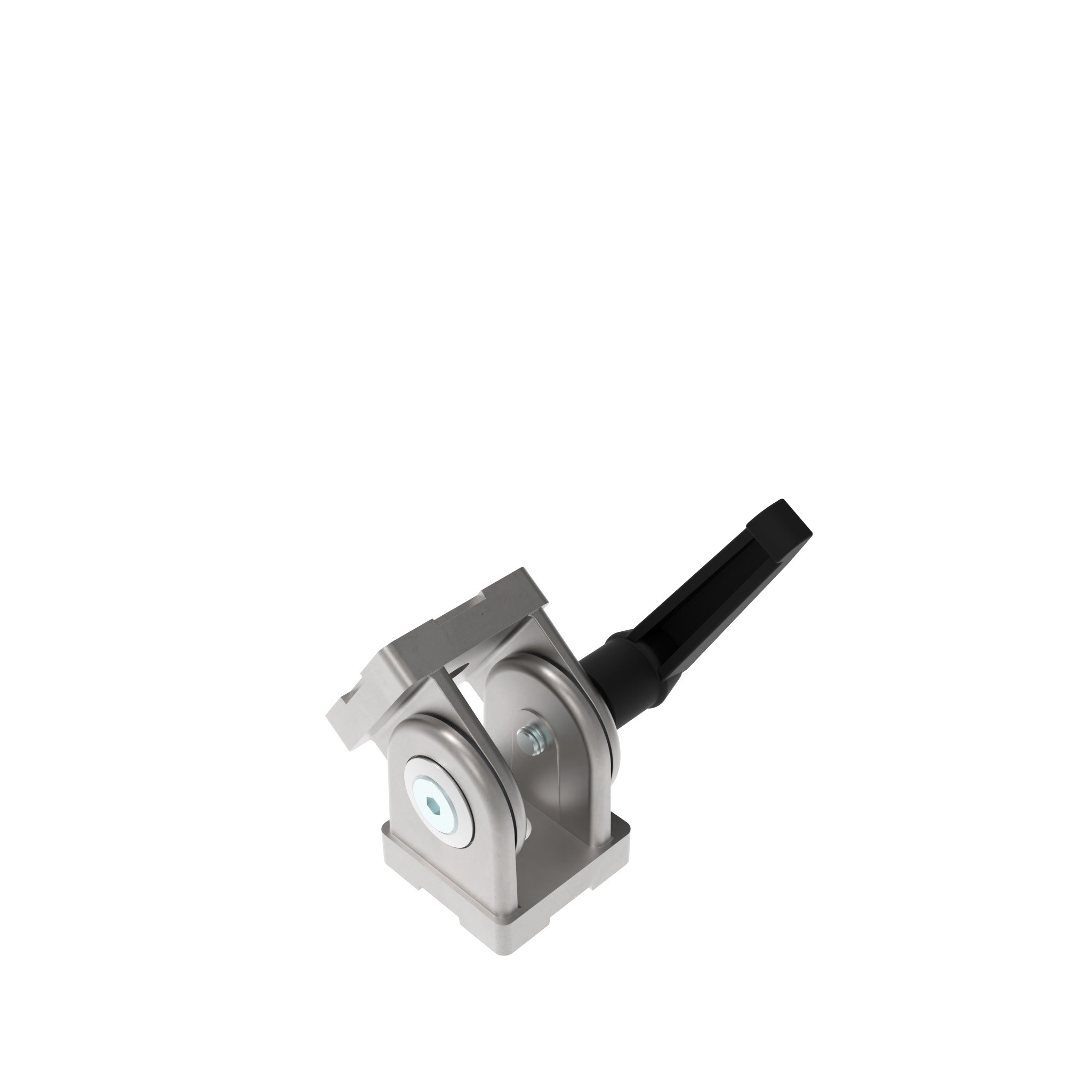

Pivot Joint 30 with Locking Lever

Product information "Pivot Joint 30 with Locking Lever"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

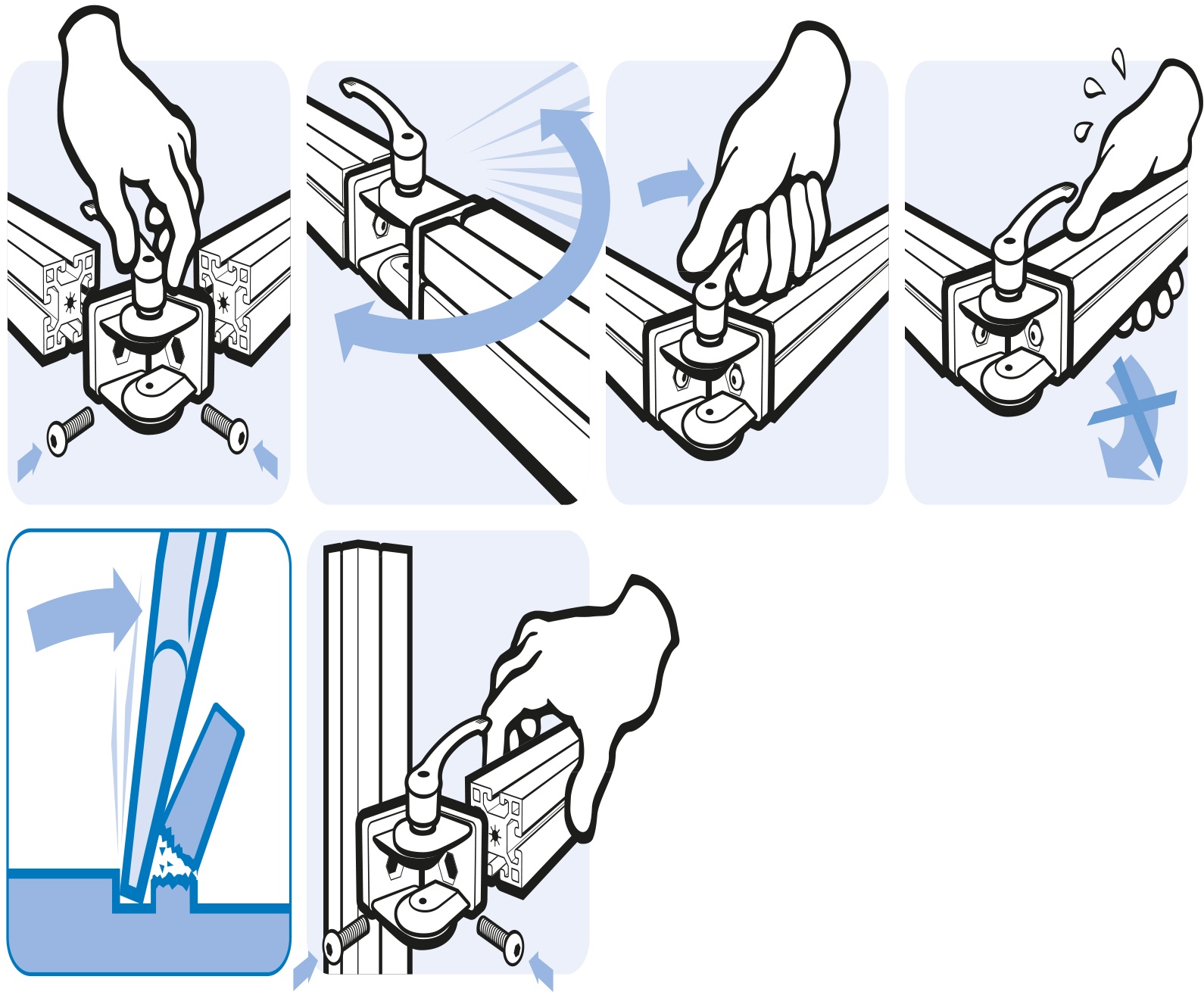

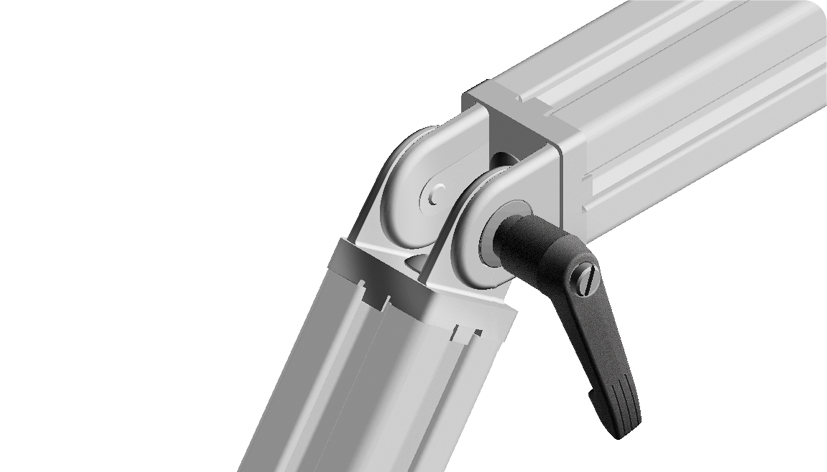

To make a pivoting connection between 2 profiles or panels which can be fixed at any angle; fixed locating pins for slot 8 optional; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Joint: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: Zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 156.0

Variants

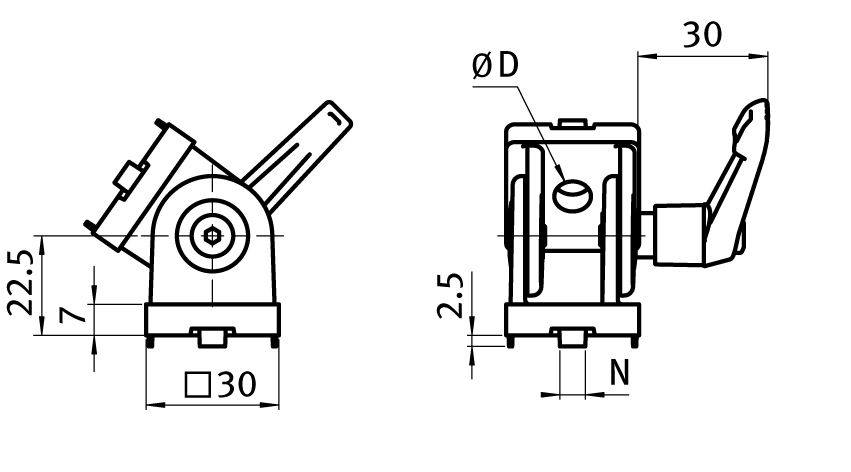

Product ID ØD (mm) Opening Angle Slot N (mm)
093GF30A 8.3 182°
093GF30AN06 6.6 182° 6
093GF30AN08 8.3 182° 8
