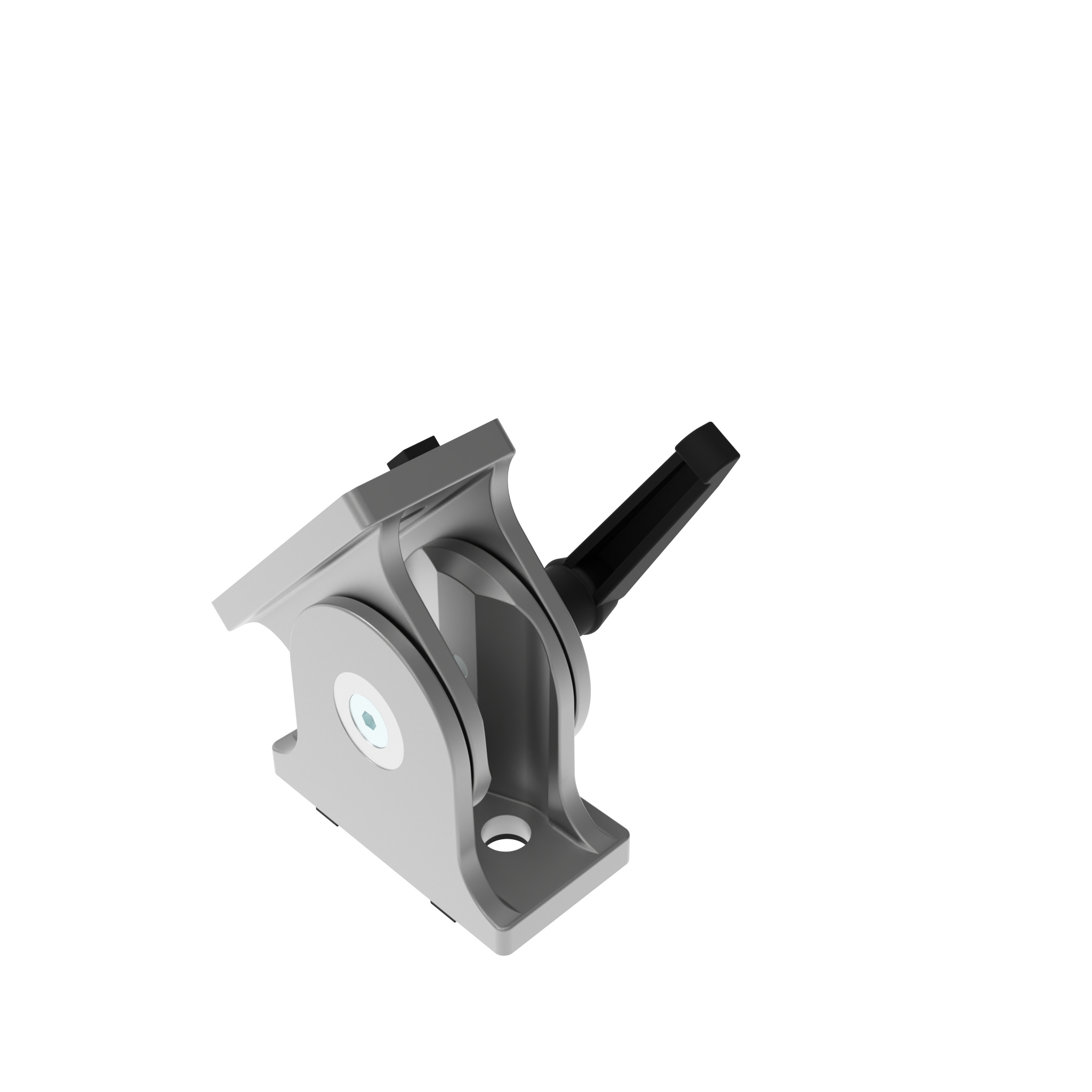

Pivot Joint 30 x 60 with Locking Lever

Product information "Pivot Joint 30 x 60 with Locking Lever"

Color:
Alu color

Delivery Countries:
Worldwide

Description:
For connection of two profiles or panels, with attachment at any angle, with separate slot fixing for slot 6 and slot 8; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Joint: Aluminum die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: Aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 143.0

Variants

Product ID Opening Angle Slot N (mm)
093GAF3060A 158°
093GAF3060AN06 158° 6
093GAF3060AN08 158° 8
