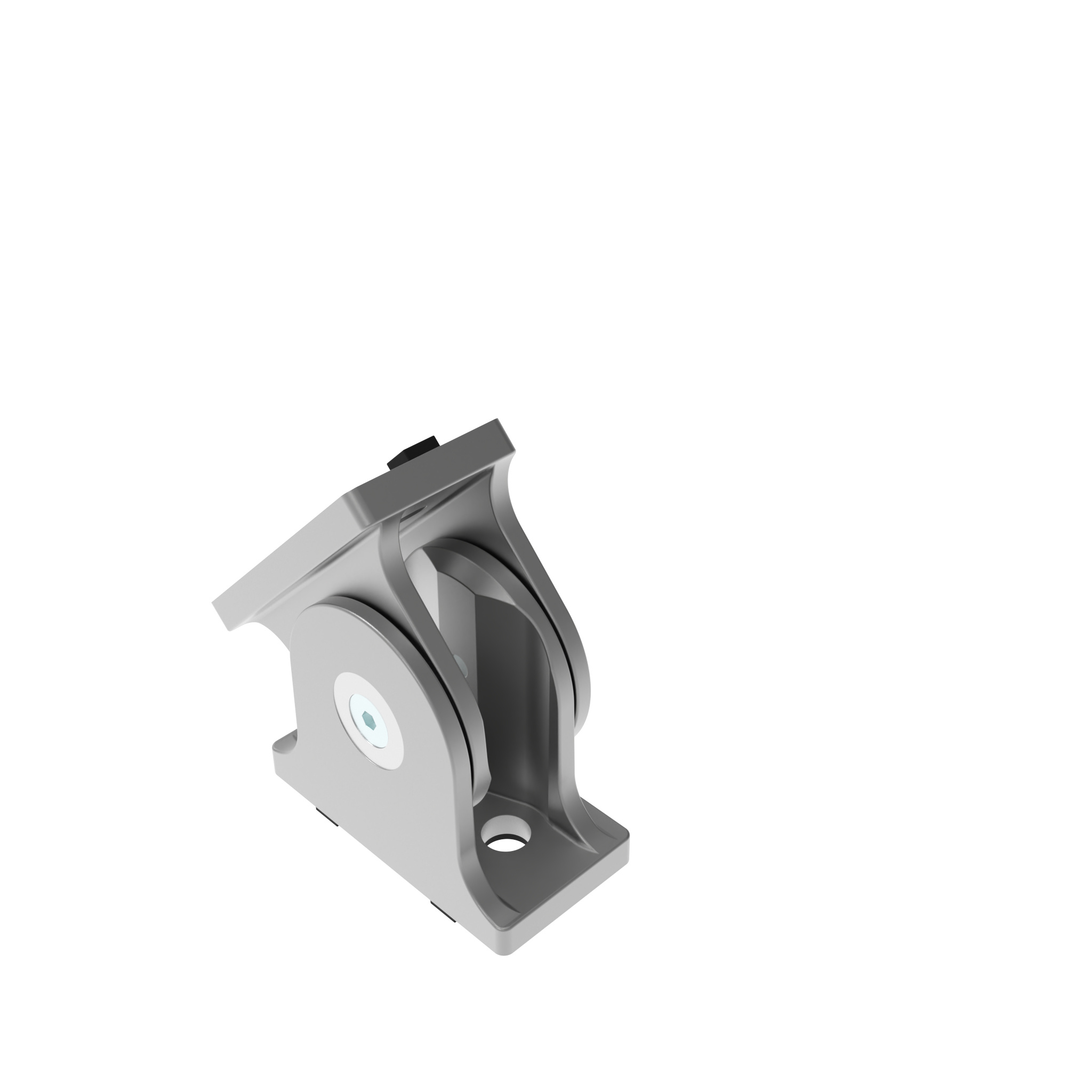

Pivot Joint 30 x 60

Product information "Pivot Joint 30 x 60"

Color:
Alu color

Delivery Countries:
Worldwide

Description:
To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 6 and 8; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: With adjustable friction, aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 126.2

Variants

Product ID Opening Angle Slot N (mm)
093GA3060A 158°
093GA3060AN06 158° 6
093GA3060AN08 158° 8
