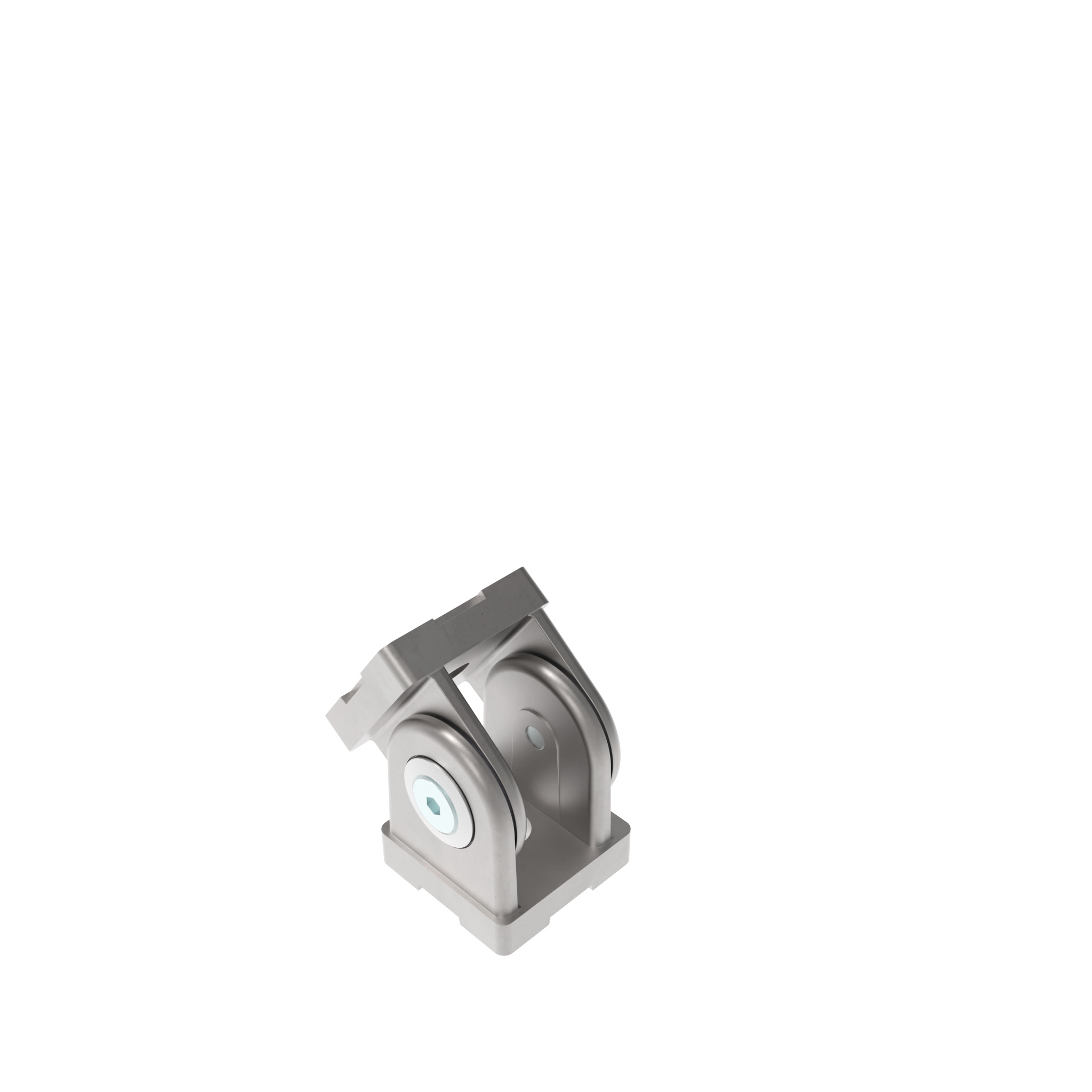

Pivot Joint 30

Product information "Pivot Joint 30"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

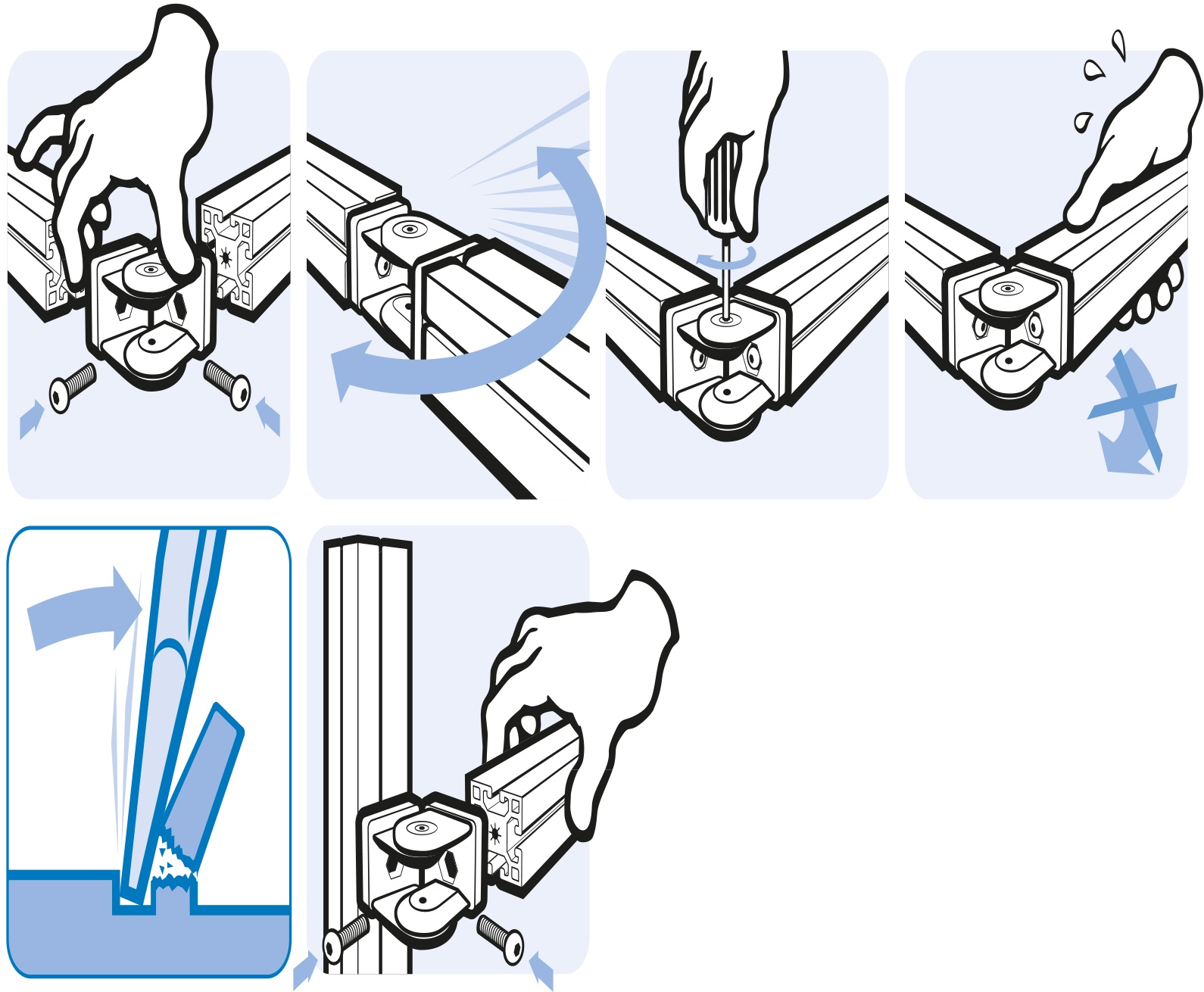

To make a pivoting connection between 2 profiles or panels, fixed locating pins for slot 6 or 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: With adjustable friction, zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 134.0

Variants

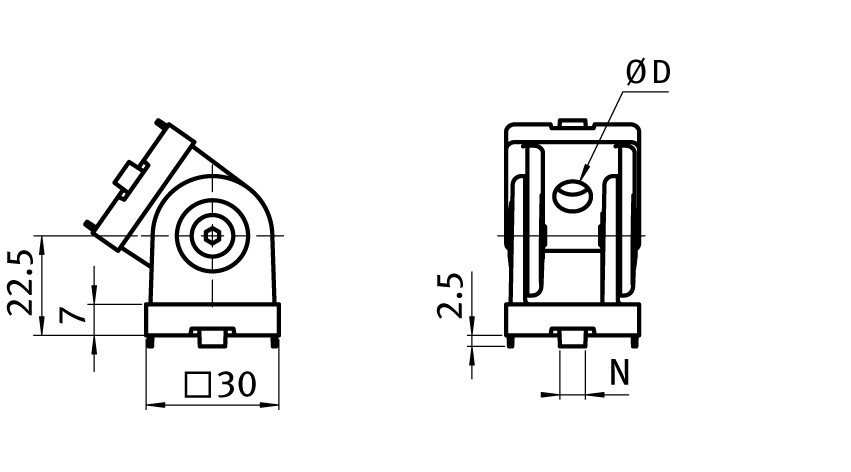

Product ID Opening Angle ØD (mm) Slot N (mm)
093G30A 183° 8.3
093G30AN06 183° 6.6 6
093G30AN08 183° 8.3 8
