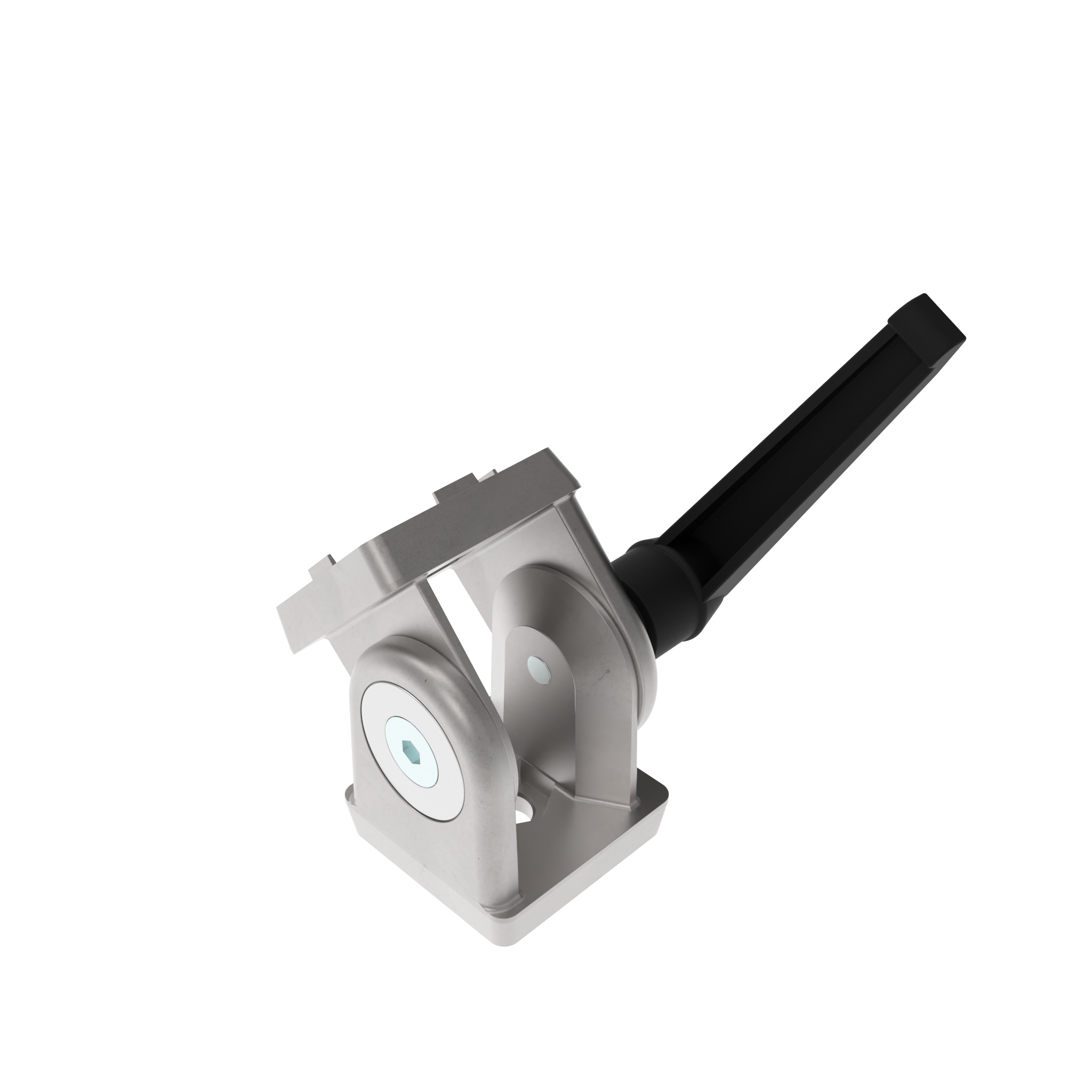

Pivot Joint 38 - 1.5" with Locking Lever

Product information "Pivot Joint 38 - 1.5" with Locking Lever"

Color:
Alu color

Delivery Countries:
Worldwide

Description:
To make a pivoting connection between 2 profiles or panels which can be fixed at any angle; fixed locating pins for slot 8 optional; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Joint: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: Zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 365.1

Variants

Product ID Slot N (mm) Opening Angle
093GF38A 190°
093GF38AN08 8 190°
