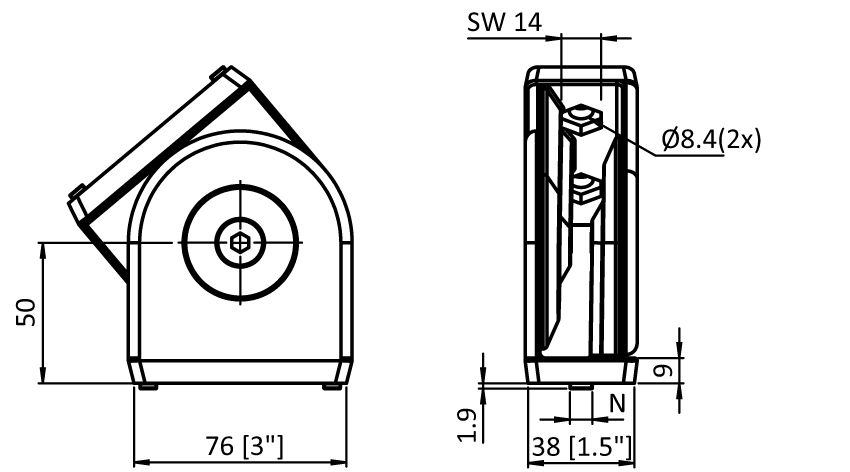

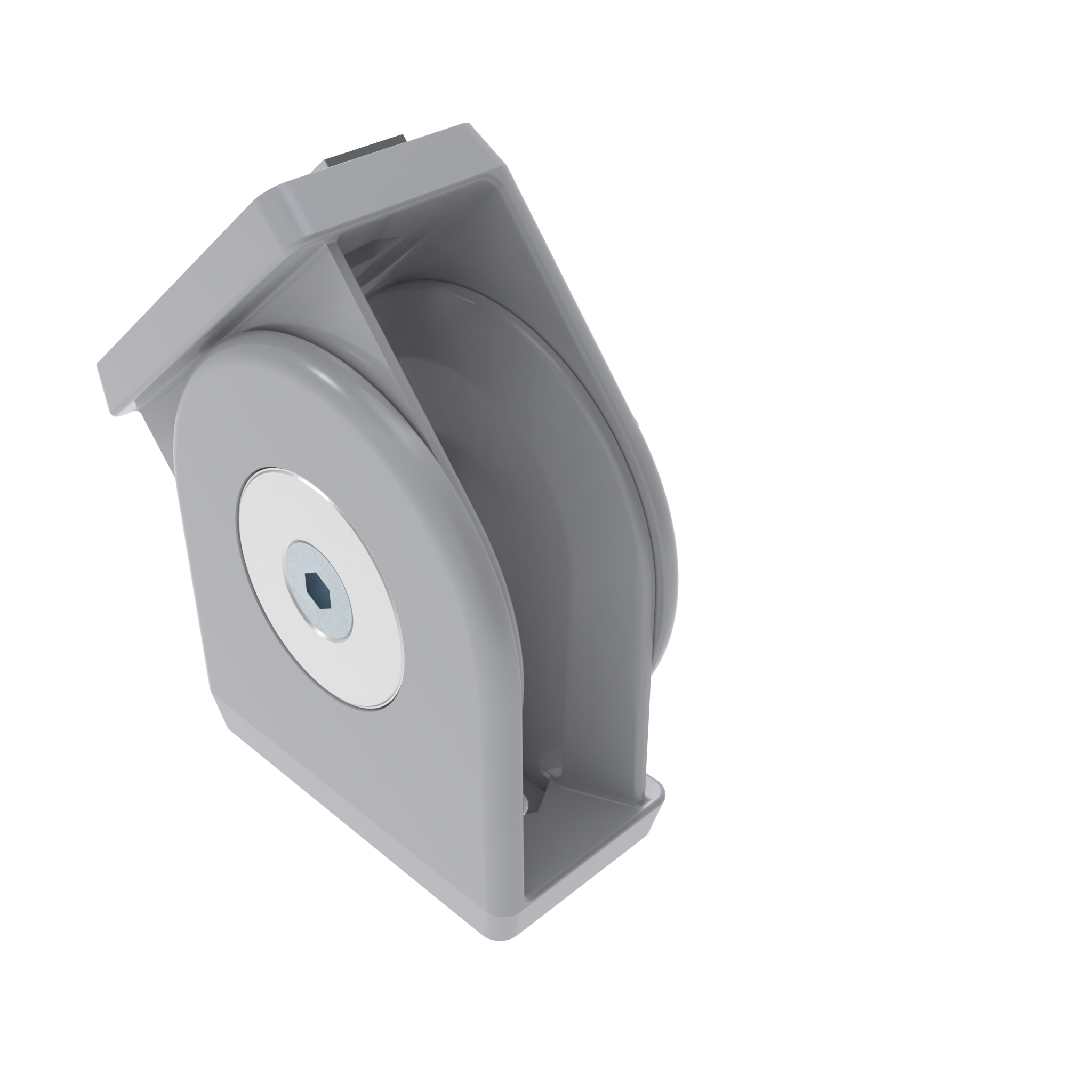

Pivot Joint 38 x 76 - 1.5" x 3"

Product information "Pivot Joint 38 x 76 - 1.5" x 3""

Color:
Alu color

Delivery Countries:
Worldwide

Description:

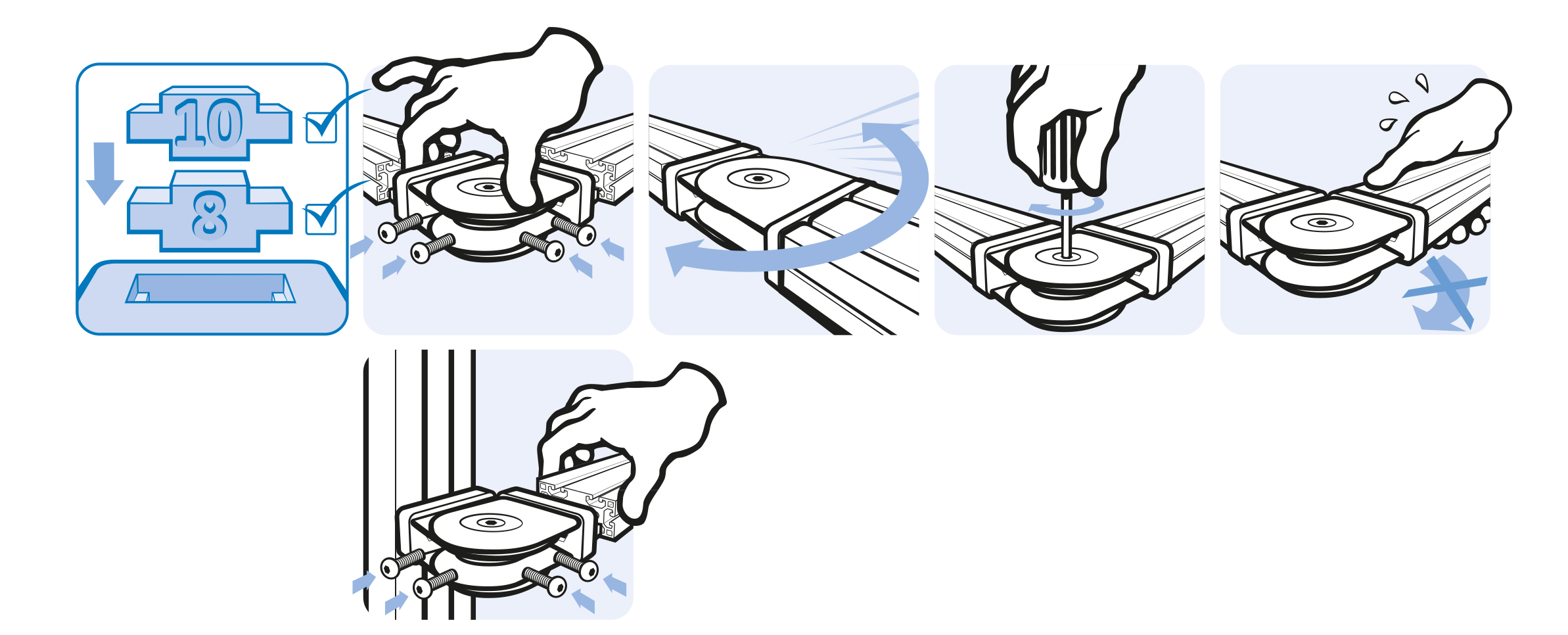

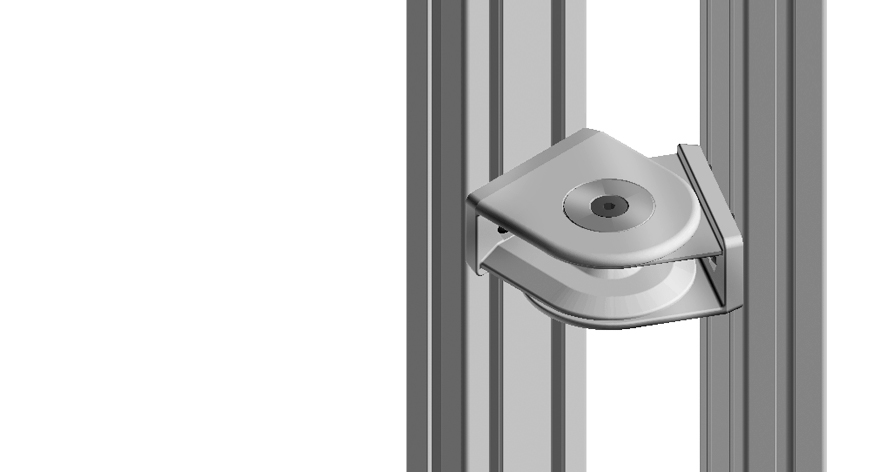

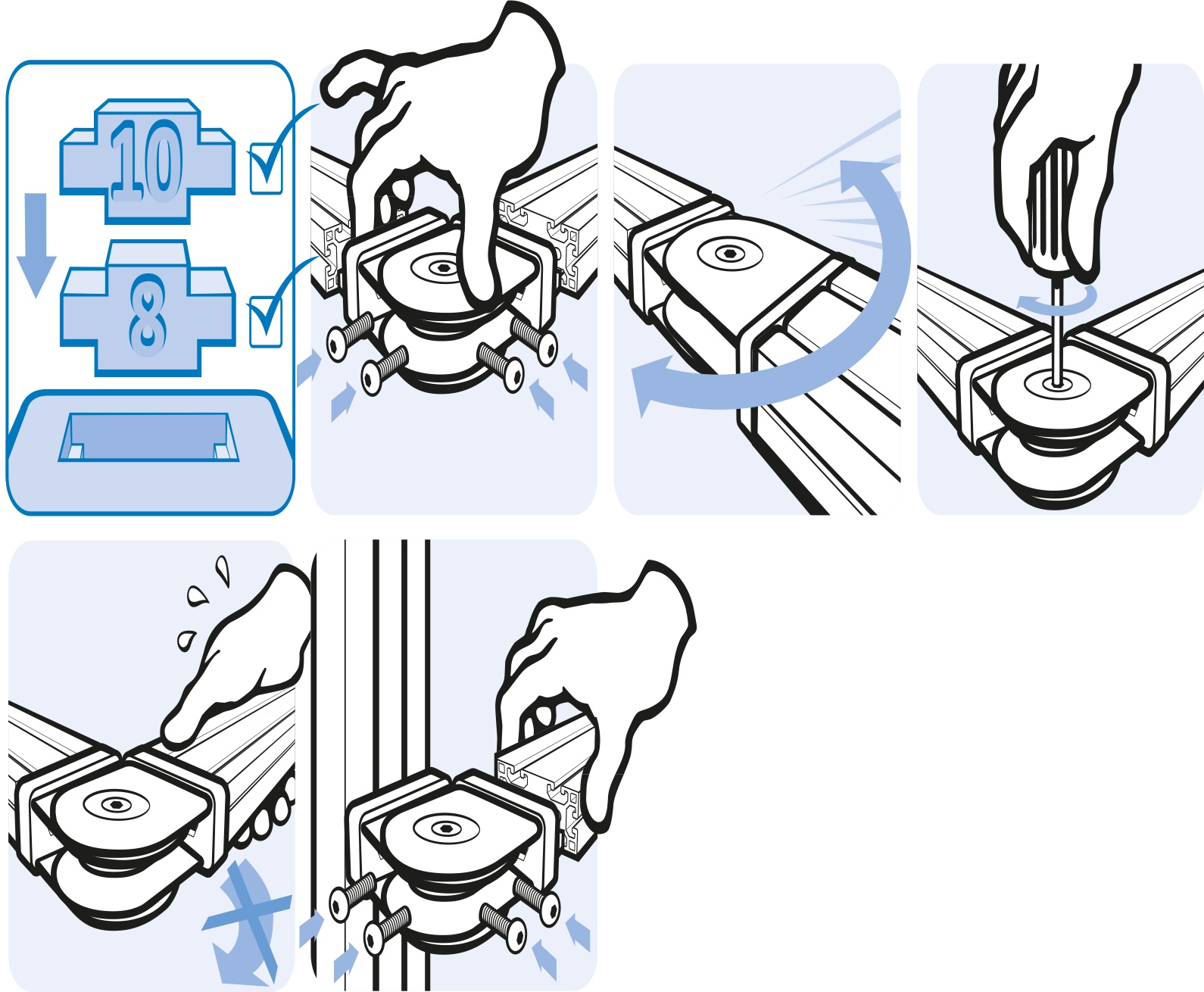

To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: With adjustable friction, zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 947.0

Variants

Product ID Slot N (mm) Opening Angle
093G3876AN 8 / 10 184°
