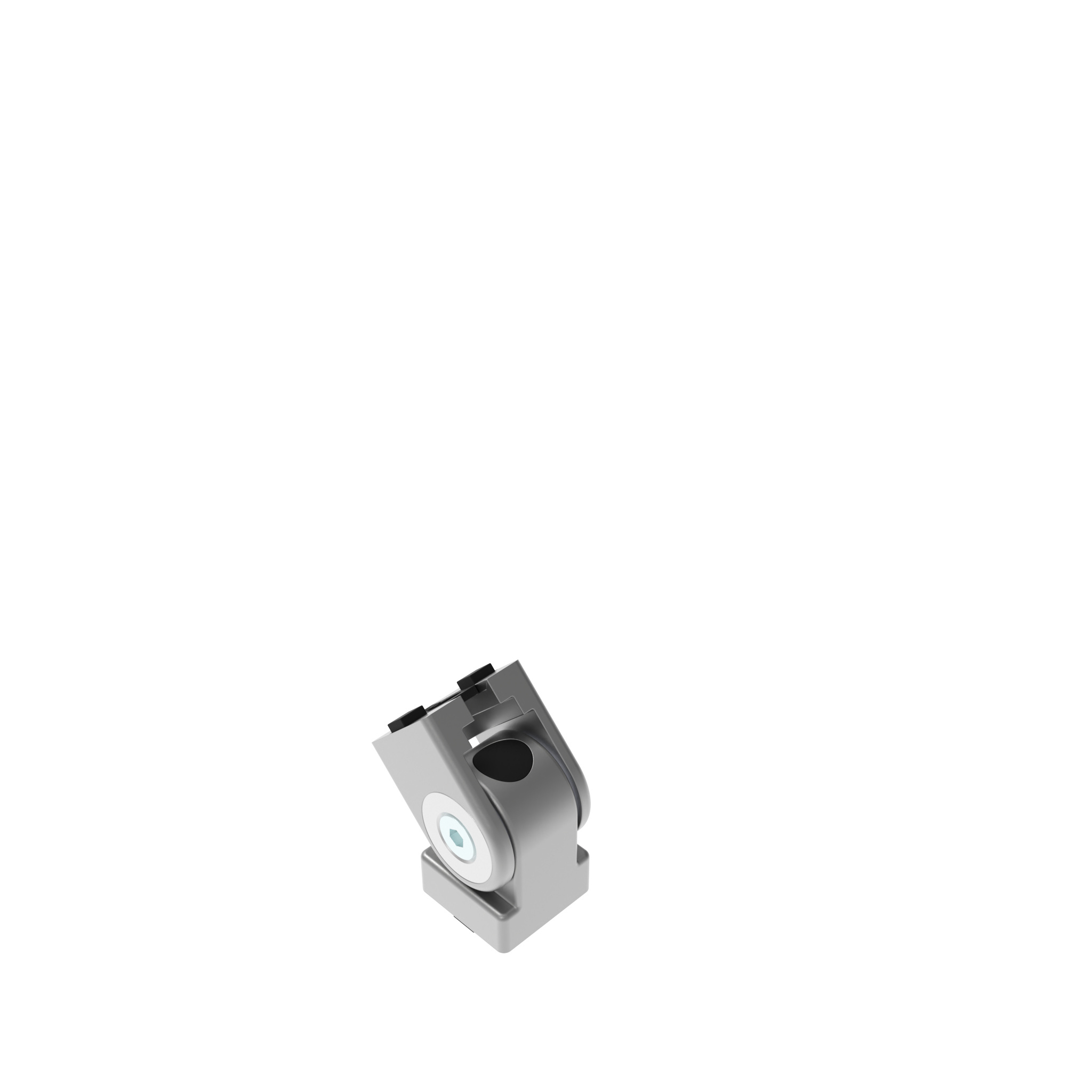

Pivot Joint B 20
Regular price:
€0.00
Part #:
093GAB20AN05
Pack Quantity:
10 pieces
Product information "Pivot Joint B 20"
Color:
Alu color
Delivery Countries:
Worldwide
Description:

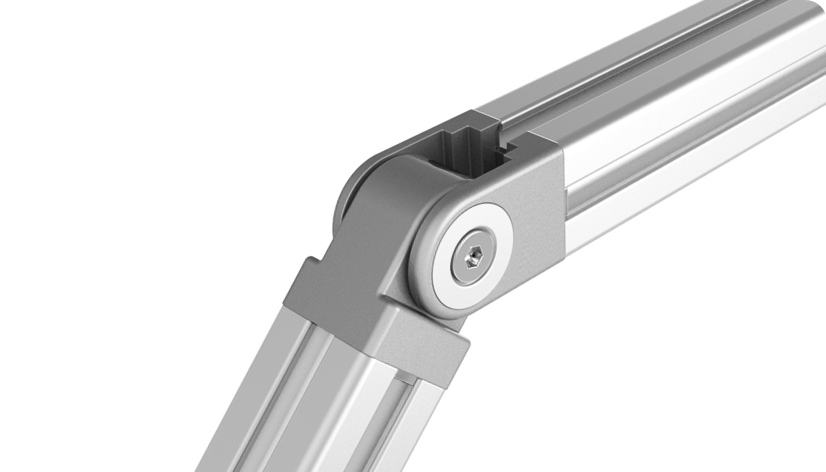

For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
Material:
Aluminum die-cast
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
Tip:

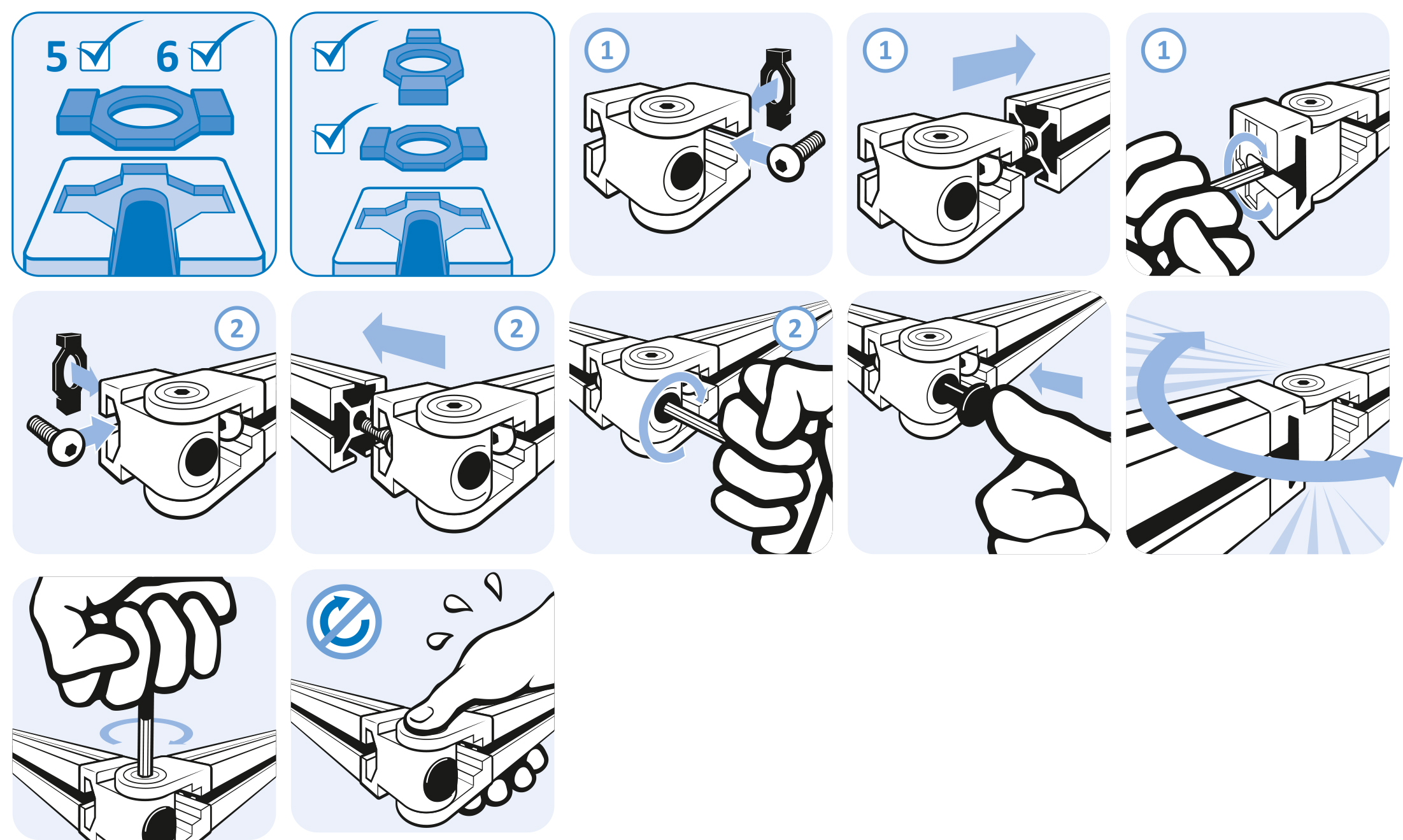

Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.
Alu color
Delivery Countries:
Worldwide
Description:
For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
Material:
Aluminum die-cast
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
Tip:
Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.

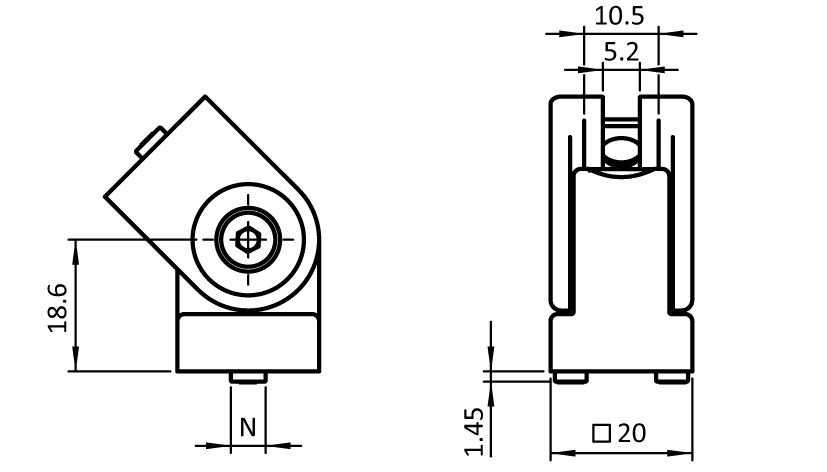

| Profile Type: | Profile Type I |
|---|---|
| Slot Size: | Slot 5 |
| Pack Quantity: | 10 pieces |
| Model: | Bearing block, with adjustable friction, aluminum die-cast |
| Weight (g): | 33.0 |
| ERP Number: | 134579 |
Classifications
- ECLASS 6.0
- 23360301
- ECLASS 7.0
- 23360301
- ECLASS 8.0
- 23360301
- ECLASS 9.0
- 23360301
- ECLASS 10.0
- 23360301
- ECLASS 11.0
- 23360301
- ECLASS 12.0
- 23360301
- ECLASS 13.0
- 23360301
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
