Plastic Combi Hinge 20 MINI, Detachable

Product information "Plastic Combi Hinge 20 MINI, Detachable"

Color:
Black

Delivery Countries:
Worldwide

Description:

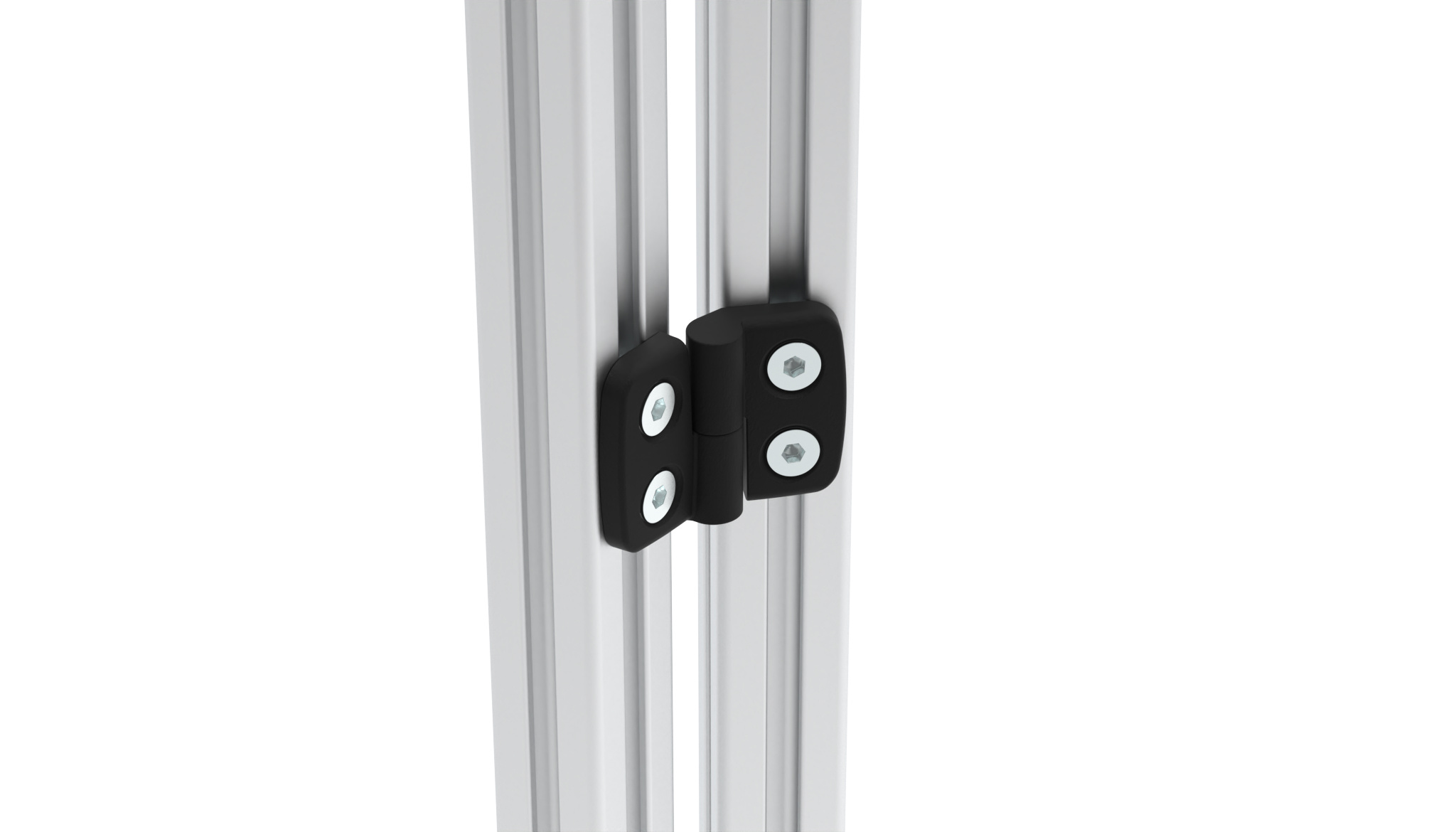

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 39263000
Fastening: From the front, using M4 countersunk screws

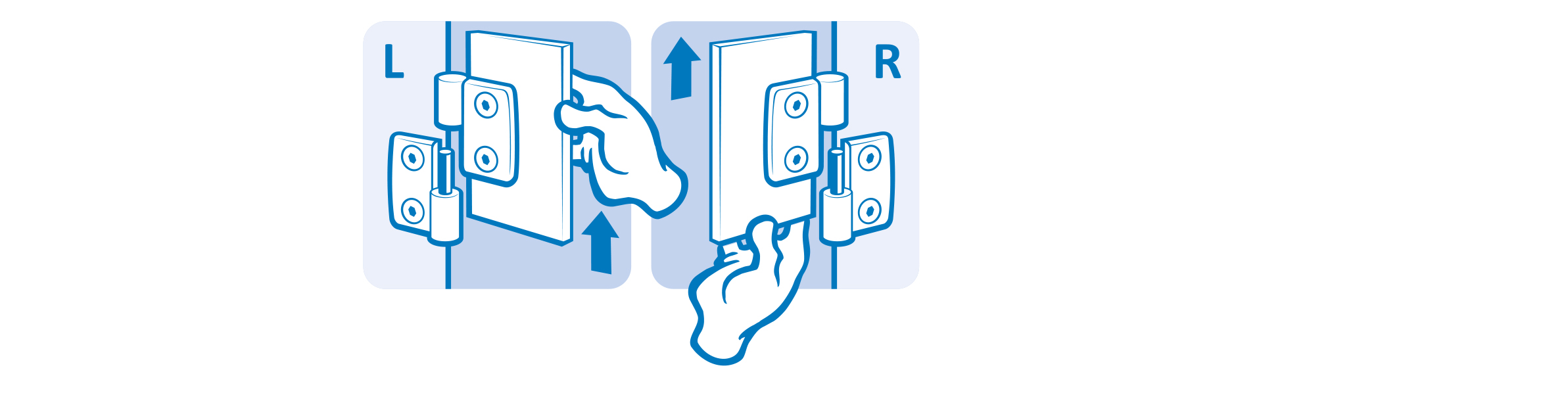

Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 6.5
Zolltarifnummer: 39263000900
pA Number: 136036

Variants

Product ID Combination Version
095K2020L00 20 / 20 L: Left
095K2020R00 20 / 20 R: Right
