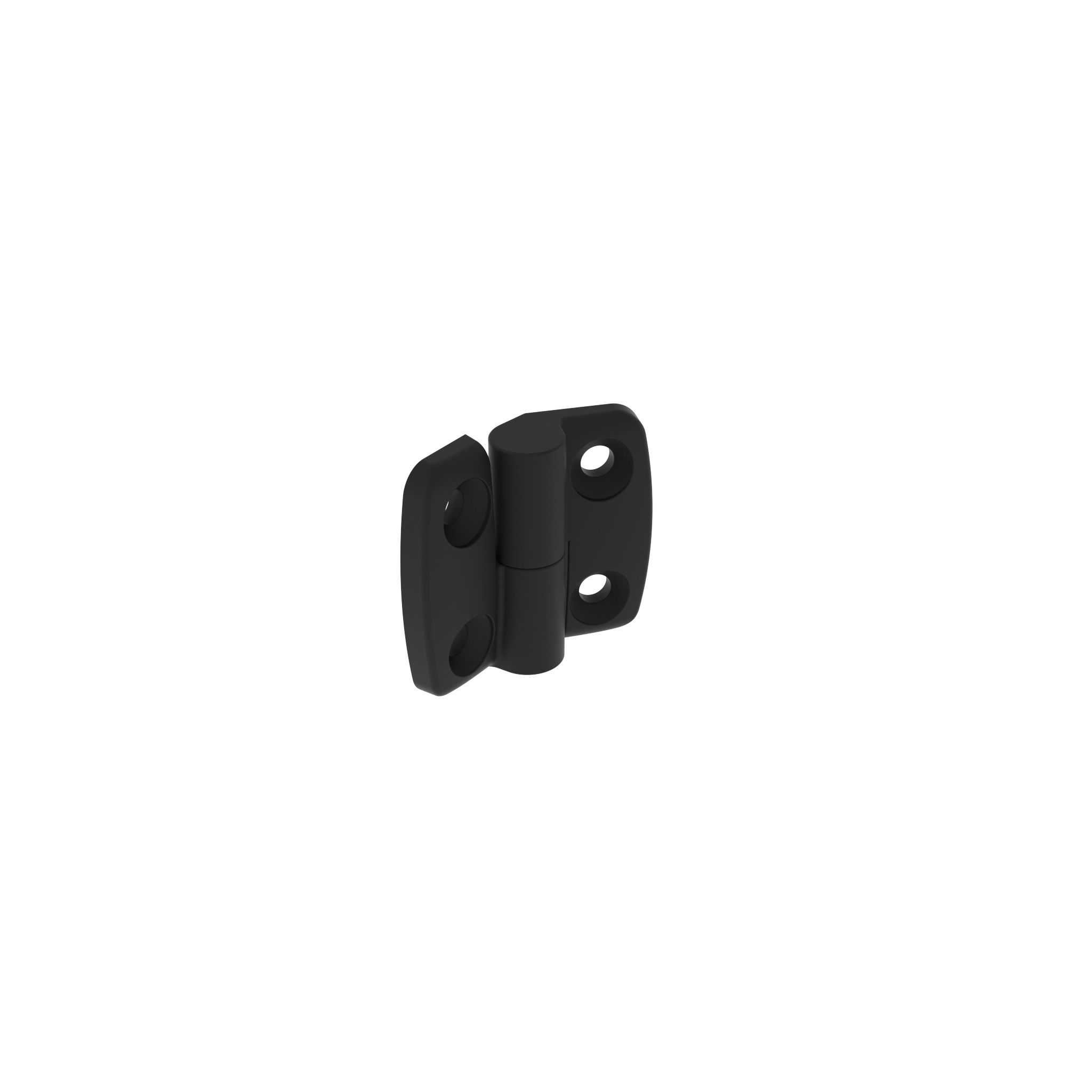

Plastic Combi Hinge 25, Detachable, Black

Description:

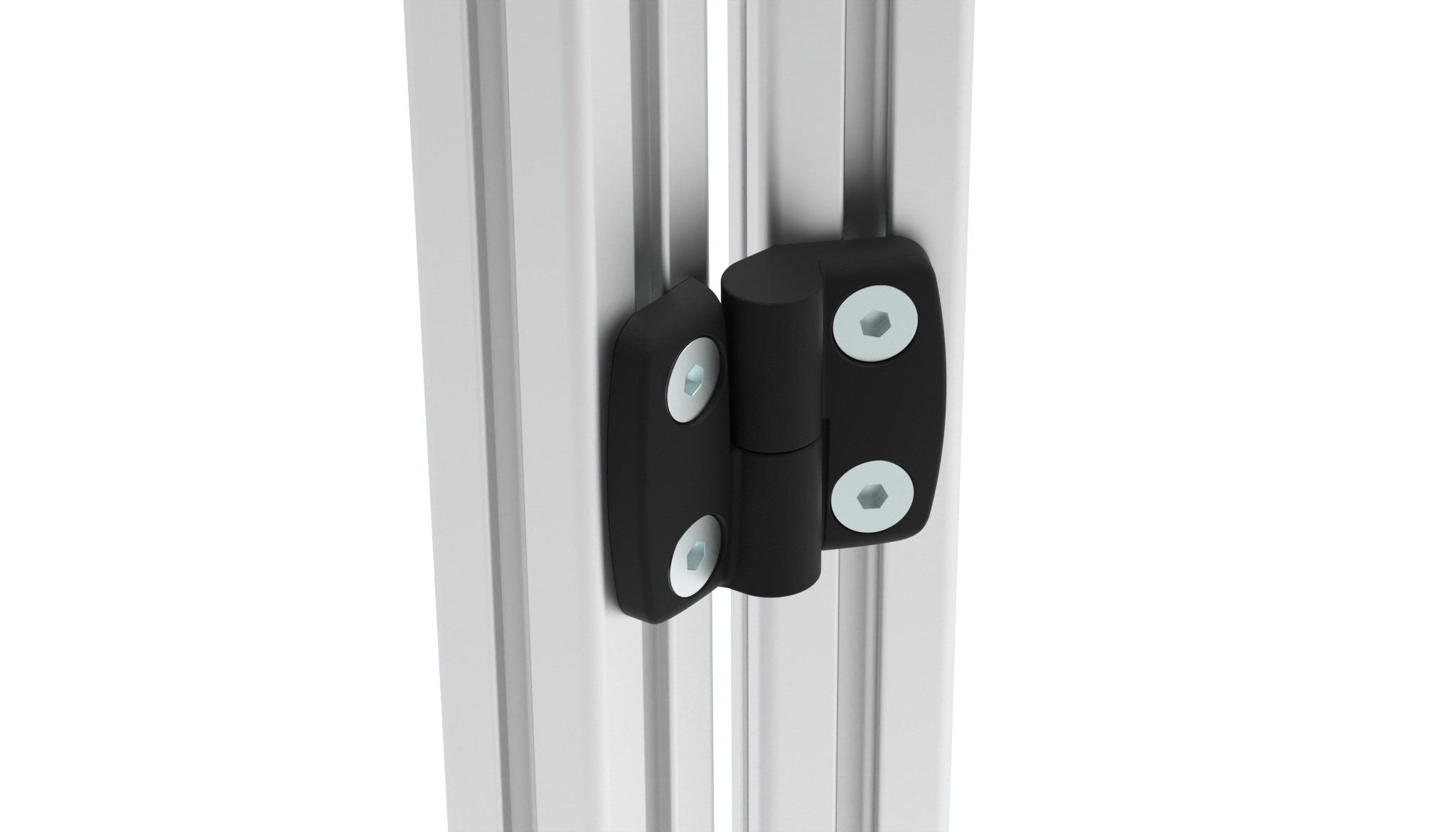

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Color:
Black

Fastening:
From the front, using M6 countersunk screws

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces

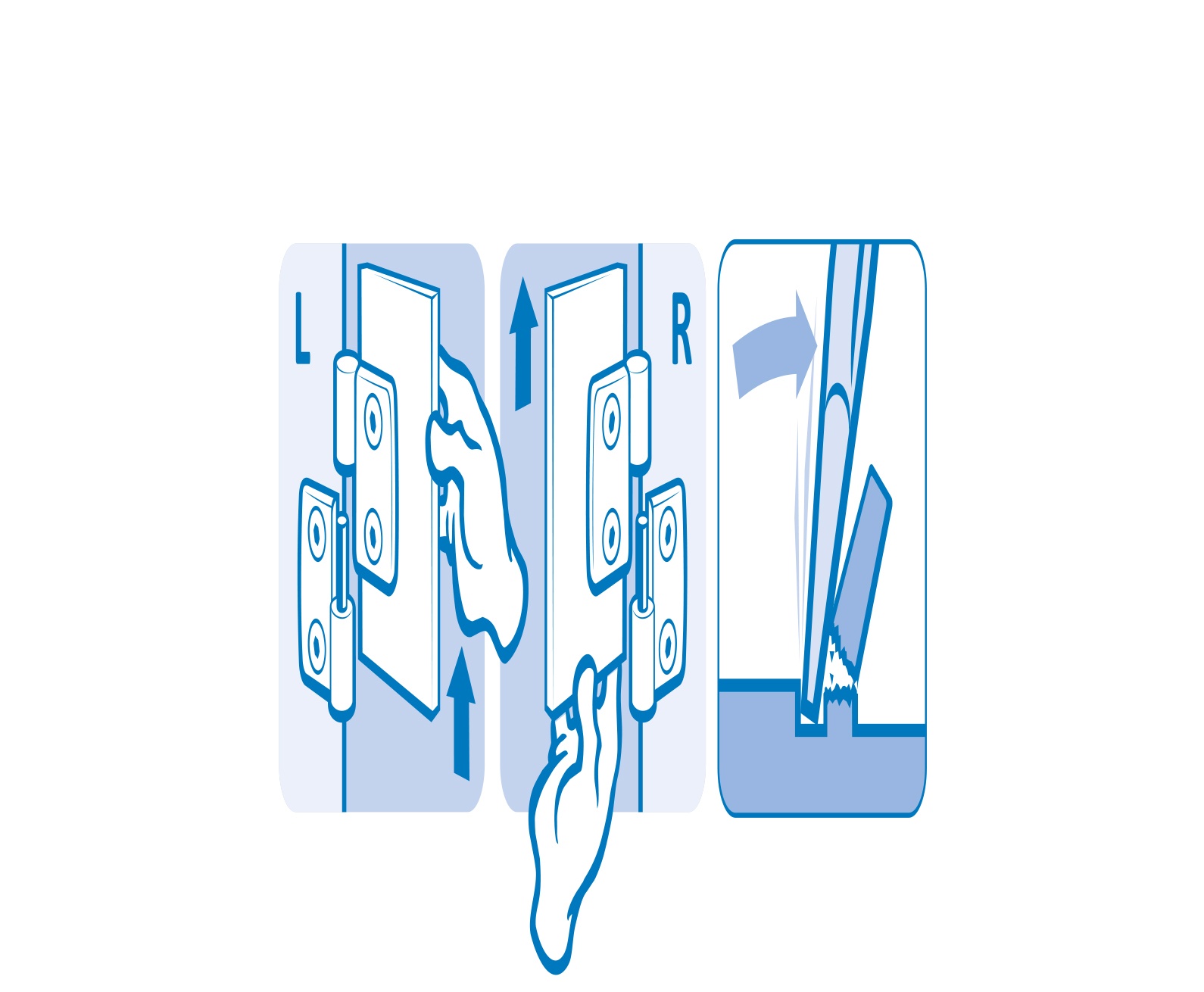

Model:	Detachable
Weight (g):	31.0
ERP Number:	101673

Variants

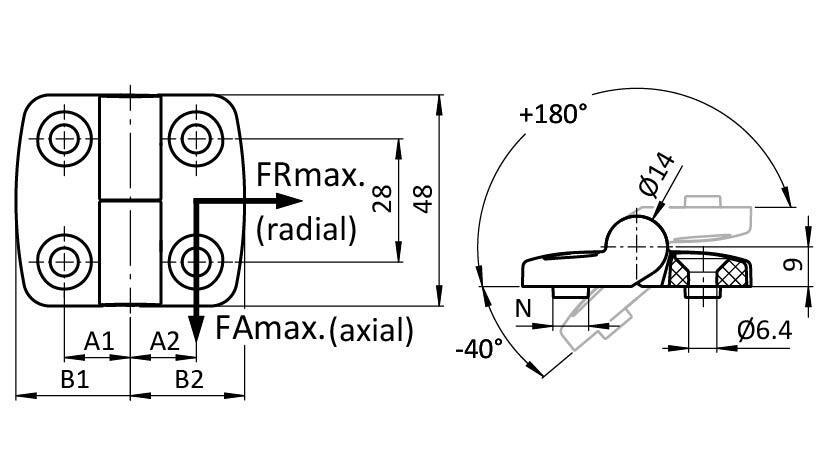

Part #	Version	Slot N (mm)	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095K2525L00	L: Left	-	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2525L06	L: Left	6	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2525L08	L: Left	8	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2530L00	L: Left	-	26.0	29.5	25 / 30	500	700	15.0	17.5
095K2535L00	L: Left	-	26.0	36.0	25 / 35	400	700	15.0	20.0
095K2540L00	L: Left	-	26.0	38.5	25 / 40	350	800	15.0	22.5
095K2545L00	L: Left	-	26.0	43.5	25 / 45	325	800	15.0	25.0
095K2550L00	L: Left	-	26.0	48.5	25 / 50	320	800	15.0	27.5
095K2525R00	R: Right	-	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2525R06	R: Right	6	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2525R08	R: Right	8	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2530R00	R: Right	-	29.5	26.0	25 / 30	500	700	17.5	15.0
095K2535R00	R: Right	-	36.0	26.0	25 / 35	400	700	20.0	15.0
095K2540R00	R: Right	-	38.5	26.0	25 / 40	350	800	22.5	15.0
095K2550R00	R: Right	-	48.5	26.0	25 / 50	320	800	27.5	15.0
095K2560L00	L: Left	-	26.0	57.5	25 / 60	240	800	15.0	32.5
095K2545R00	R: Right	-	43.5	26.0	25 / 45	325	800	25.0	15.0

Classifications

Zolltarifnummer: 39263000900

Certificates

Profile Type	Profile Type B, Profile Type I
Slot Size	Slot 6, Slot 8
Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
