Plastic Combi Hinge 25, Detachable, Black

Product information "Plastic Combi Hinge 25, Detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

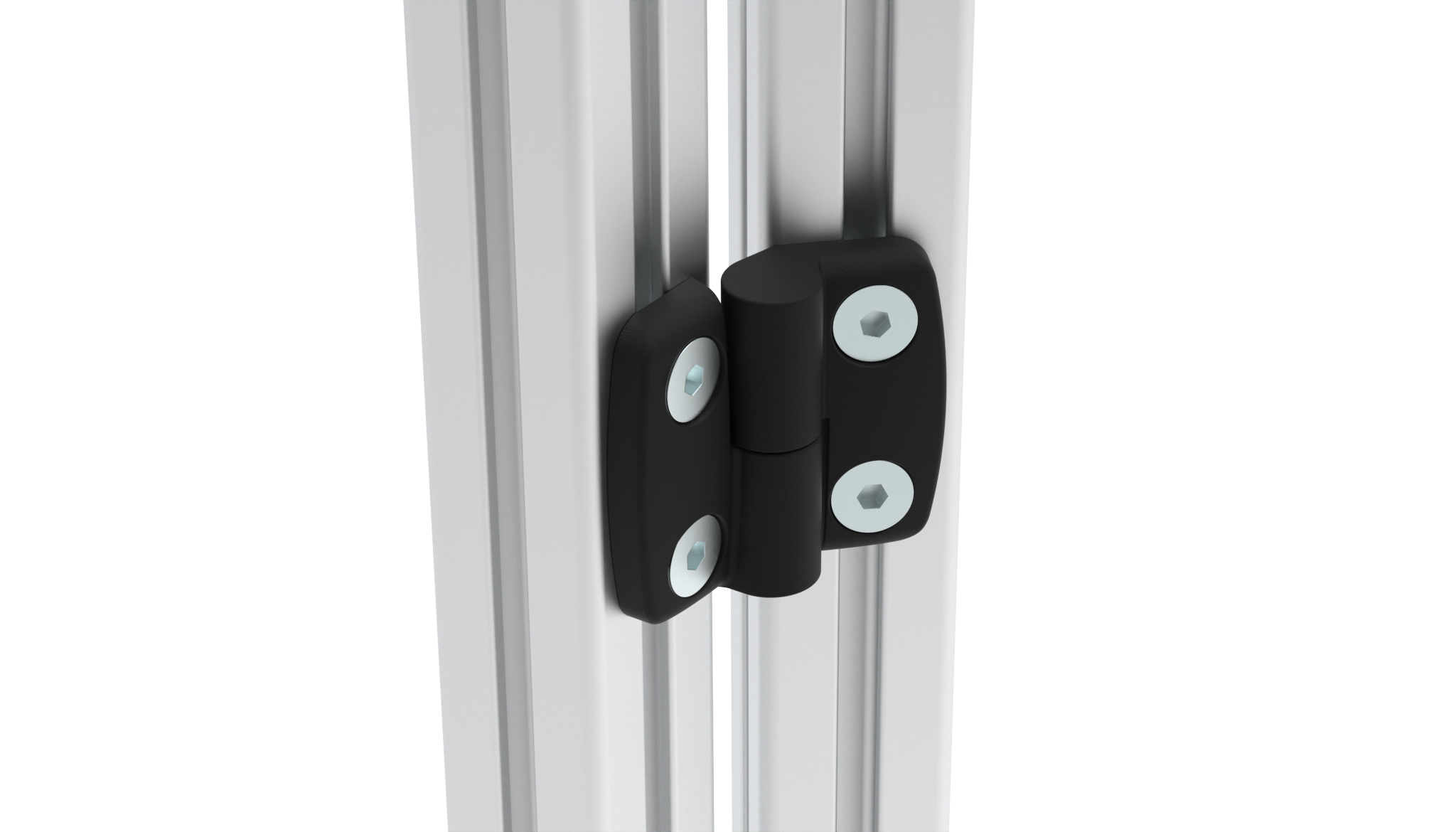

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 39263000
Fastening: From the front, using M6 countersunk screws

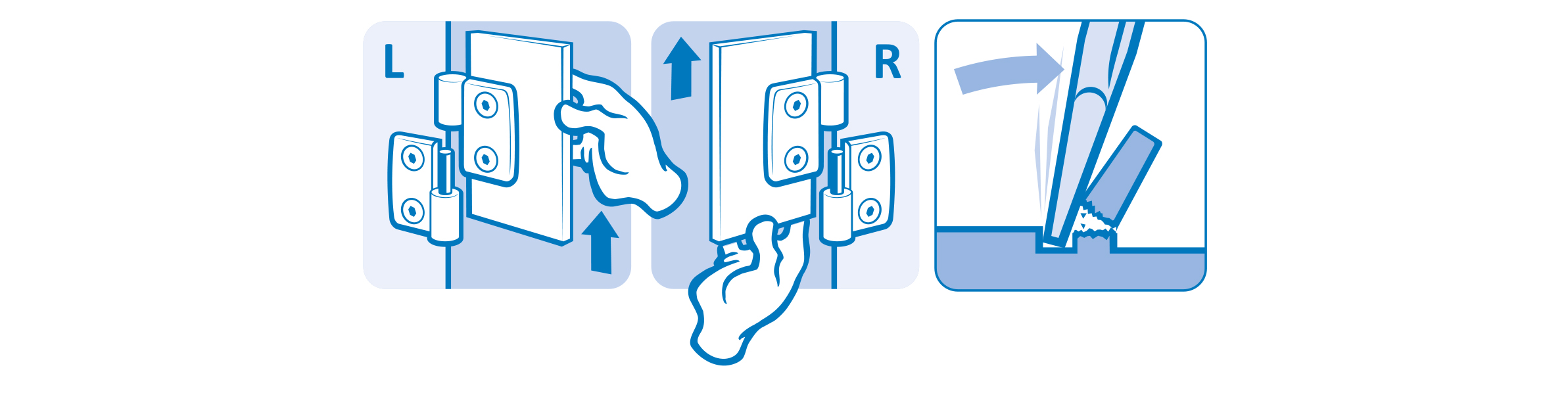

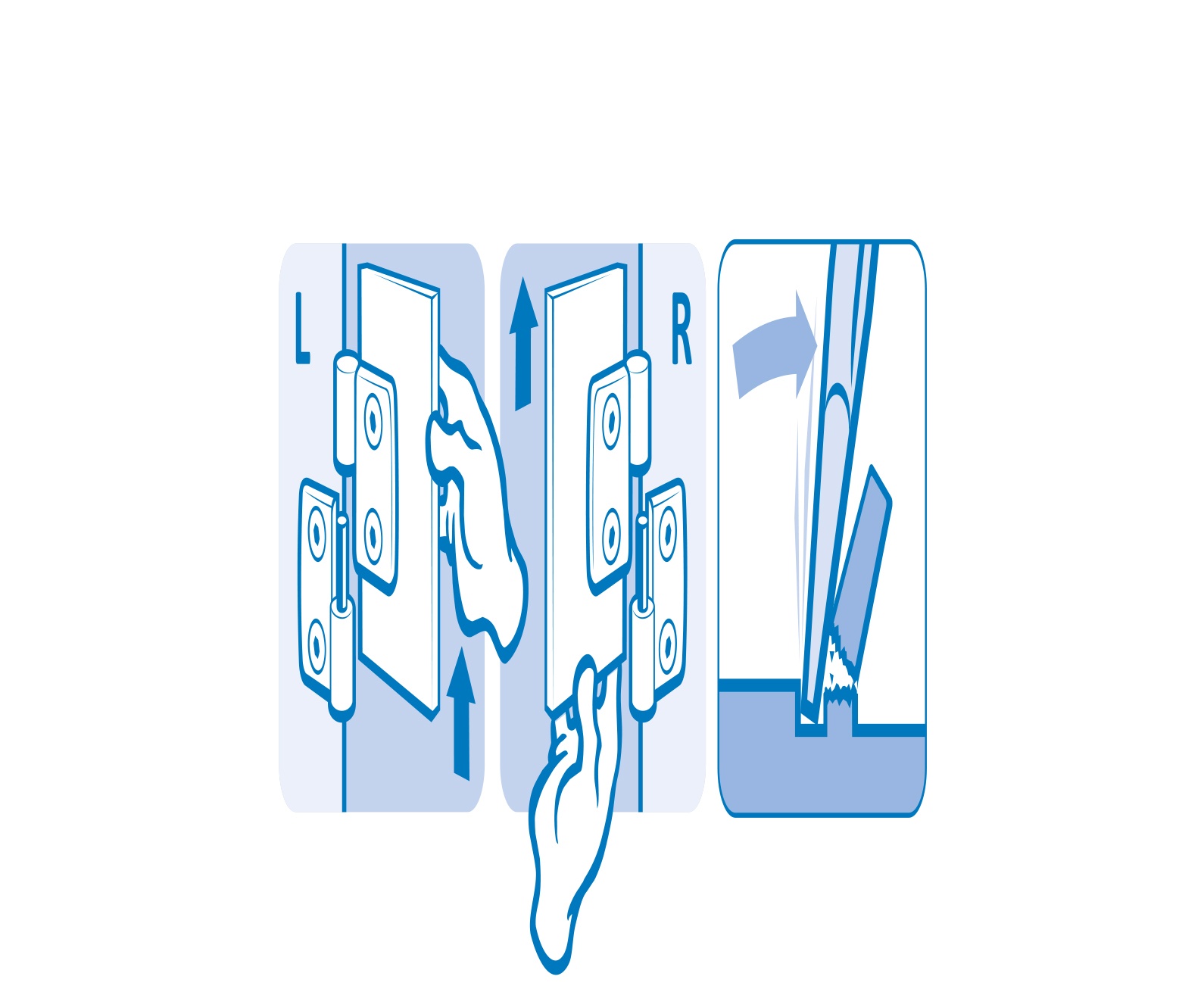

Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 37.0
Zolltarifnummer: 39263000900
pA Number: 108919

Variants

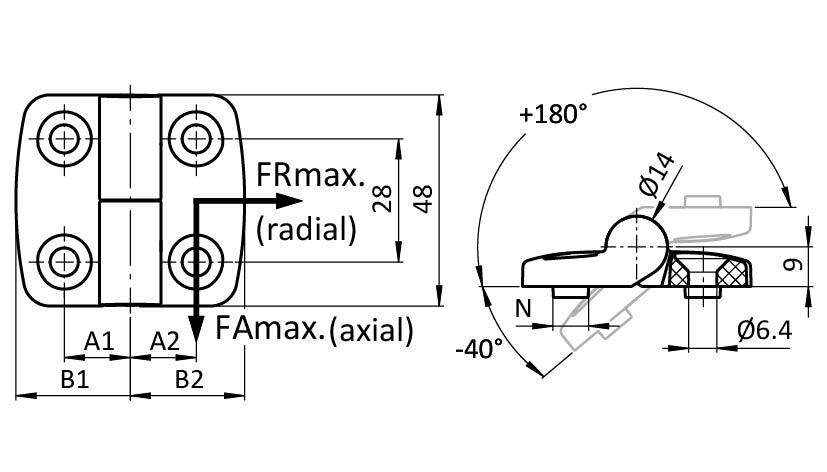

Product ID B1 (mm) Version Slot N (mm) A1 (mm) FRmax (N) B2 (mm) FAmax (N) A2 (mm) Combination
095K2525L00 26.0 L: Left 15.0 625 26.0 425 15.0 25 / 25
095K2525L06 26.0 L: Left 6 15.0 625 26.0 425 15.0 25 / 25
095K2525L08 26.0 L: Left 8 15.0 625 26.0 425 15.0 25 / 25
095K2525R00 26.0 R: Right 15.0 625 26.0 425 15.0 25 / 25
095K2525R06 26.0 R: Right 6 15.0 625 26.0 425 15.0 25 / 25
095K2525R08 26.0 R: Right 8 15.0 625 26.0 425 15.0 25 / 25
095K2530L00 26.0 L: Left 15.0 29.5 17.5 25 / 30
095K2530R00 29.5 R: Right 17.5 26.0 15.0 25 / 30
095K2535L00 26.0 L: Left 15.0 36.0 400 20.0 25 / 35
095K2535R00 36.0 R: Right 20.0 26.0 400 15.0 25 / 35
095K2540L00 26.0 L: Left 15.0 38.5 350 22.5 25 / 40
095K2540R00 38.5 R: Right 22.5 26.0 350 15.0 25 / 40
095K2545L00 26.0 L: Left 15.0 43.5 325 25.0 25 / 45
095K2550L00 26.0 L: Left 15.0 48.5 320 27.5 25 / 50
095K2550R00 48.5 R: Right 27.5 26.0 320 15.0 25 / 50
095K2560L00 26.0 L: Left 15.0 57.5 32.5 25 / 60
