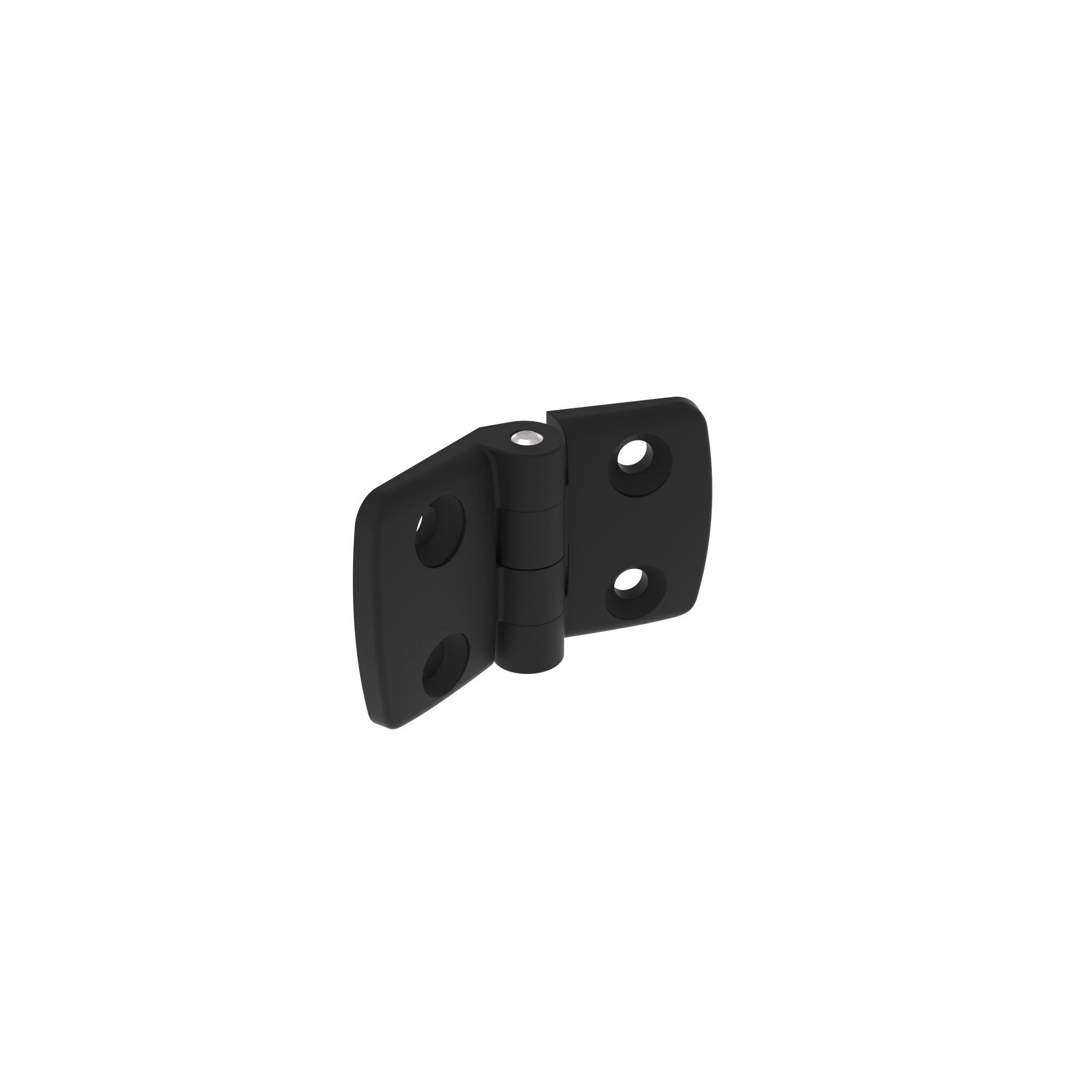

Plastic Combi Hinge 40, Non-detachable, Black

Product information "Plastic Combi Hinge 40, Non-detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

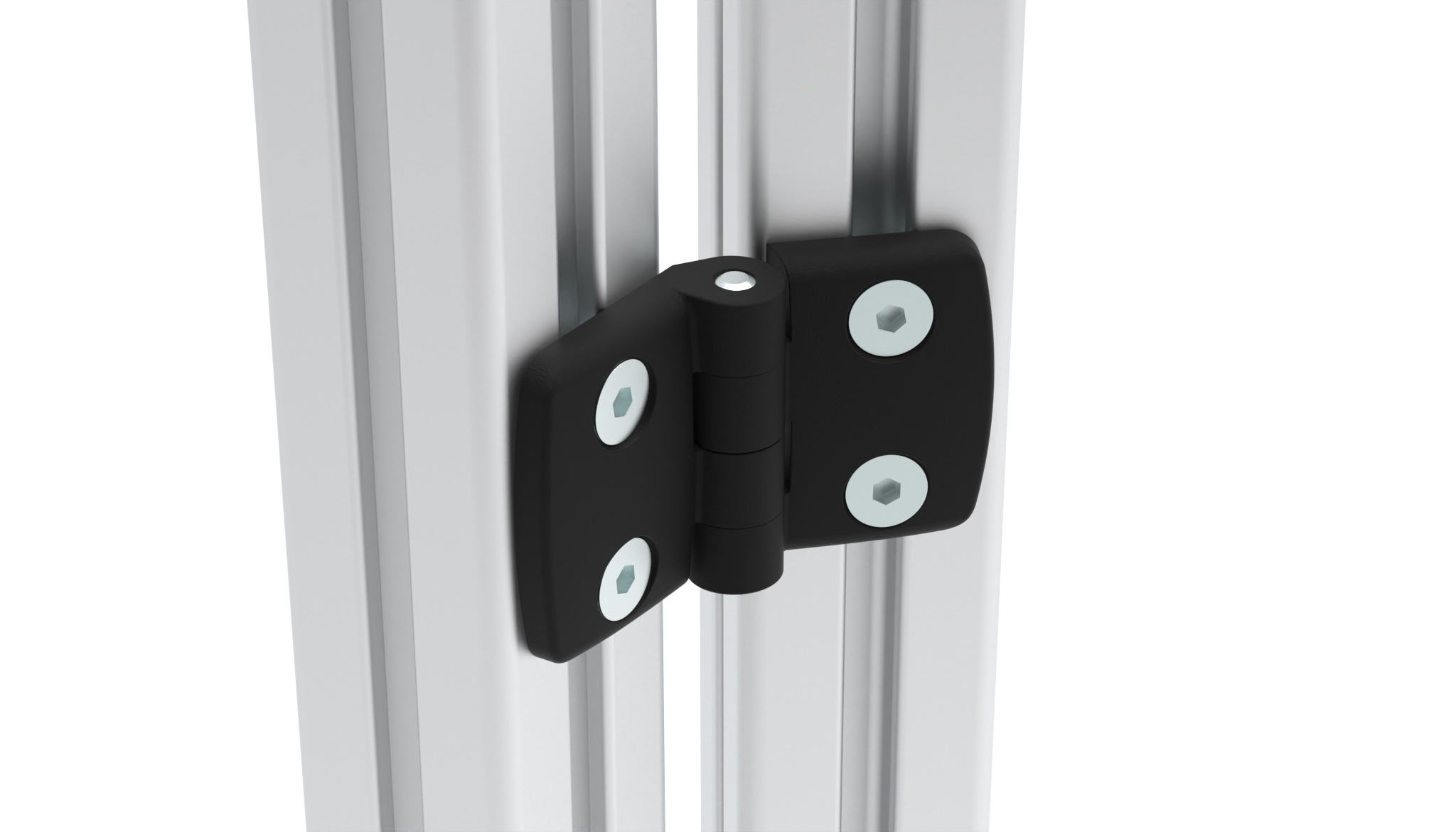

To hinge panels or aluminum profiles

Fastening:
From the front, using M6 countersunk screws

Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

Pack Quantity:	10 pieces
Model:	Non-detachable
Weight (g):	43.0
ERP Number:	101900

Variants

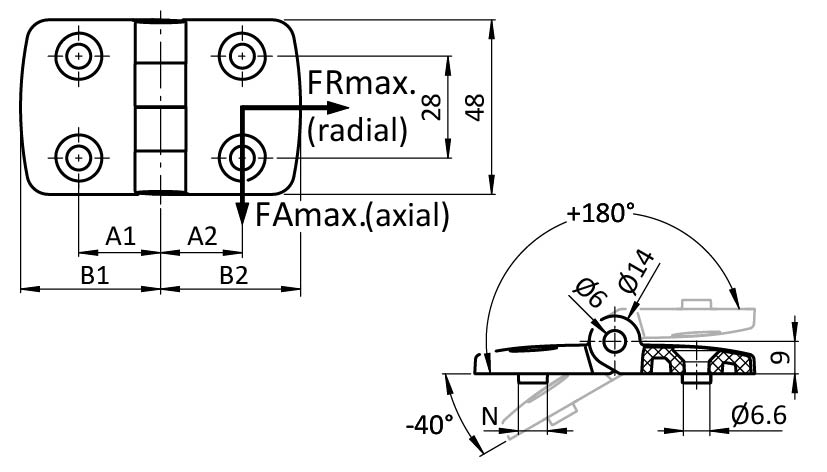

Part #	Version	Slot N (mm)	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095K4040F00	Non-detachable	-	38.5	38.5	40 / 40	450	750	22.5	22.5
095K4040F08	Non-detachable	8	38.5	38.5	40 / 40	450	750	22.5	22.5
095K4040F10	Non-detachable	10	38.5	38.5	40 / 40	450	750	22.5	22.5
095K4045F00	Non-detachable	-	38.5	43.5	40 / 45	450	750	22.5	25.0
095K4050F00	Non-detachable	-	38.5	48.5	40 / 50	425	800	22.5	27.5
095K4060F00	Non-detachable	-	38.5	57.5	40 / 60	175	850	22.5	32.5
