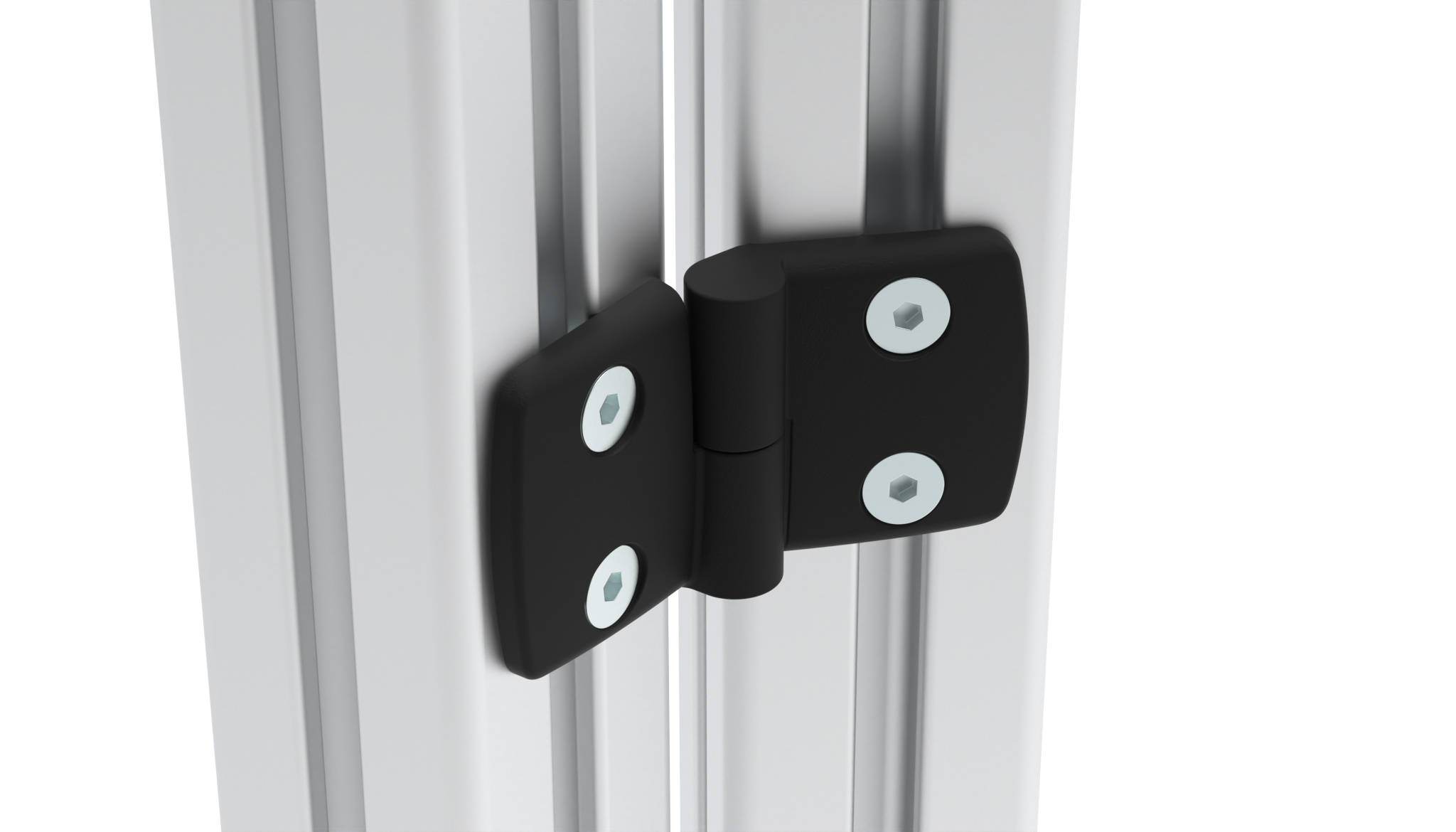

Plastic Combi Hinge 45, Detachable, Black

Product information "Plastic Combi Hinge 45, Detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

(ECLASS 6.0):	23219090
(ECLASS 7.0):	23219090
(ECLASS 8.0):	23219090
(ECLASS 9.0):	23219090
(ECLASS 10.0):	23219090
(ECLASS 11.0):	23219090
(ECLASS 12.0):	23219090
(ECLASS 13.0):	23219090
Customs Tariff Number Export:	39263000
Fastening:	From the front, using M6 countersunk screws
Model:	Detachable
Pack Quantity:	10 pieces
Pack Quantity (1):	10
Weight (g):	50.0
Zolltarifnummer:	39263000900
pA Number:	101976

Variants

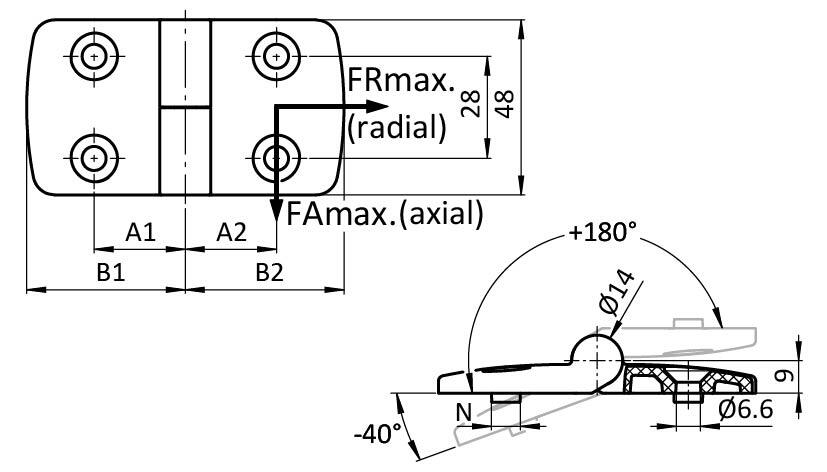

Product ID	B1 (mm)	A1 (mm)	Version	Slot N (mm)	Combination	B2 (mm)	FAmax (N)	FRmax (N)	A2 (mm)
095K4525L00	43.5	25.0	L: Left		45 / 25	26.0	425	650	15.0
095K4530R00	29.5	17.5	R: Right		45 / 30	43.5		750	25.0
095K4535L00	43.5	25.0	L: Left		45 / 35	36.0	400		20.0
095K4535R00	36.0	20.0	R: Right		45 / 35	43.5	325		25.0
095K4540L00	43.5	25.0	L: Left		45 / 40	38.5	350		22.5
095K4540R00	38.5	22.5	R: Right		45 / 40	43.5	350		25.0
095K4545L00	43.5	25.0	L: Left		45 / 45	43.5	325		25.0
095K4545L08	43.5	25.0	L: Left	8	45 / 45	43.5	325		25.0
095K4545L10	43.5	25.0	L: Left	10	45 / 45	43.5	325		25.0
095K4545R00	43.5	25.0	R: Right		45 / 45	43.5	325		25.0
095K4545R08	43.5	25.0	R: Right	8	45 / 45	43.5	325		25.0
095K4545R10	43.5	25.0	R: Right	10	45 / 45	43.5	325		25.0
095K4560L00	43.5	25.0	L: Left		45 / 60	57.5			32.5
095K4560R00	57.5	32.5	R: Right		45 / 60	43.5			25.0
