Plastic Combi Hinge 60, Detachable, Black

Product information "Plastic Combi Hinge 60, Detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

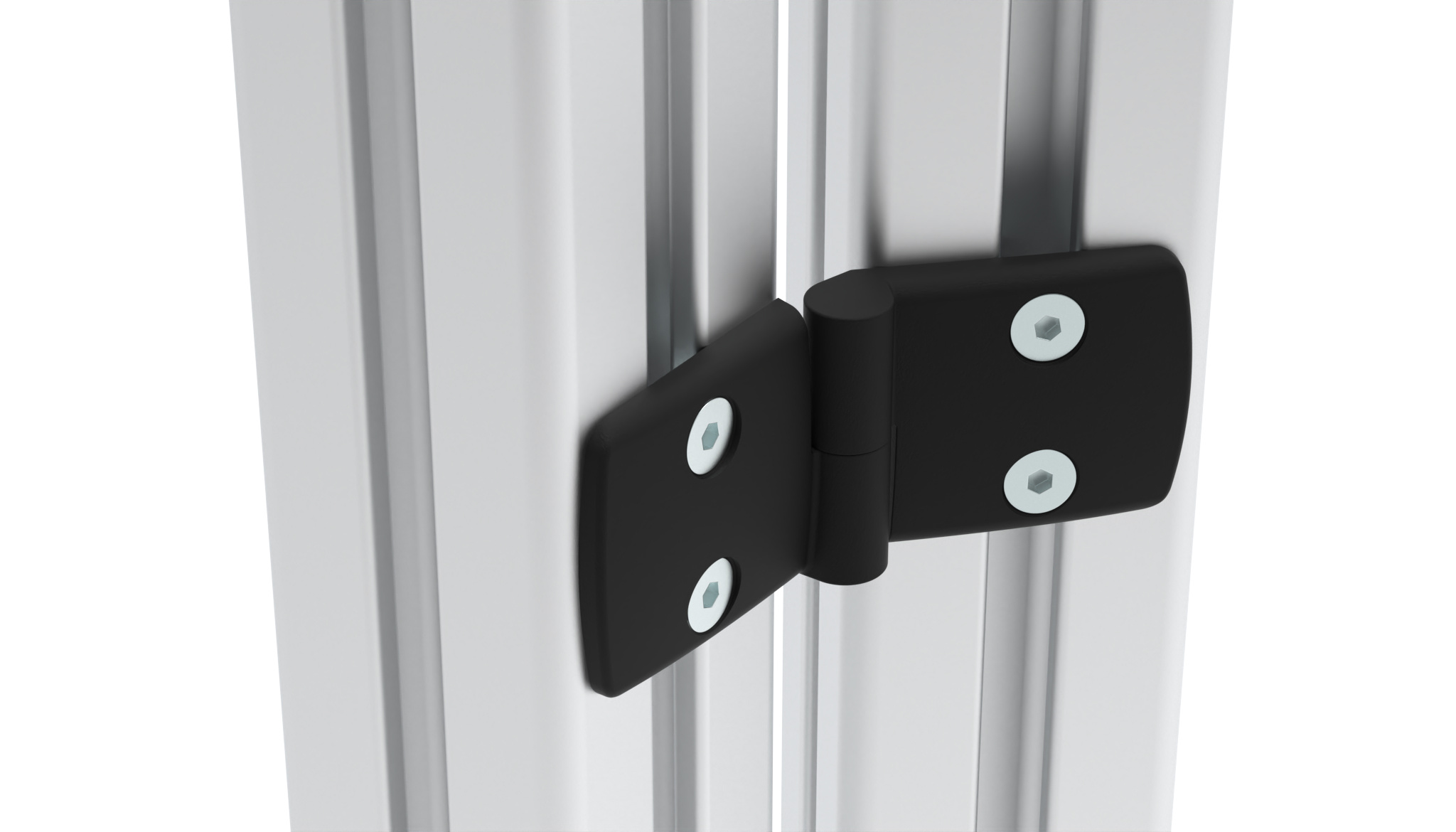

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 39263000
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 55.0
Zolltarifnummer: 39263000900
pA Number: 102031

Variants

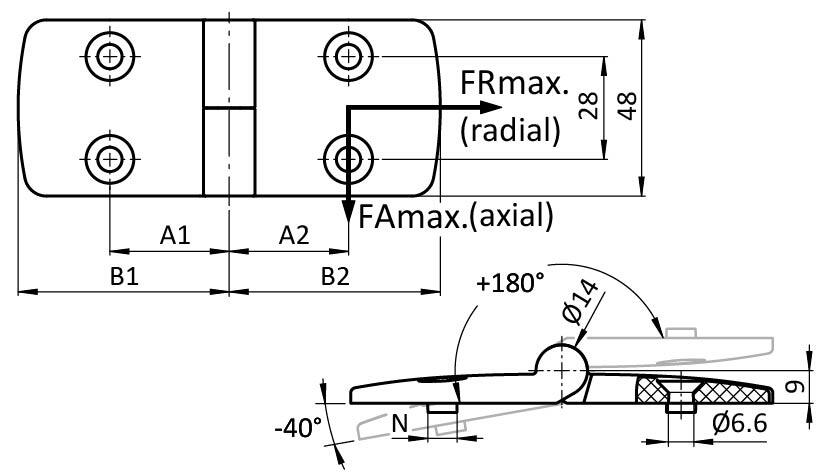

Product ID A2 (mm) B2 (mm) Slot N (mm) Version Combination B1 (mm) FAmax (N) FRmax (N) A1 (mm)
095K6025R00 32.5 57.5 R: Right 60 / 25 26.0 425 650 15.0
095K6030L00 17.5 29.5 L: Left 60 / 30 57.5 750 32.5
095K6030R00 32.5 57.5 R: Right 60 / 30 29.5 750 17.5
095K6035L00 20.0 36.0 L: Left 60 / 35 57.5 400 32.5
095K6035R00 32.5 57.5 R: Right 60 / 35 36.0 400 20.0
095K6040L00 22.5 38.5 L: Left 60 / 40 57.5 350 32.5
095K6040R00 32.5 57.5 R: Right 60 / 40 38.5 350 22.5
095K6050L00 27.5 48.5 L: Left 60 / 50 57.5 320 900 32.5
095K6050R00 32.5 57.5 R: Right 60 / 50 48.5 320 900 27.5
095K6060L00 32.5 57.5 L: Left 60 / 60 57.5 900 32.5
095K6060L08 32.5 57.5 8 L: Left 60 / 60 57.5 900 32.5
095K6060L10 32.5 57.5 10 L: Left 60 / 60 57.5 900 32.5
095K6060R00 32.5 57.5 R: Right 60 / 60 57.5 900 32.5
095K6060R10 32.5 57.5 10 R: Right 60 / 60 57.5 900 32.5
