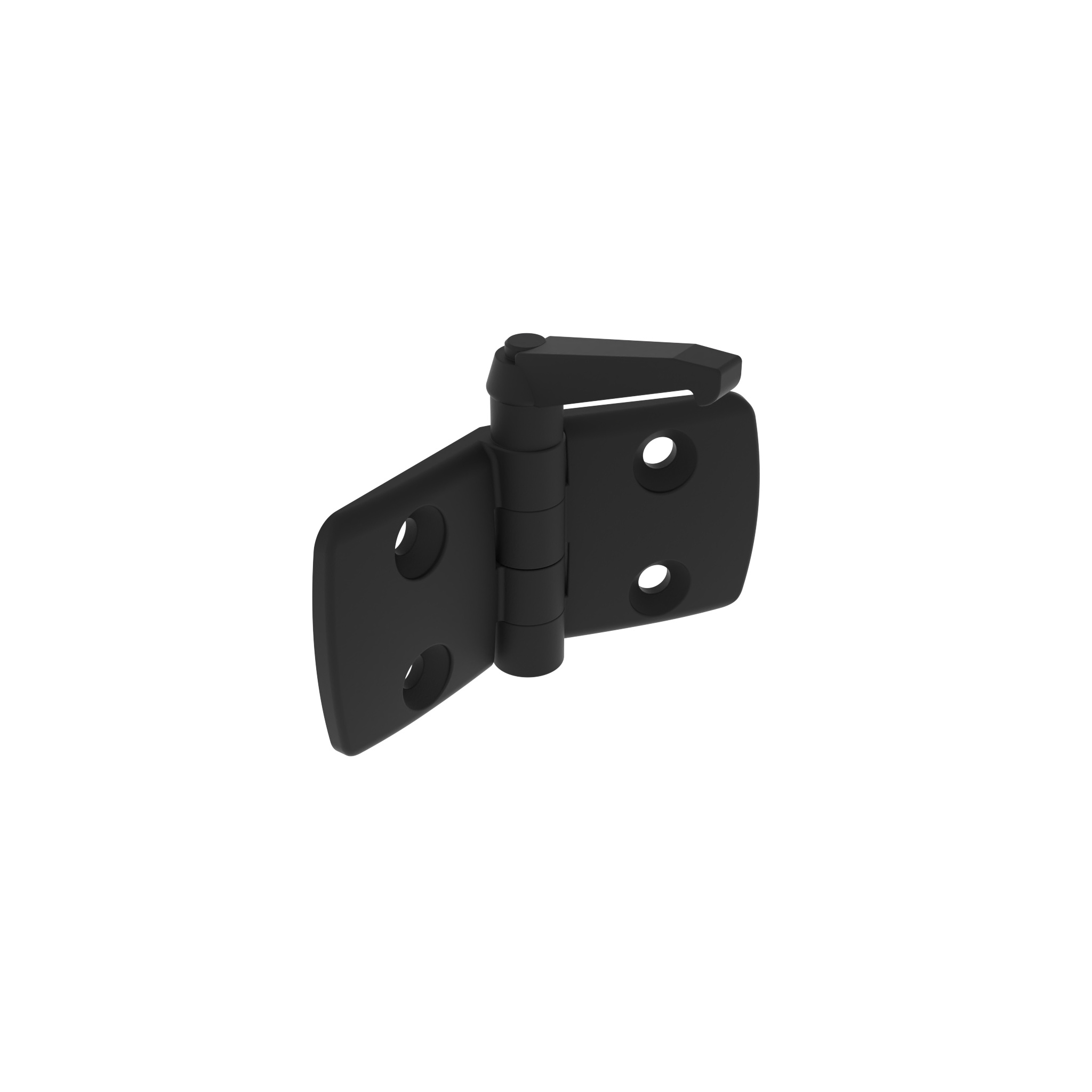

Plastic Combi Hinge with Locking Lever

Product information "Plastic Combi Hinge with Locking Lever"

Color:
Black

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles; can be locked at any position

Fastening:
From the front, using M6 countersunk screws

Material:
Hinge: Plastic PA, glass fiber reinforced
KIPP locking lever: Plastic PA, glass fiber reinforced
Mechanism: Steel, zinc plated (RoHS conform)

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Tip:
Combinations of different wing sizes are available on request

Pack Quantity:	10 pieces
Model:	Plastic PA, Non-detachable
Weight (g):	62.0
ERP Number:	102077

Variants

Part #	Version	Slot N (mm)	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095KF2525F00	Non-detachable	-	26.0	26.0	25 / 25	380	500	15.0	15.0
095KF2525F06	Non-detachable	6	26.0	26.0	25 / 25	380	500	15.0	15.0
095KF2525F08	Non-detachable	8	26.0	26.0	25 / 25	380	500	15.0	15.0
095KF3030F00	Non-detachable	-	29.5	29.5	30 / 30	400	700	17.5	17.5
095KF3030F08	Non-detachable	8	29.5	29.5	30 / 30	400	700	17.5	17.5
095KF3535F00	Non-detachable	-	36.0	36.0	35 / 35	400	700	20.0	20.0
095KF4040F00	Non-detachable	-	38.5	38.5	40 / 40	450	750	22.5	22.5
095KF4040F08	Non-detachable	8	38.5	38.5	40 / 40	450	750	22.5	22.5
095KF4040F10	Non-detachable	10	38.5	38.5	40 / 40	450	750	22.5	22.5
095KF4545F00	Non-detachable	-	43.5	43.5	45 / 45	450	750	25.0	25.0
095KF4545F10	Non-detachable	10	43.5	43.5	45 / 45	450	750	25.0	25.0
095KF5050F00	Non-detachable	-	48.5	48.5	50 / 50	425	800	27.5	27.5
095KF6060F00	Non-detachable	-	57.5	57.5	60 / 60	175	850	32.5	32.5
095KF3535F08	Non-detachable	8	36.0	36.0	35 / 35	400	700	20.0	20.0
095KF6060F08	Non-detachable	8	57.5	57.5	60 / 60	175	850	32.5	32.5
095KF6060F10	Non-detachable	10	57.5	57.5	60 / 60	175	850	32.5	32.5
