Plug-in Profil 4.2 / 6 - 4

Product information "Plug-in Profil 4.2 / 6 - 4"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:

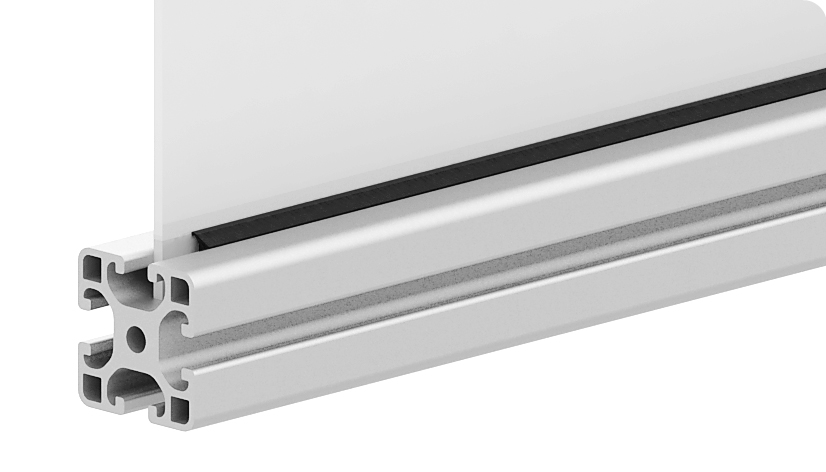

To secure panels in the slot and fill the slot

Material:
Plastic TPE

Specials:
Other colors on request

Tip:
Please note: You are ordering in meters!

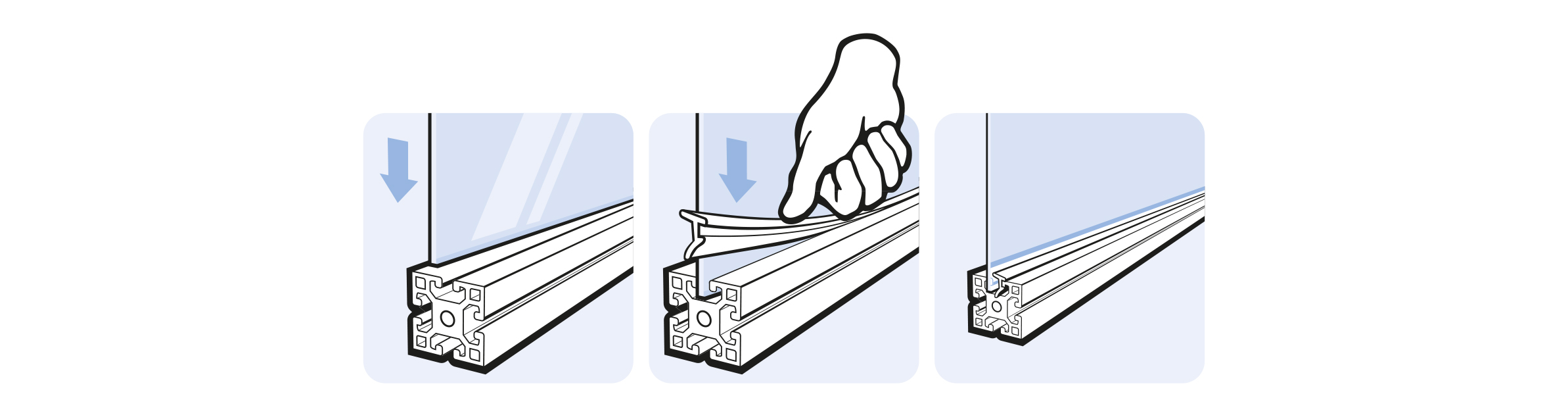

*Best wetted with soapy water prior to assembly
Pack Quantity: 100 meters (1 roll)
Model: Plastic TPE, slot 8+10
Weight (g/m): 90.0
ERP Number: 137904

Global keywords / tags:

Profile Type Profile Type I
Slot Size Slot 8, Slot 10

Variants

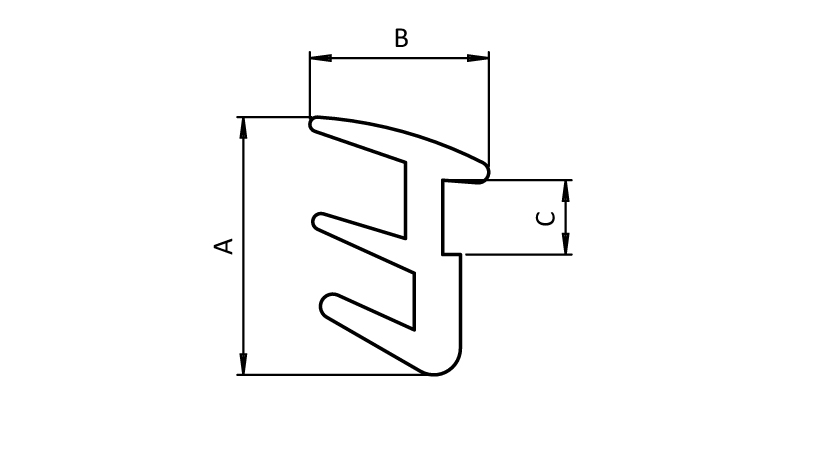

Part # Profile A (mm) B (mm) C (mm) Color Slot N (mm) for Panel
I 14.6 10.1 4.2 Black 8 / 10 2 - 4 mm / 4 - 5 (6*) mm
I 14.6 10.1 4.2 Gray ≈ RAL 7042 8 / 10 2 - 4 mm / 4 - 5 (6*) mm

CAD Downloads

Classifications

ECLASS 6.0
23071690
ECLASS 7.0
23071690
ECLASS 8.0
23071690
ECLASS 9.0
23071690
ECLASS 10.0
23071690
ECLASS 11.0
23071690
ECLASS 12.0
23071690
ECLASS 13.0
23071690
Zolltarifnummer
40082900900
Customs Tariff Number Export
40082900
