Plug-in Profil 5.0 / 6 - 4

Product information "Plug-in Profil 5.0 / 6 - 4"

Color:
Black

Delivery Countries:
Worldwide

Description:

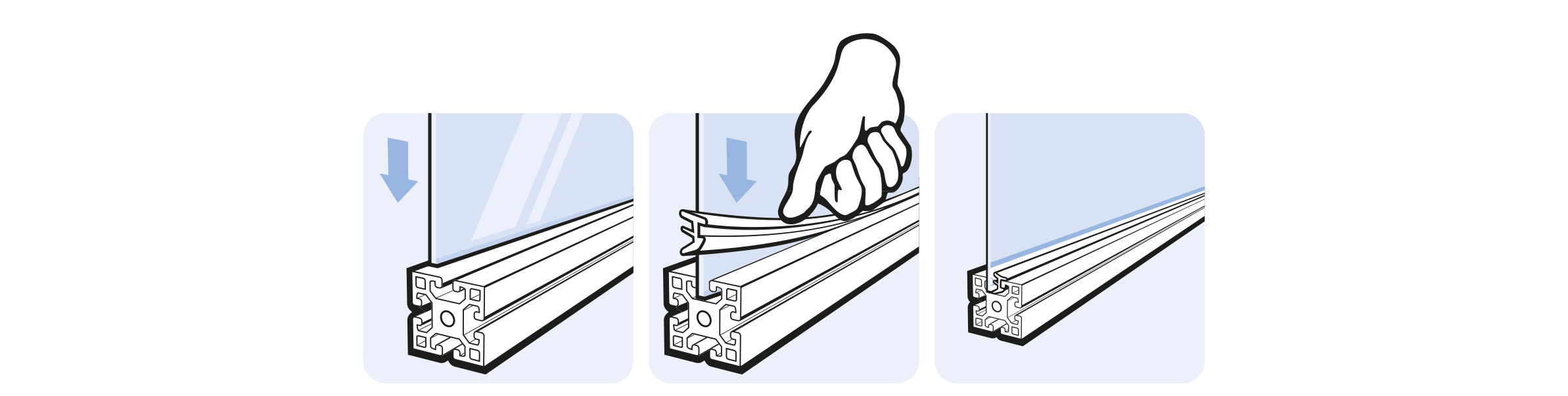

To secure panels in the slot and fill the slot; with reduced surface friction to ease the application

Material:
Plastic EPDM coated with sliding polymer

Tip:
Please note: You are ordering in meters!
Model: Plastic EPDM, slot 8+10
Pack Quantity: 100 meters (roll)
Customs Tariff Number Export: 40082900
Weight (g/m): 53.0
(ECLASS 6.0): 23071690
(ECLASS 7.0): 23071690
(ECLASS 8.0): 23071690
(ECLASS 9.0): 23071690
(ECLASS 10.0): 23071690
(ECLASS 11.0): 23071690
(ECLASS 12.0): 23071690
(ECLASS 13.0): 23071690
ERP Number: 129647
Zolltarifnummer: 40082900900

Variants

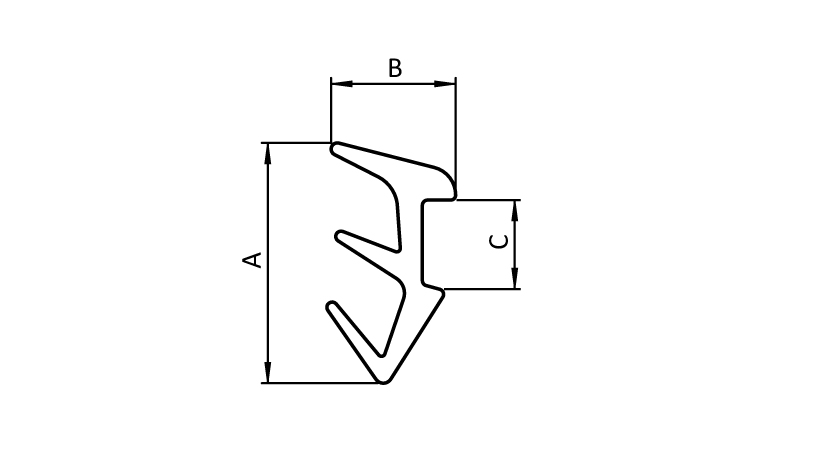

Part # for Panel A (mm) B (mm) C (mm) Slot N (mm) Profile
092254 4 – 6 mm / 6 - 7 mm 13.5 7.0 5.0 8 / 10 I
092255 2 – 4 mm / 4 - 6 mm 14.7 8.6 5.0 8 / 10 I
