Power Strip Module F Line 370 4x + USB, with Switch
Regular price:
€0.00
Part #:
6SBEU14UIE.370
Pack Quantity:
1 piece
Product information "Power Strip Module F Line 370 4x + USB, with Switch"
Color:
Housing standard version: -
Housing ESD electrostatical discharging version: Black
End caps: Black
Socket inserts: Black
Switch button standard version: Blue
Switch ESD electrostatical discharging version: Orange
Delivery Countries:
Worldwide
Description:
Switchable power strip with sockets for power supply at workstations, with 2x USB charging sockets USB 2.0 Typ A with smart IC;

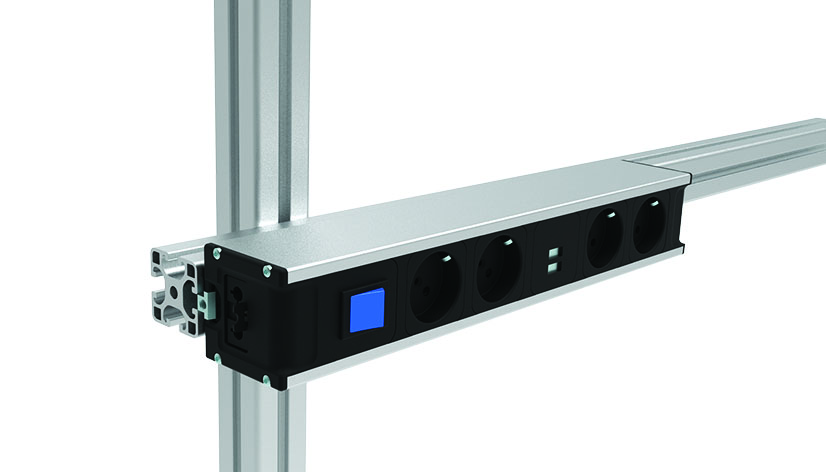

On the backside with slot 8 for mounting on aluminum profiles
Material:
Housing: Aluminum
End caps: Plastic PA, carbon fiber reinforced
Socket inserts: Plastic PA
USB sockets: Plastic ABS
Switch: Plastic ABS / PA
Plug type countries:
Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR
Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY
Type E: FR, BE, CZ, SK, PL, MA, CM, TN
Specials:
Further colors, individually configurated power strips on request
Surface:
Housing standard version: Anodized
Housing ESD electrostatical discharging version: Powder coated
Tip:
Compatible LED Lamp see 6SL1040DI.953
Compatible Main Power Cable see 6SAME4J316B.2000
Compatible Connection Cable see 6SACP3J316B.2000
Compatible Connection Coupling see 6SAKP3J316BS01
Compatible Cover Cap for 3 pole female connector see 063SGF3S01
Compatible Direct Connector I, Slot 8 see 099DC084040N08
Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10
Tip 2:
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
Housing standard version: -
Housing ESD electrostatical discharging version: Black
End caps: Black
Socket inserts: Black
Switch button standard version: Blue
Switch ESD electrostatical discharging version: Orange
Delivery Countries:
Worldwide
Description:
Switchable power strip with sockets for power supply at workstations, with 2x USB charging sockets USB 2.0 Typ A with smart IC;
On the backside with slot 8 for mounting on aluminum profiles
Material:
Housing: Aluminum
End caps: Plastic PA, carbon fiber reinforced
Socket inserts: Plastic PA
USB sockets: Plastic ABS
Switch: Plastic ABS / PA
Plug type countries:
Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR
Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY
Type E: FR, BE, CZ, SK, PL, MA, CM, TN
Specials:
Further colors, individually configurated power strips on request
Surface:
Housing standard version: Anodized
Housing ESD electrostatical discharging version: Powder coated
Tip:
Compatible LED Lamp see 6SL1040DI.953
Compatible Main Power Cable see 6SAME4J316B.2000
Compatible Connection Cable see 6SACP3J316B.2000
Compatible Connection Coupling see 6SAKP3J316BS01
Compatible Cover Cap for 3 pole female connector see 063SGF3S01
Compatible Direct Connector I, Slot 8 see 099DC084040N08
Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10
Tip 2:
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
| Pack Quantity: | 1 piece |
|---|---|
| Weight (g): | 954.6 |
| IP Rating: | IP20 |

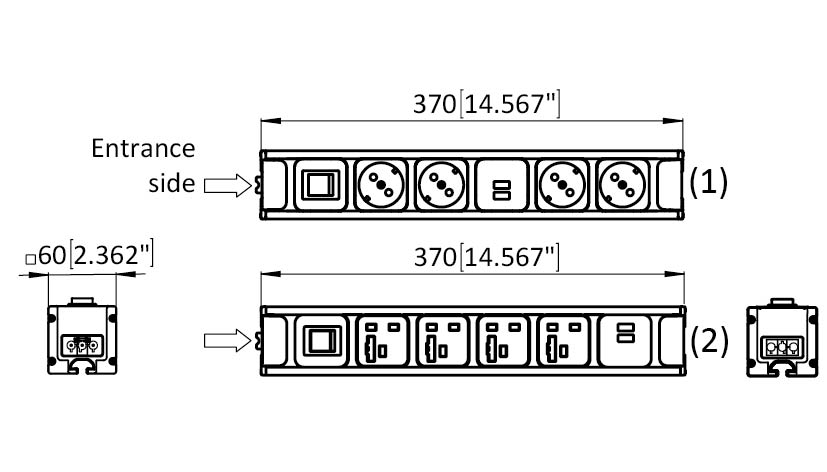

| Length: | 370 mm |
| Operating Temperature: | 0 - 40 °C |
| Protection Class: | II (2) |
| Current: | Max. 16 A |
| Frequency: | AC / 50 Hz |
| Max. Connection Power: | 3500 W |
| Voltage: | 230 V |
| Max. USB Charging Current: | 3000 mA |
| USB Charging Voltage: | 5.0 V |
| ECLASS 6.0: | 27142604 |
| ECLASS 7.0: | 27142604 |
| ECLASS 8.0: | 27142604 |
| ECLASS 9.0: | 27142604 |
| ECLASS 10.0: | 27142604 |
| ECLASS 11.0: | 27142604 |
| ECLASS 12.0: | 27142604 |
| ECLASS 13.0: | 27142604 |
| Zolltarifnummer: | 85371098990 |
| Customs Tariff Number Export: | 85371098 |
| ERP Number: | 169456 |
