Product Portrait


ADAPTER PALLET FOR DOLLIES

Smart logistics: The FATH Adapter Pallet enables the transportation of dollies with automated guided vehicle systems

With the FATH Adapter Pallet, dollies can be transported and stored particularly efficiently. The dollies can remain on the adapter pallet throughout the entire process chain. External transport by truck is possible without problems, as the dollies are locked automatically and fully loaded adapter pallets can be stacked on top of each other.

With the FATH Adapter Pallet, dollies can be transported and stored particularly efficiently. The dollies can remain on the adapter pallet throughout the entire process chain. External transport by truck is possible without problems, as the dollies are locked automatically and fully loaded adapter pallets can be stacked on top of each other.

If raw products or semi-finished products are delivered on adapter pallets, restacking at goods receipt is no longer necessary. The logistics chain for external finishing processes is significantly improving through the use of adapter pallets since the material doesn’t need to be repacked for inter-plant transport.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

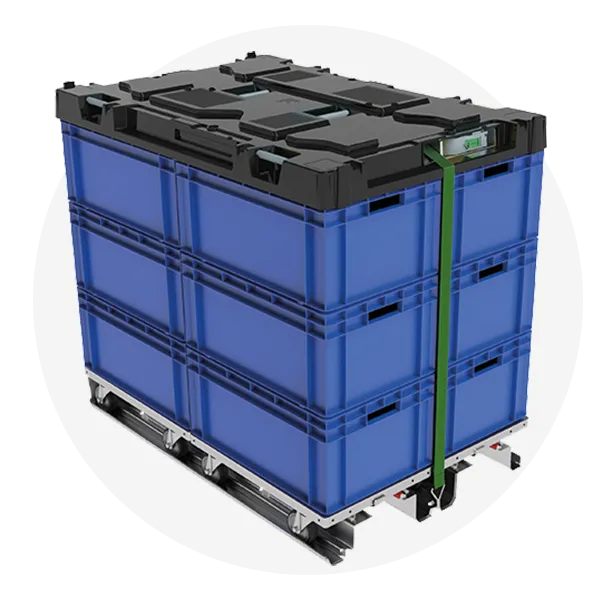

  • With a pallet lid and integrated straps, the dollies can be stored on any level
  • Automatic locking during lifting with fork arms
  • Safety device: Unlocking by pressing the foot pedal
  • Seamless cross-plant transport via truck and track
  • Brand independent: Can be used with all 400 x 600 mm dollies
  • Roller track capable

The FATH Adapter Pallet can be used with almost all standard dollies. In the 600 x 400 mm dimension, four fit on one pallet, two, in the 1200 x 800 mm dimension, one in the 800 x 600 mm dimension. The dollies can be loaded or stacked with other dollies as empties – this ensures highly efficient space utilization in logistics.


Icon-Additional-Plus-grey.svg?ts=1743005262 ANOTHER ADVANTAGE:

The FATH Adapter Pallet is roller track compatible. It is recognized as a pallet by all common transport systems.

UNIQUE: AGV CAPABLE THANKS TO AUTOMATIC LOCKING

The FATH Adapter Pallet is the first pallet that can be transported with an AGV (driverless transport system). It has a sophisticated and very robust locking mechanism. A spring automatically closes the locking flap when the adapter pallet is lifted one centimeter by a forklift, a pallet truck or AGV. This also makes it possible to position rolling goods on inclined loading ramps or uneven production surfaces.

Special attention was paid to occupational safety. To prevent the lock from being opened accidentally, it is unlocked by deliberately releasing the lock manually with the distinctive red foot switch.

The FATH adapter pallet was developed in cooperation with AGILOX. The development was triggered by the practical requirement of a well-known manufacturer - in whose production process the AGILOX AGVs were to be safely integrated to facilitate smooth automated logistics. The FATH adapter pallet meets this requirement for AGILOX AGTS and many other automated guided vehicle systems.

Visit AgiloxIcon-link-extern.svg?ts=1745831337

STORAGE ON SMALLEST AREA

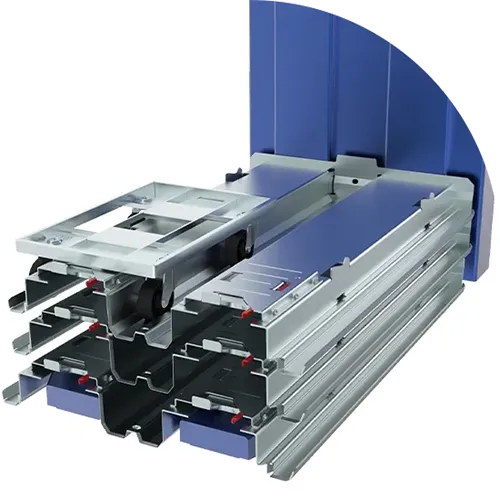

FATH Adapter Pallets are designed so that they can be easily stacked on top of each other when empty. In production and logistics, a small area of 1200 x 800 mm is already sufficient to store several adapter pallets and make them available for immediate use.

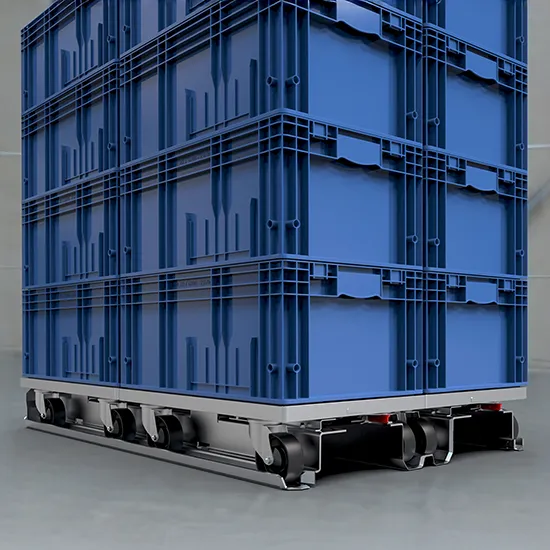

Even adapter pallets that are fully loaded can be stacked without any problems. This means that a lot of material can be stored without having to restrict the production area on the shop floor.

You can also optimize the use of space in the warehouse. Since dollies are automatically locked in place on the FATH adapter pallet by a sophisticated locking mechanism, loaded adapter pallets can be stored safely in the high rack (the FATH Pallet Lid, for example, is ideal for securing the transported goods). Material flow and material supply can thus be organized efficiently and in a space-saving manner, even in the case of storage.

WOULD YOU LIKE TO FIND OUT MORE ABOUT MATERIAL TRANSPORT?

Here you can find more products, such as the FATH Dollies or the FATH eTRIKE Platform Scooter.


Discover more

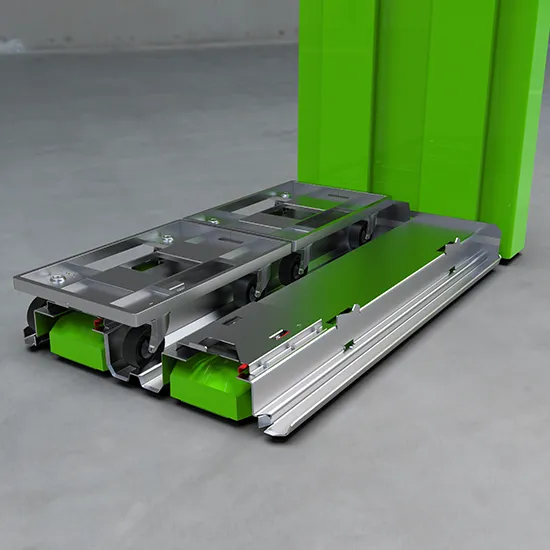

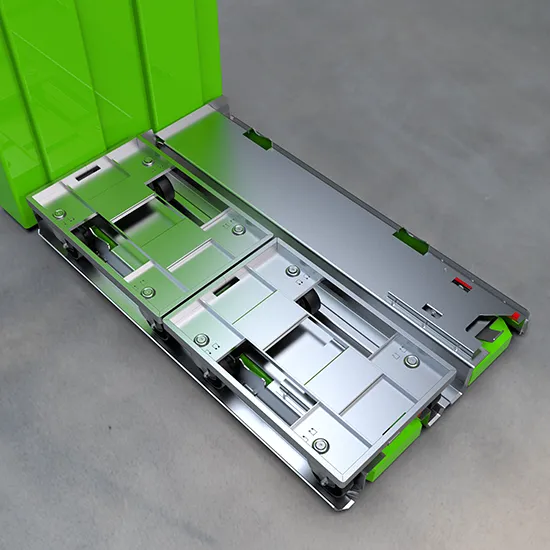

The FATH Adapter Pallet in the AGV module Agilox-proved

By courtesy of AGILOX Services GmbH

VERSIONS

Skip product gallery

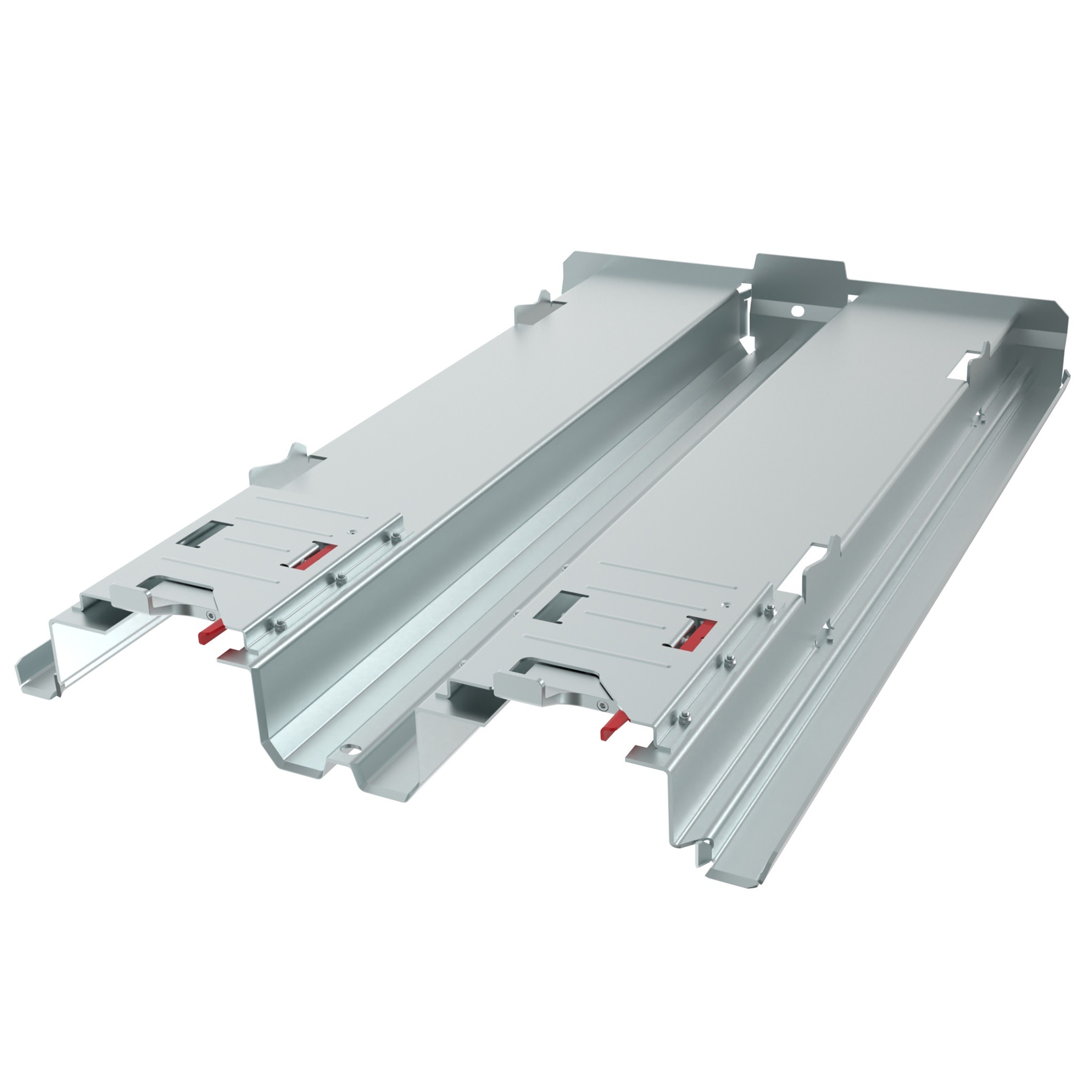

Adapter Pallet for Dollies
Delivery Countries:WorldwideDescription:For efficient transport of dollies 600 x 400 (4 pieces on one level), 800 x 600 (2 pieces on one level), or 1200 x 800 (1 piece on one level); Dollies can be loaded or stacked with other dollies as empties; The adapter pallet is roller conveyor, forklift and AGV compatible (AGV = automated guided vehicles) and locks the dollies automatically by lifting them from the forklift or AGVMaterial:SteelSurface:Zinc plated / plainZolltarifnummer:73269040000

€0.00*

CAD Downloads


TO CAD DOWNLOAD

FURTHER PRODUCT RECOMMENDATIONS

IDEAL ADDITION: FATH DOLLIES AND FATH ADAPTER PALLE

You can use the FATH Adapter Pallet immediately with your existing dollies. If you don‘t already have your own dollies, FATH Dollies are the ideal complement. The dollies are designed for all SLC/Euro 600 x 400 mm containers and offer maximum flexibility for small and medium lot sizes. As empties, they can be safely stacked and stored in a minimal amount space. The zinc plated steel frame can support up to 250 kg. The casters of the FATH Dollies are equipped with high-quality and extremely durable wheels from the manufacturer Blickle Germany. Wheel types for all application areas and usage scenarios are available, for example, particularly quiet-running, extremely non-slip, non-marking or ESD wheels.
