Product Portrait


FLOOR MARKING SHAPES AND FLOOR WINDOWS

Flexible and lean: Mark surfaces with self-adhesive FATH Floor Marking Shapes and Floor Windows

With the self-adhesive, dimensionally stable FATH Floor Marking Shapes and Floor Windows, you can implement visualizations immediately. They are simply stuck on at the desired location, are immediately available for foot or vehicle traffic and are easy to clean. They are suitable for almost all industrial floors and surfaces such as stone, concrete or metal.

Unlike paint or lacquer markings, there are no long drying times and no unpleasant odors. Thanks to the durable plastic surface suitable for industrial use, the floor shapes can withstand heavy stress from forklift trucks. Ideal for designating pallet storing positions.

For extreme loads, for example when moving pallets and lattice boxes or maneuvering forklifts, Floor Marking Shapes EXTRA Strong are also available.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • High adhesion and forklift-resistant
  • Suitable for virtually all industrial floors
  • Pre-punched shapes in L/T/I/ foot shape
  • Windows in different DIN formats
  • Scannable
  • Very dimensionally stable: adhesion without prior marking
  • Available in several colors
  • Available in different stress classes

FATH Floor Marking Shapes: now also in EXTRA Strong

For heavy-duty use, there are the Floor Marking Shapes as EXTRA Strong versions. They are dimensionally stable even when moving pallets and lattice boxes or maneuvering forklifts.

Icon-Plus-white.svg?ts=1743167971Another Advantage:

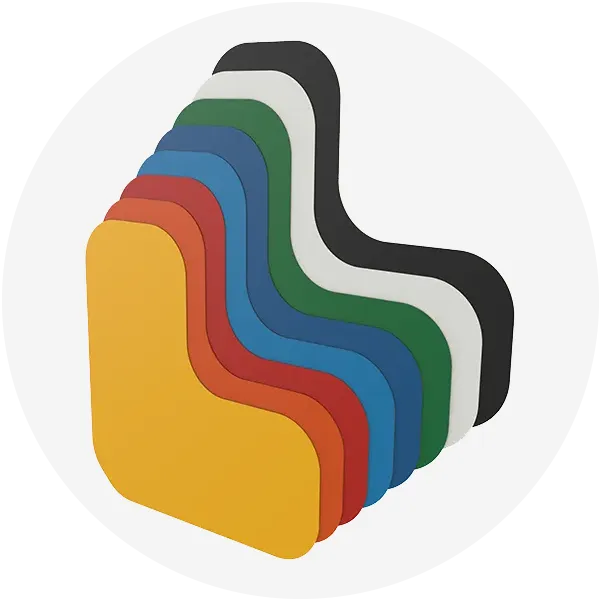

The Floor Marking Shapes EXTRA Strong are additionally available in a rounded version.

FATH Floor Marking Shapes:

pre-punched for immediate application

The practical FATH Foor Marking Shapes come pre-punched. Easy to attach, these provide secure and effective storage space labeling in production and warehousing. After they are attached, the floor shapes can be walked on and driven on immediately. Areas for pallets, shelving, containers, dollies, etc. can be precisely marked – creating a strong visual effect. Generally the L shape is used for side boundaries and the T shape is used for demarcation marks between two storage positions. Floor labeling allows you to create a clear structuring of surfaces and areas, reduce the amount of floor space needed and assist staff in working efficiently.

FATH Floor Windows: forklift-resistant, scratch-resistant and scannable

What's special about FATH Floor Windows: The print for the colored frame is applied on the inside. This allows the signal color to be fully enclosed and thus provides permanent protection against wear and scratches. The color also remains visible after prolonged use – even heavy use in areas driven over cannot harm the floor windows.

Documents in various sizes up to DIN A4 are inserted behind the transparent plastic window and can be scanned through the viewing window. The 40 mm frame width ensures immediate recognition, even from a distance. The document assures you that the material is available in the right position.

DESIGNING INDIVIDUAL SIGNS WITH FATH FLOOR WINDOWS

FATH Floor Windows are also ideal for designing individual signs or warning notices based on your needs. Simply place the printed documents with the required information behind the viewing window and stick on the bottom window.

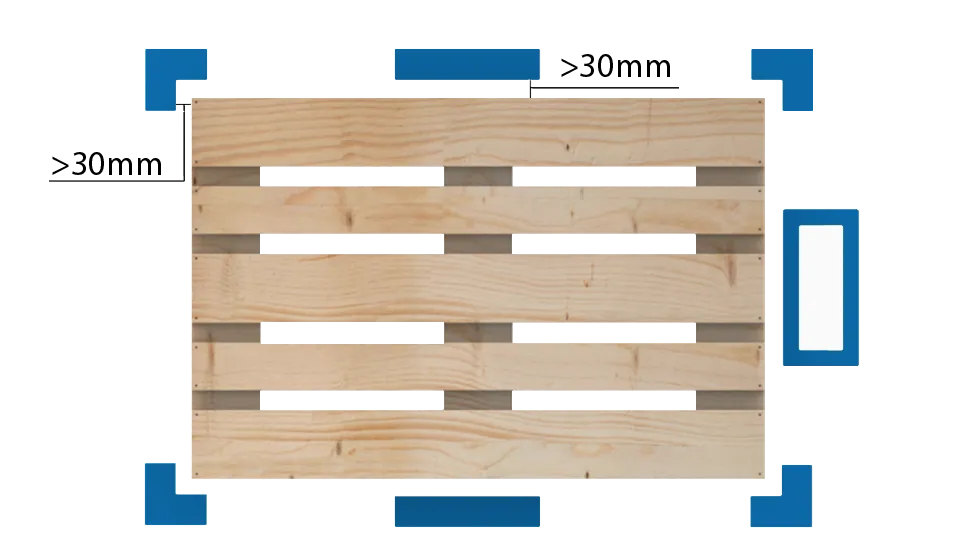

When the floor marking shapes are affixed with a spacing of approx. 30 millimeters to the provisioning areas, they are well protected against wear and tear.

WOULD YOU LIKE TO Test THE FATH FLOOR MARKING SHAPES?

With our sample package, you can quickly decide whether the product is right for you.


Go to sample packages

VERSIONS

The self-adhesive Floor Marking Shapes and Floor Windows are available in the following versions:

FATH FLOOR MARKING SHAPES

Formats:

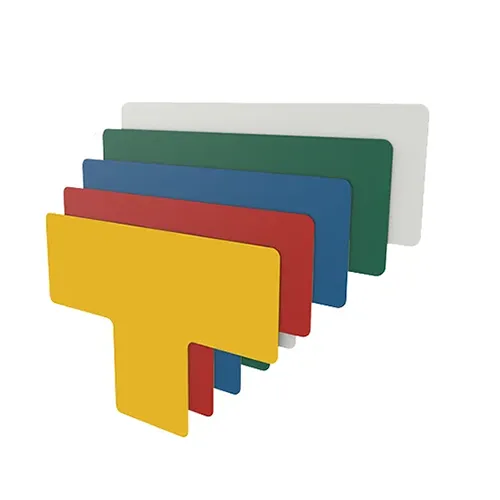

  • T shape*
  • L shape*
  • I shape*
  • Foot shape

* also available in EXTRA Strong

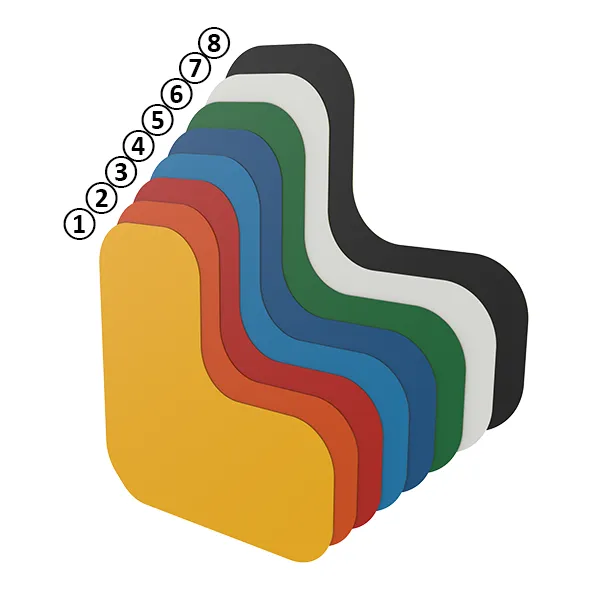

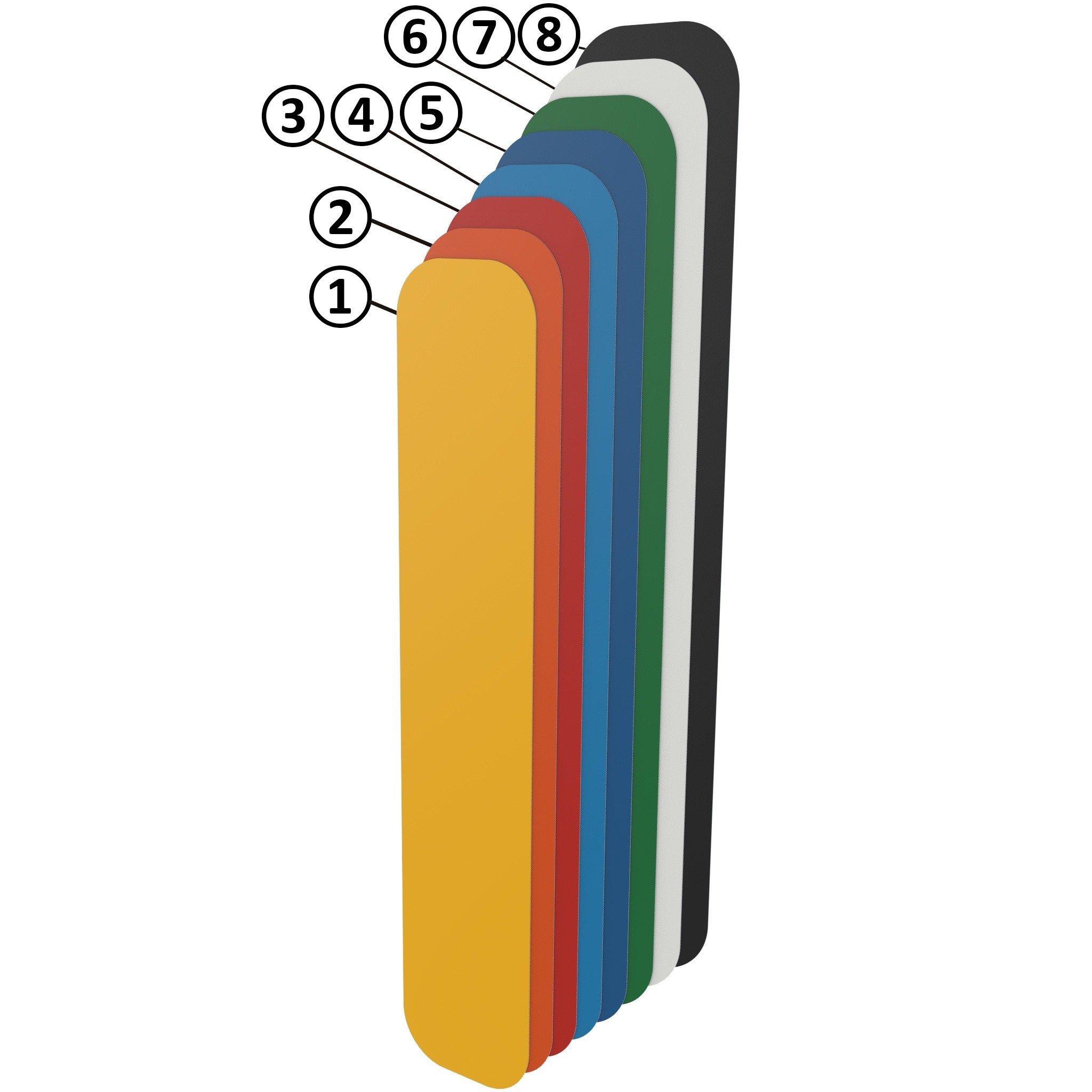

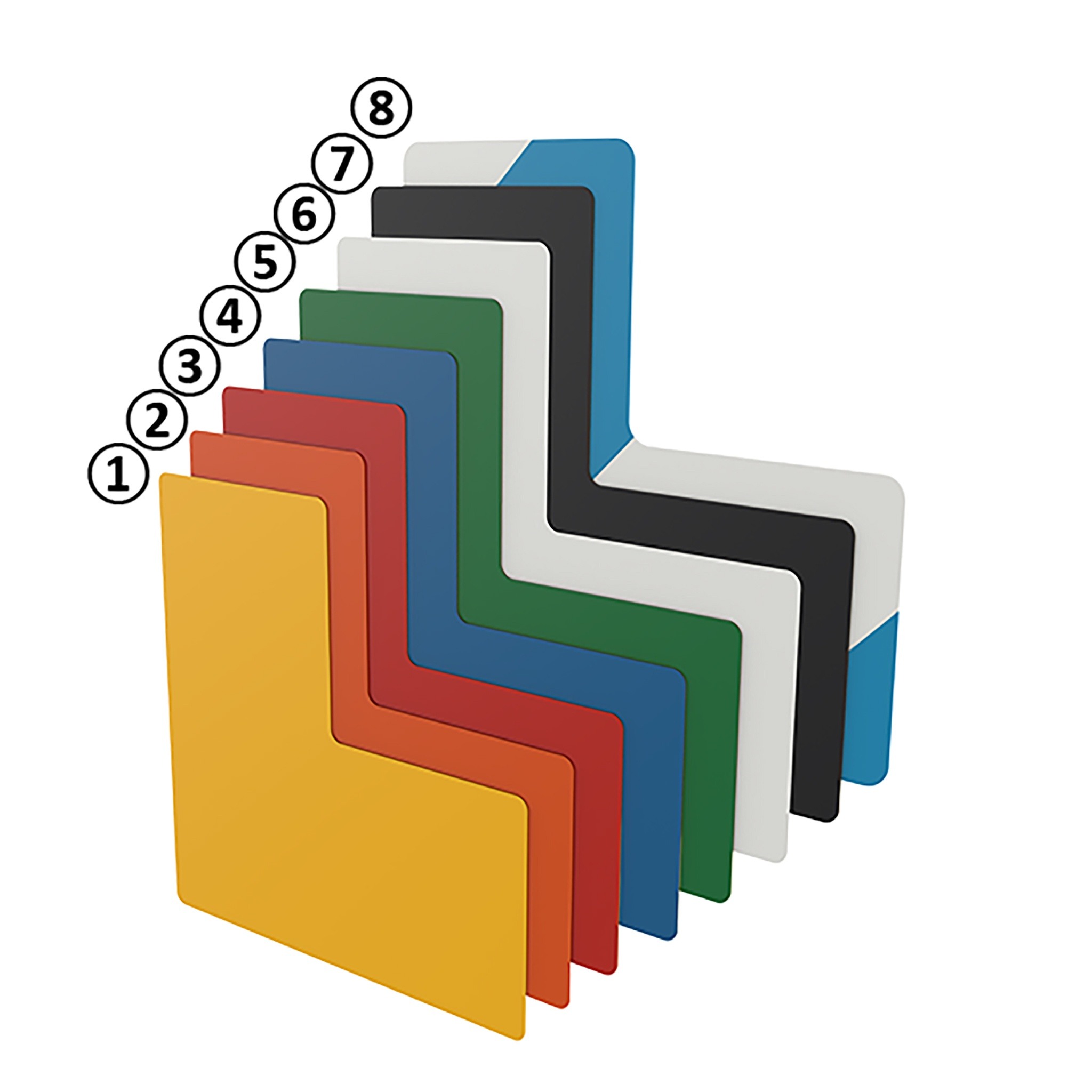

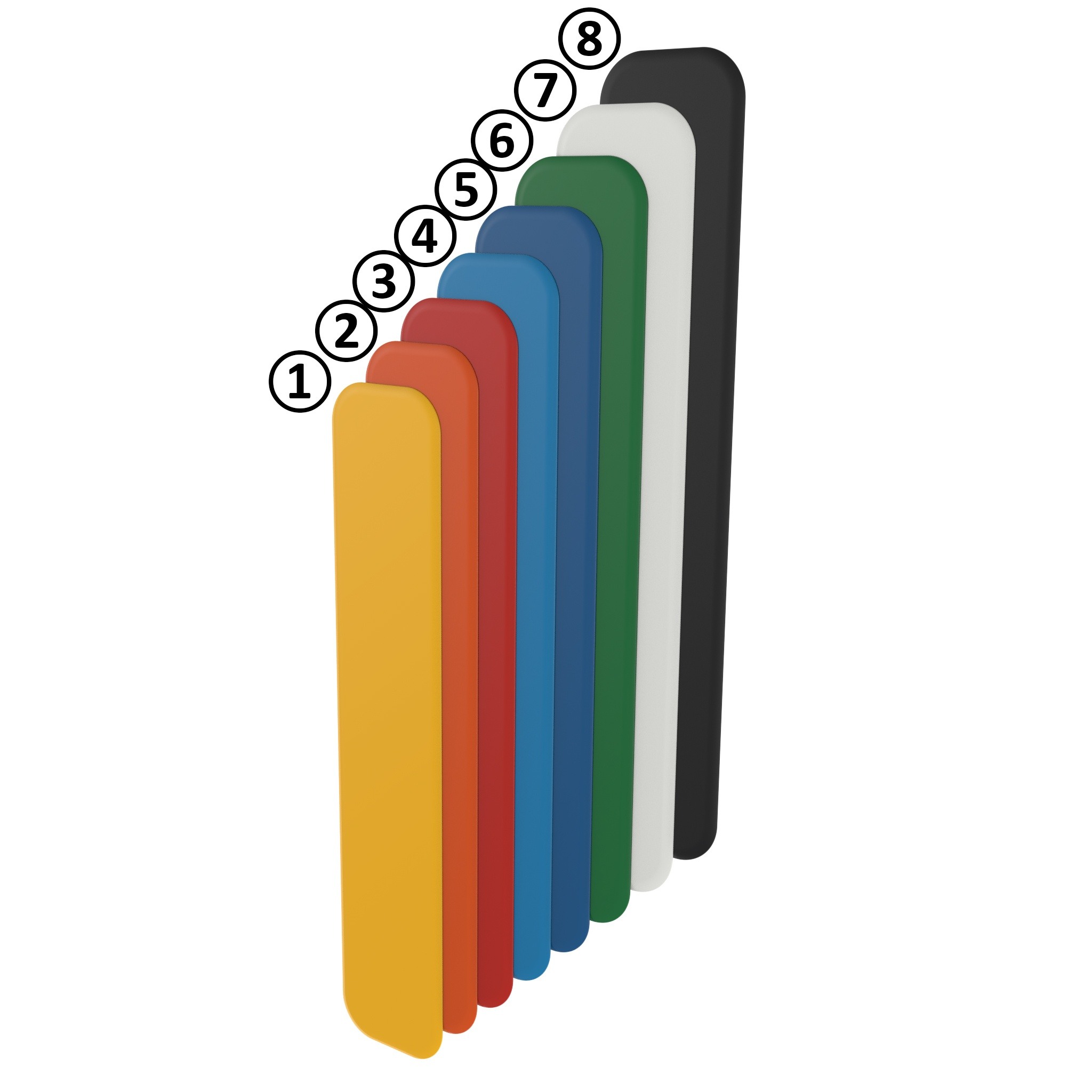

Colors:

  • ① yellow
  • ② orange
  • ③ red
  • ④ light blue
  • ⑤ blue
  • ⑥ green
  • ⑦ white
  • ⑧ black
Skip product gallery

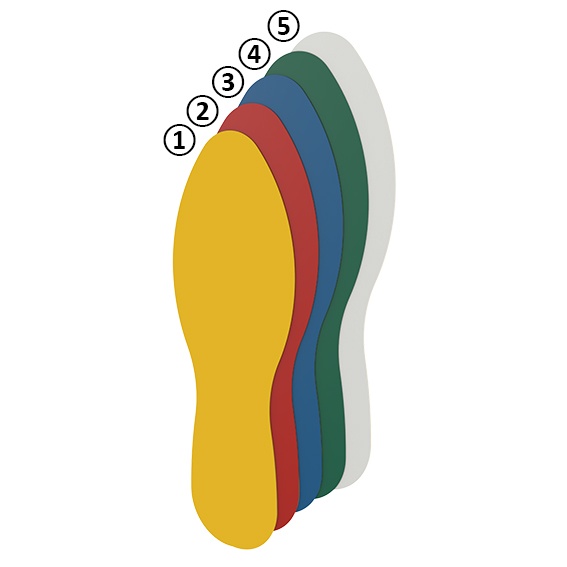

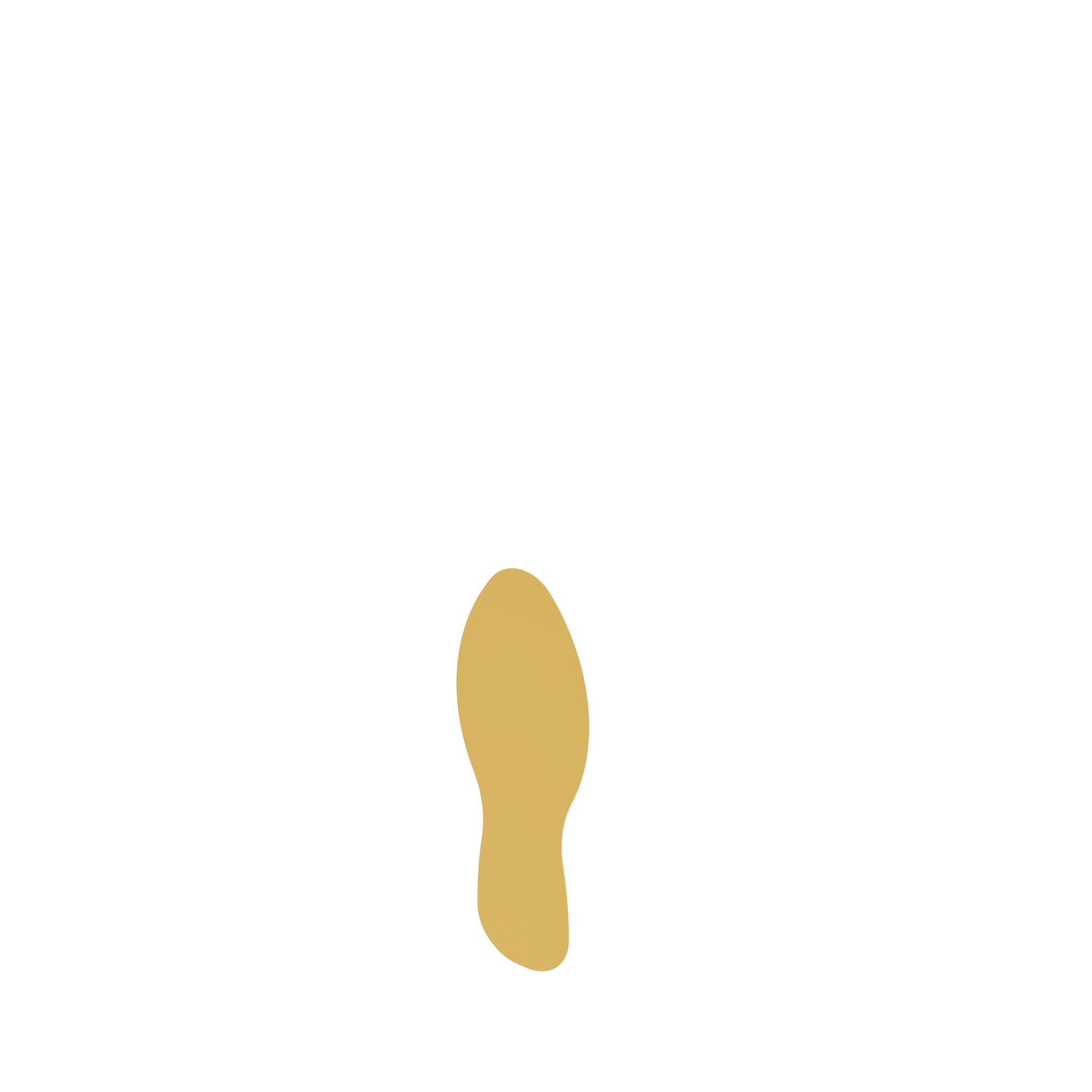

Floor Marking Foot Shape 90
Color: Green ≈ RAL 6016 | Fig.:
Color:Yellow, red, blue, green, whiteDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCZolltarifnummer:39199080990

€0.00*

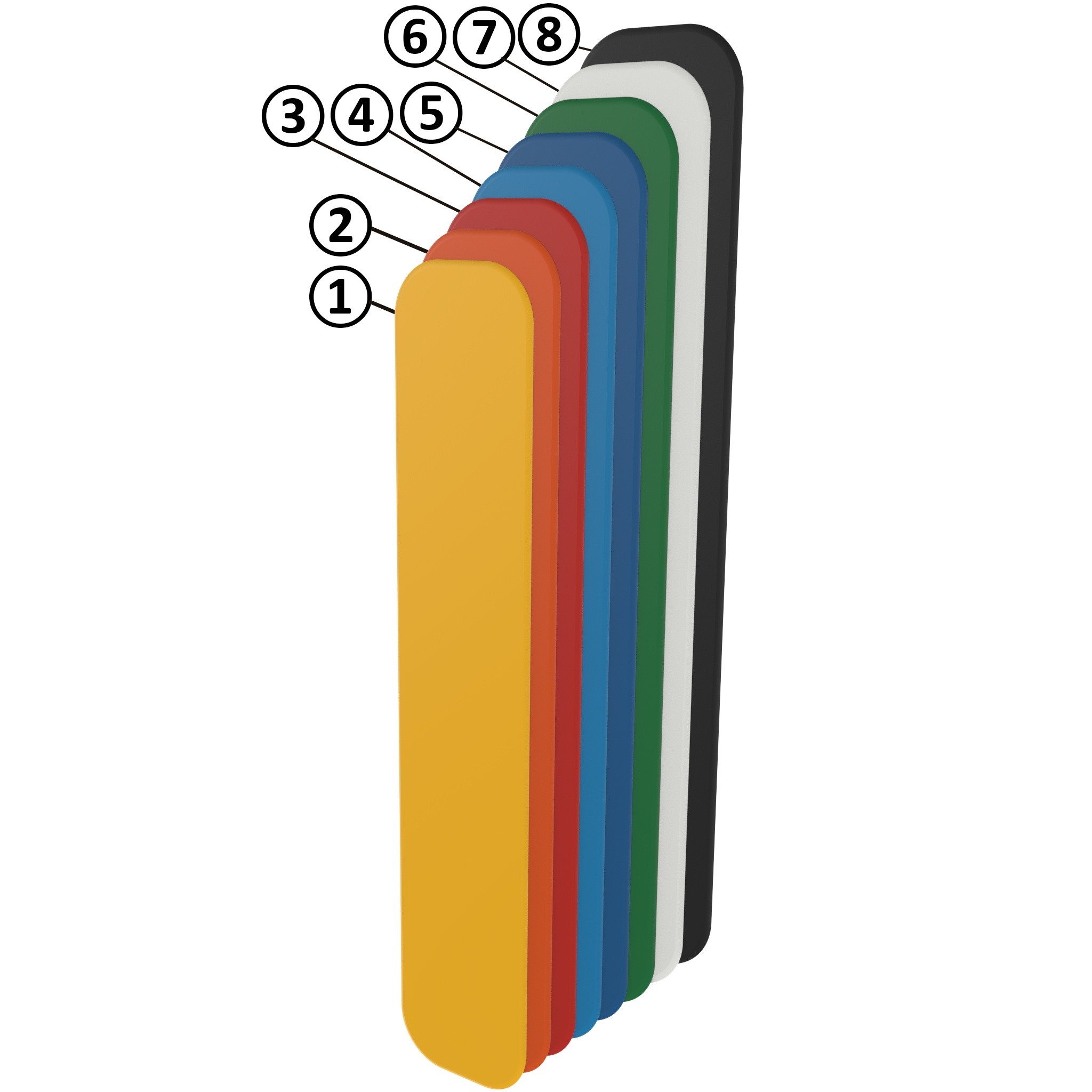

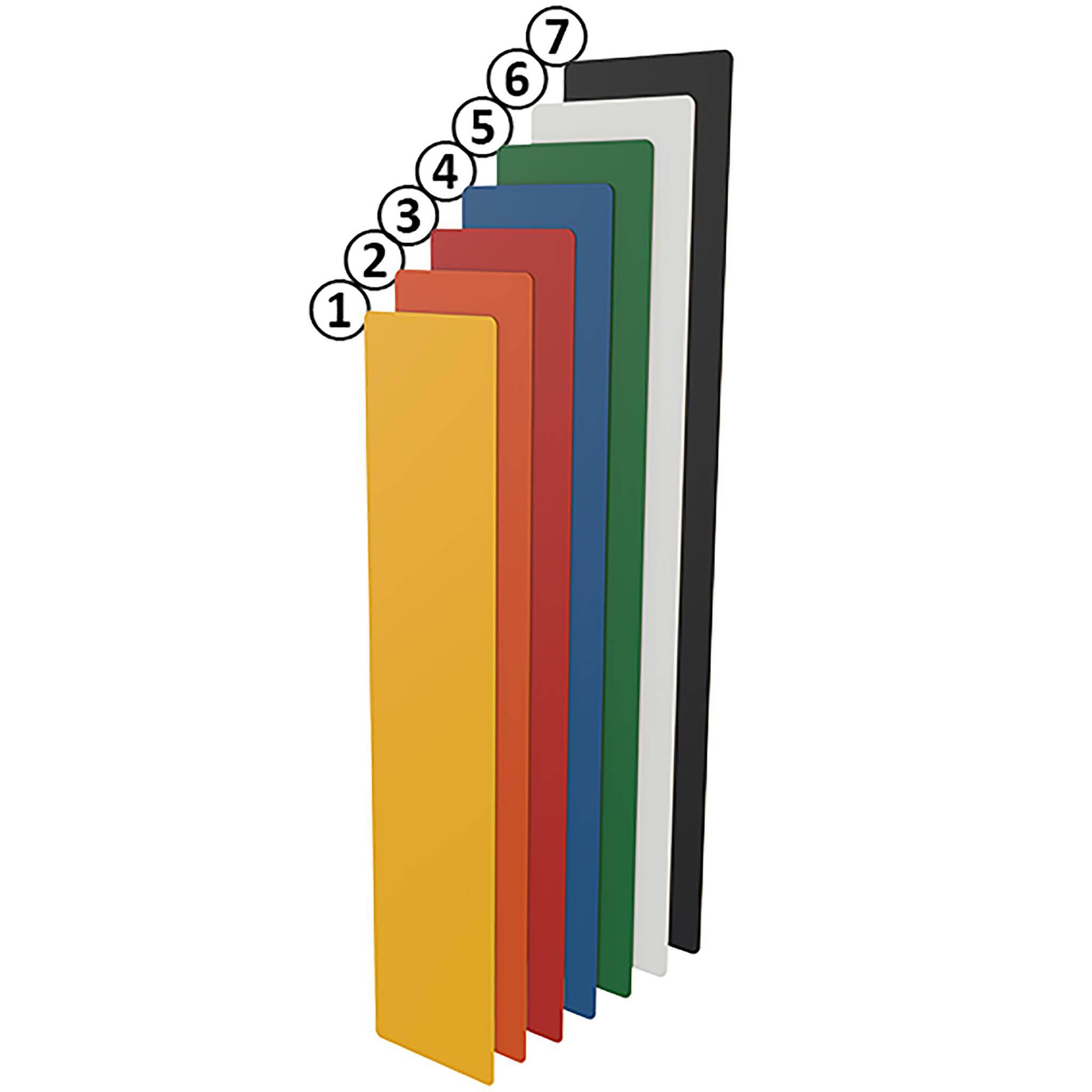

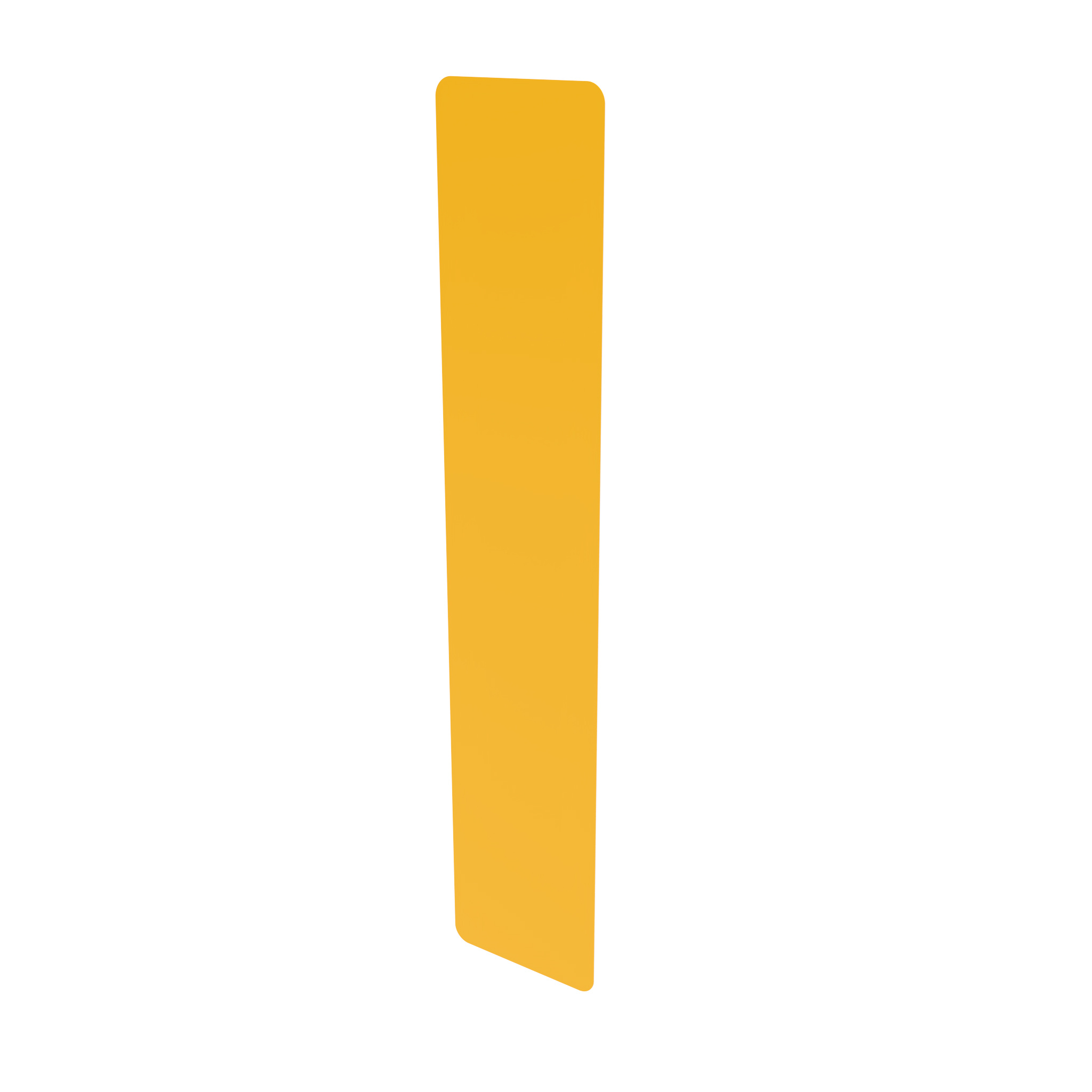

Floor Marking I-shape 100
Color: Green ≈ RAL 6016 | Fig.:
Color:Yellow, orange, red, blue, green, white, blackDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCTip:Compatible Floor Marking Tape 100 see 0203T10015Zolltarifnummer:39199080990

€0.00*

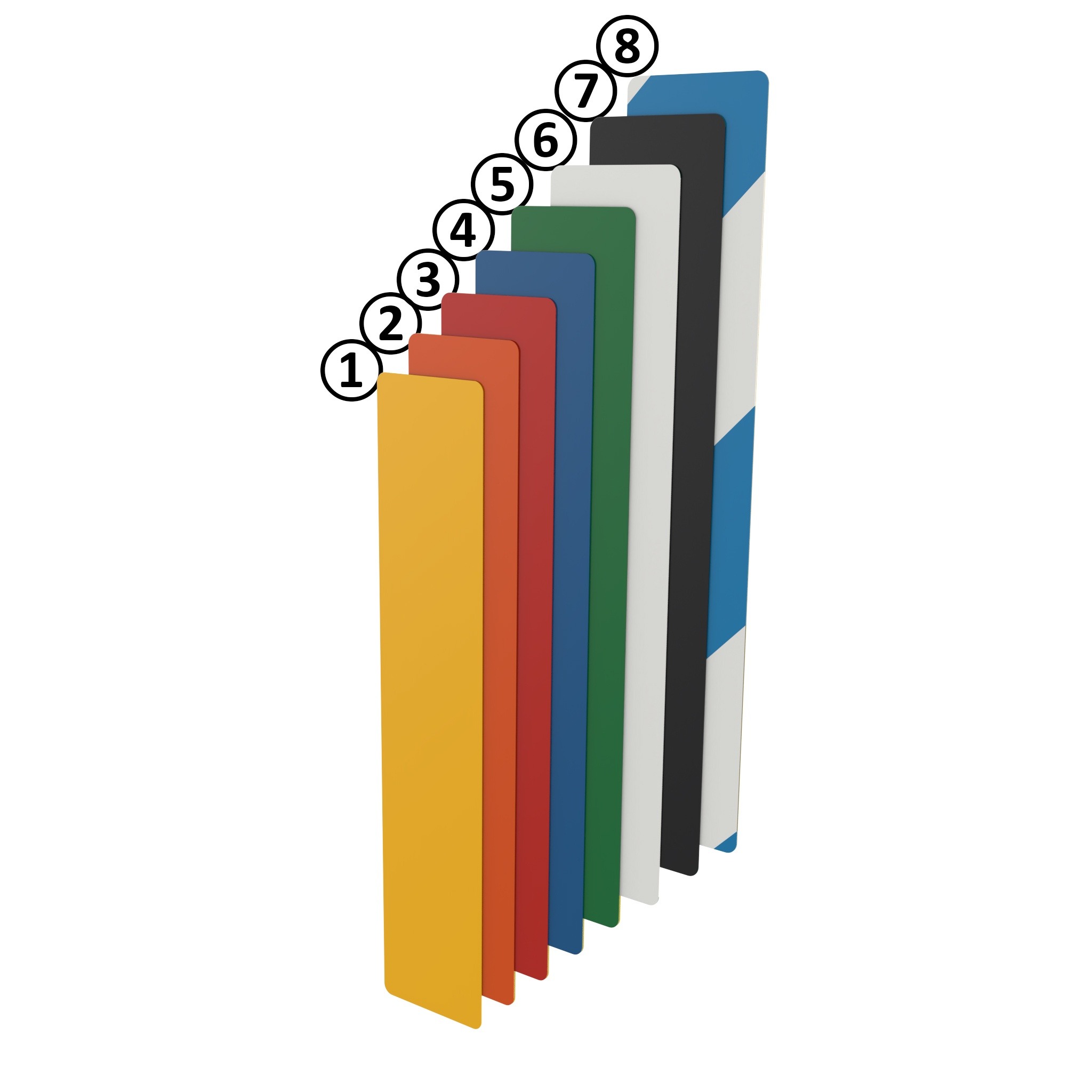

Floor Marking I-shape 50
Color: Red ≈ RAL 3020 | Fig.:
Color:Yellow, orange, red, blue, green, white, black, blue / whiteDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCTip:Suitable Floor Marking Tape 50 see 0203T05015Zolltarifnummer:39199080990

€0.00*

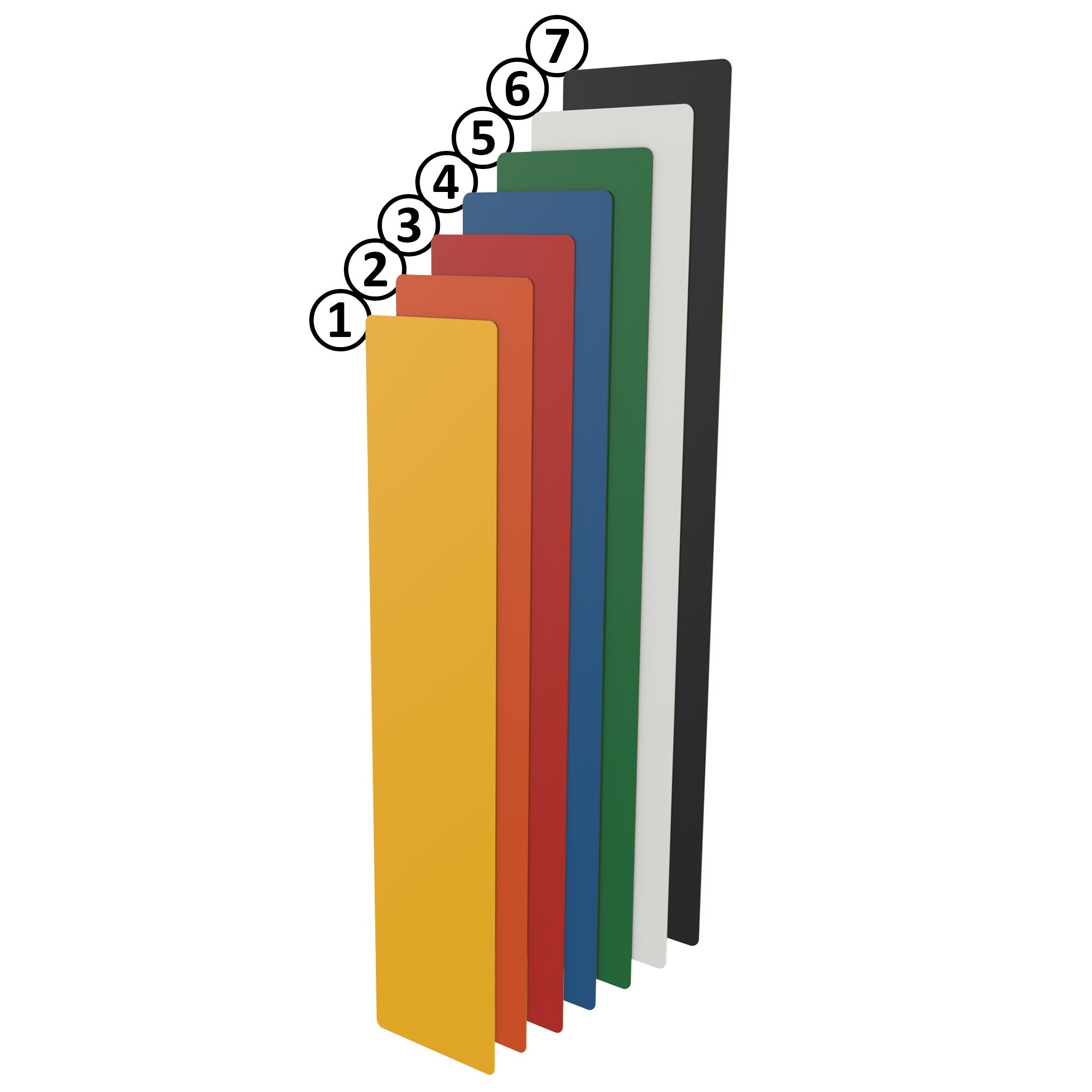

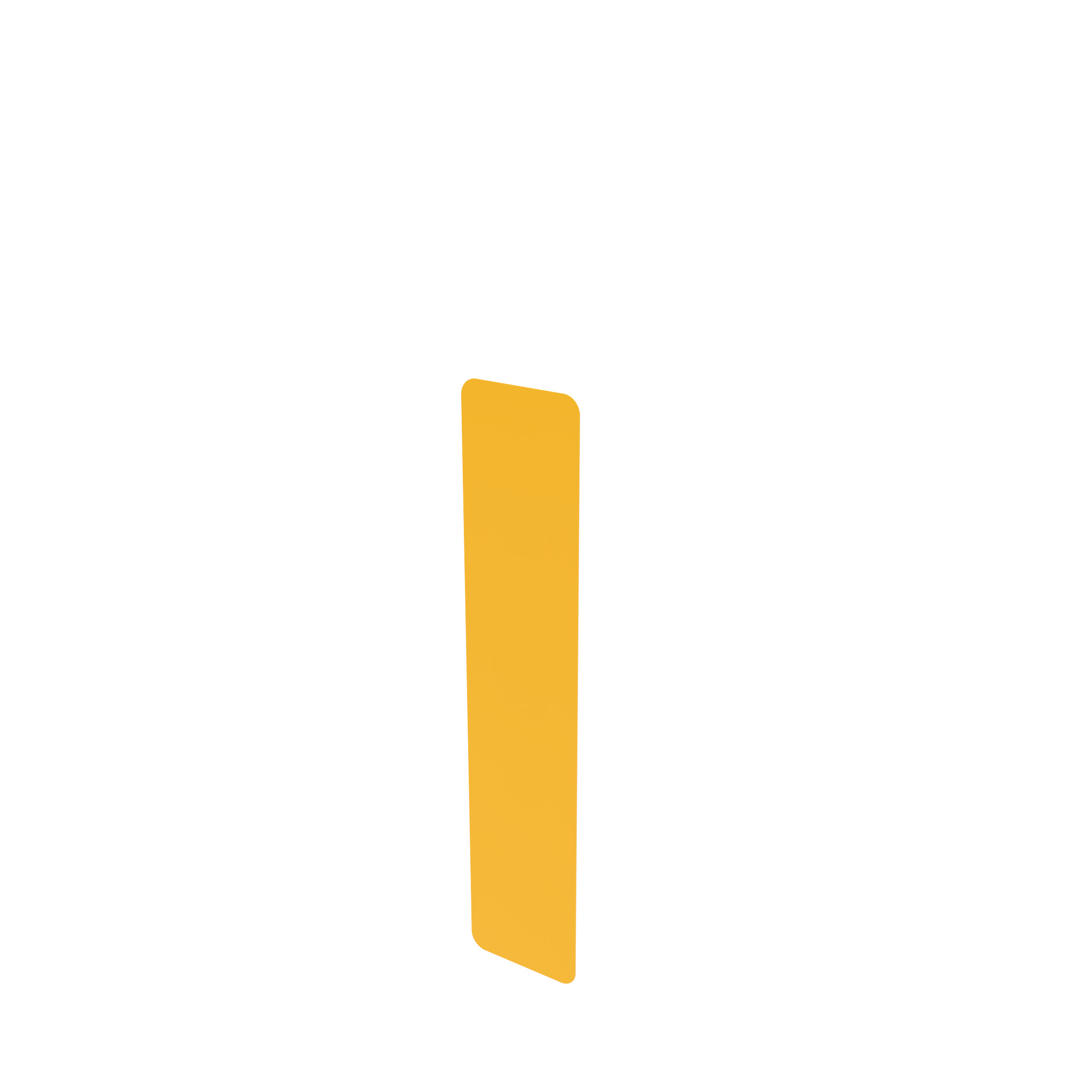

Floor Marking I-shape 75
Color: White ≈ RAL 9003 | Fig.:
Color:Yellow, orange, red, blue, green, white, blackDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCTip:Suitable Floor Marking Tape 75 see 0203T07515Zolltarifnummer:39199080990

€0.00*

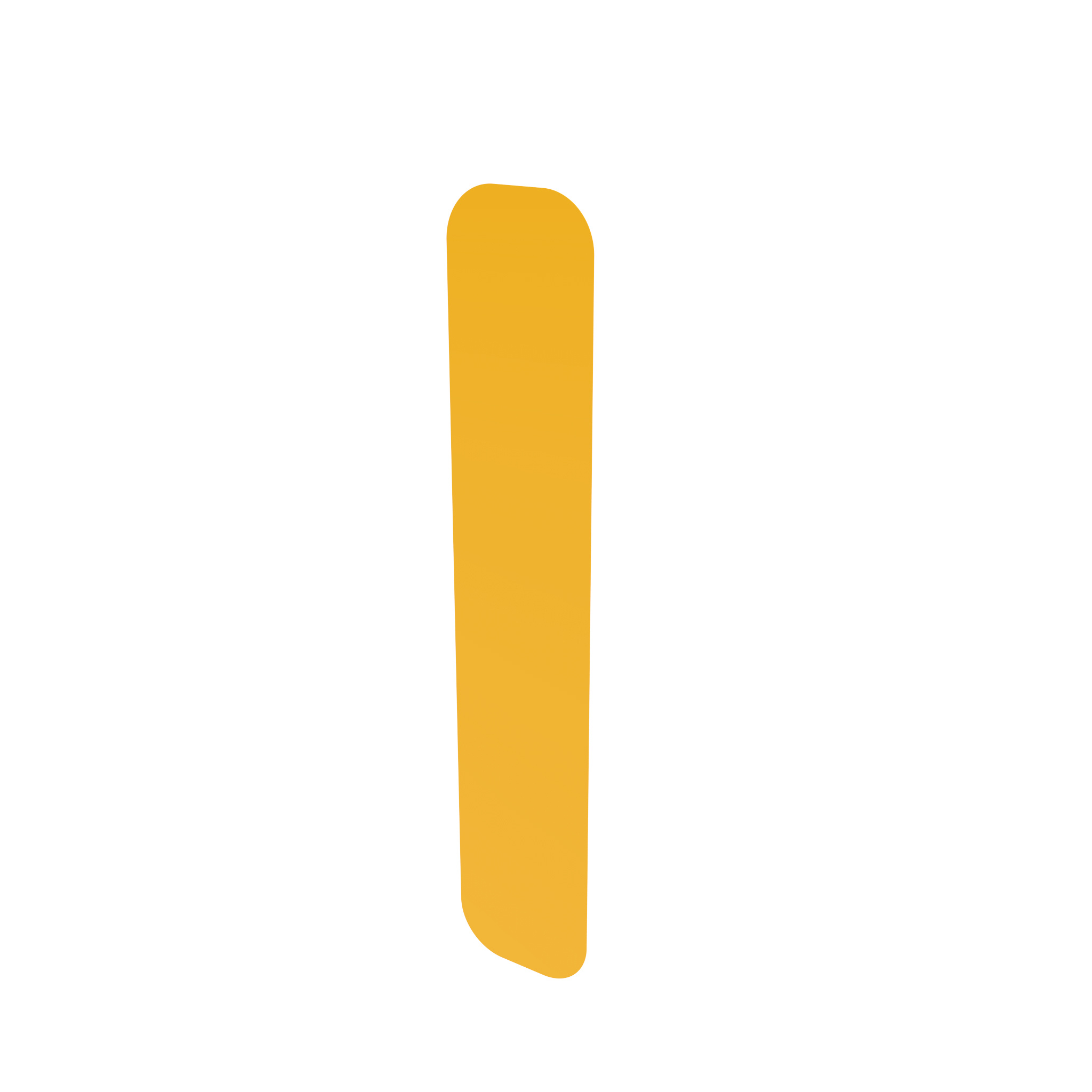

Floor Marking I-shape 90, Rounded
Color: Black | Fig.:
Color:Yellow, orange, red, blue, green, white, blackDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCZolltarifnummer:39199080990

€0.00*

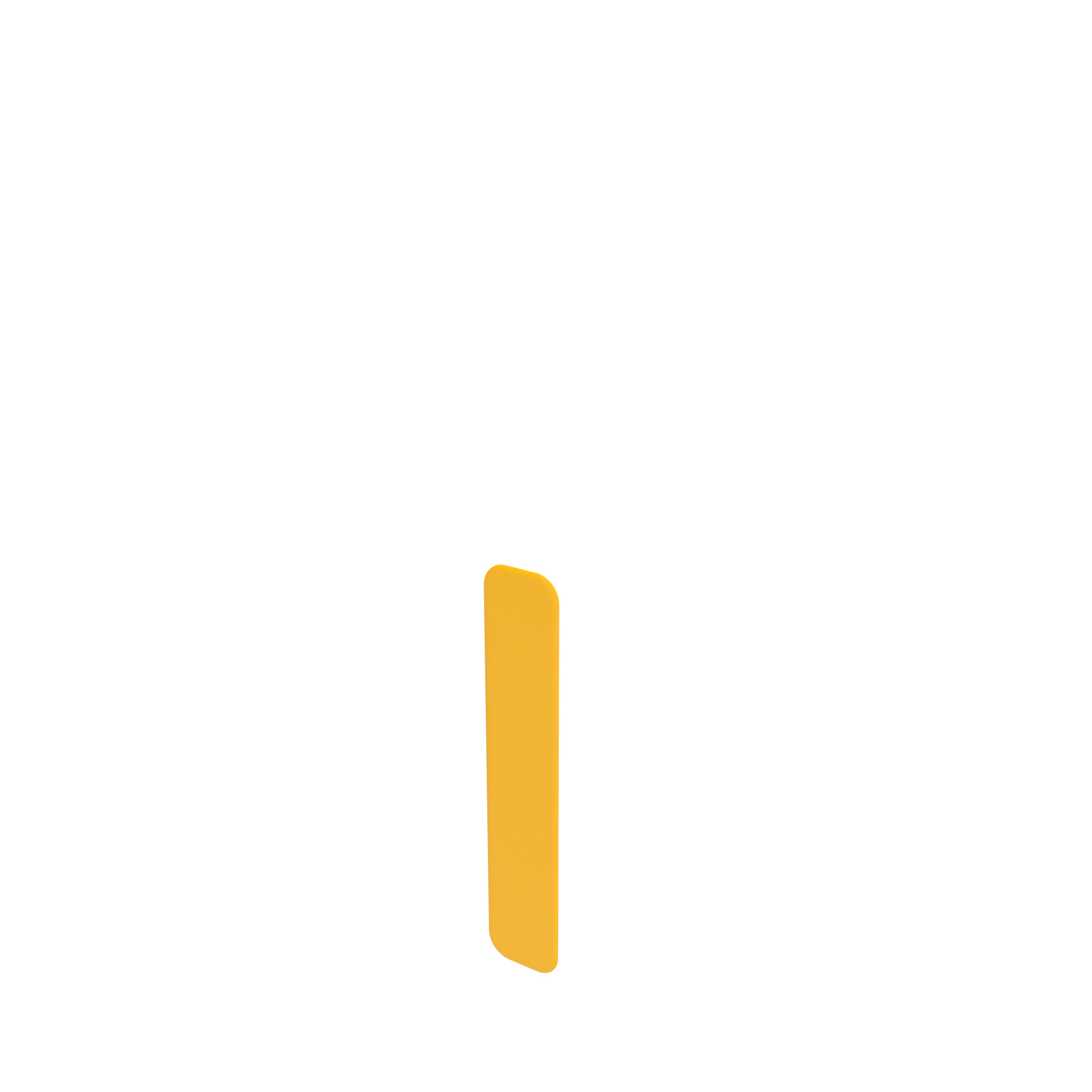

Floor Marking I-shape EXTRA Strong 50
Color: Orange ≈ RAL 2009 | Fig.:
Color:Yellow, orange, red, blue, green, white, blackDelivery Countries:WorldwideDescription:Extra strong and long-lasting floor marking for easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and extra dimensionally stable floor marking with outstanding adhesive strength, suitable for almost all industrial floors; With rounded edges for optimum absorption of transverse and high loads such as lattice boxes, euro pallets, etc.Material:Plastic PAZolltarifnummer:39199080990

€0.00*
Floor Marking I-shape EXTRA Strong 90, Rounded
Color: Black ≈ RAL 9005 | Fig.:
Color:Yellow, orange, red, blue, green, white, blackDelivery Countries:WorldwideDescription:Extra strong and long-lasting floor marking for easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and extra dimensionally stable floor marking with outstanding adhesive strength, suitable for almost all industrial floors; With rounded edges for optimum absorption of transverse and high loads such as lattice boxes, euro pallets, etc.Material:Plastic PVCZolltarifnummer:39199080990

€0.00*

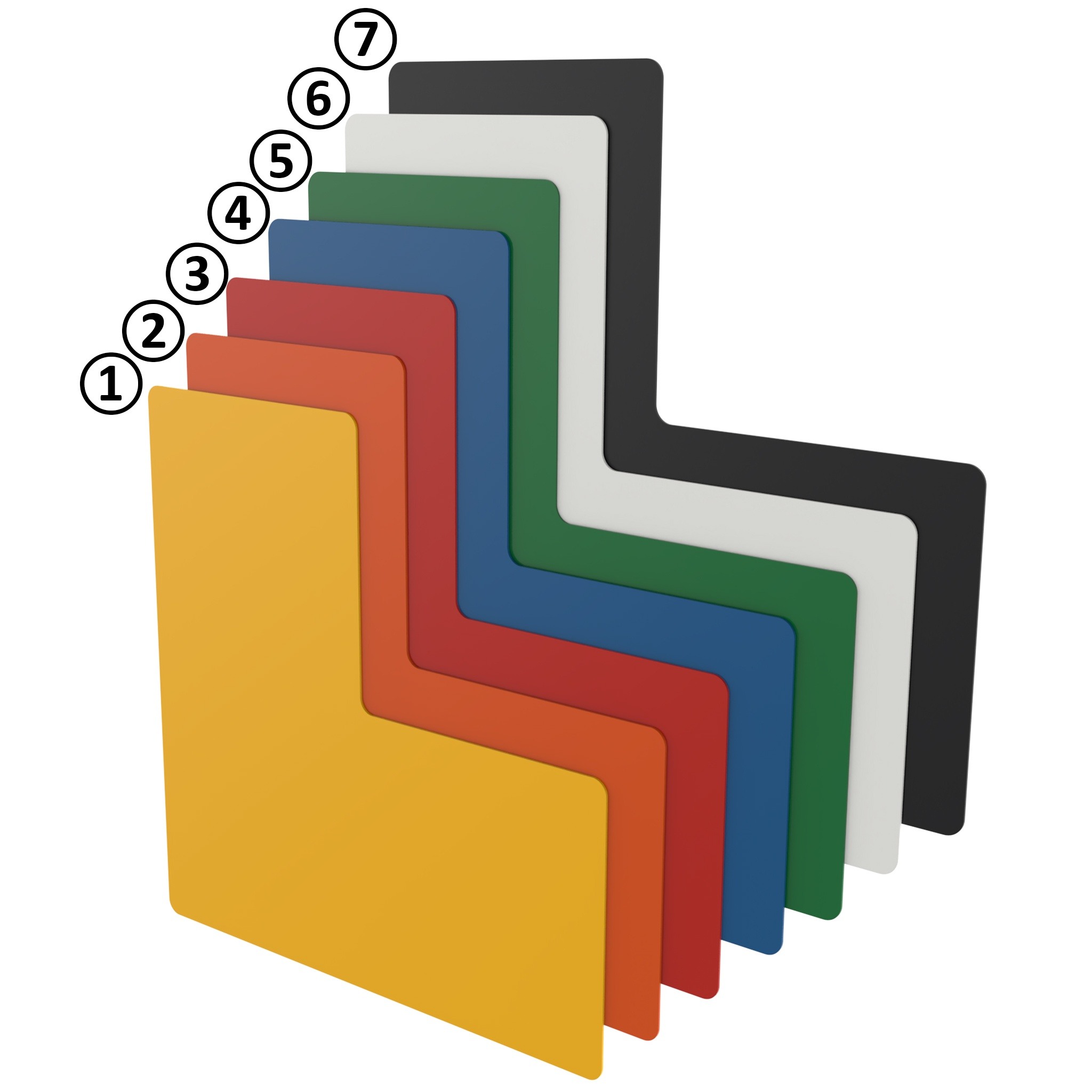

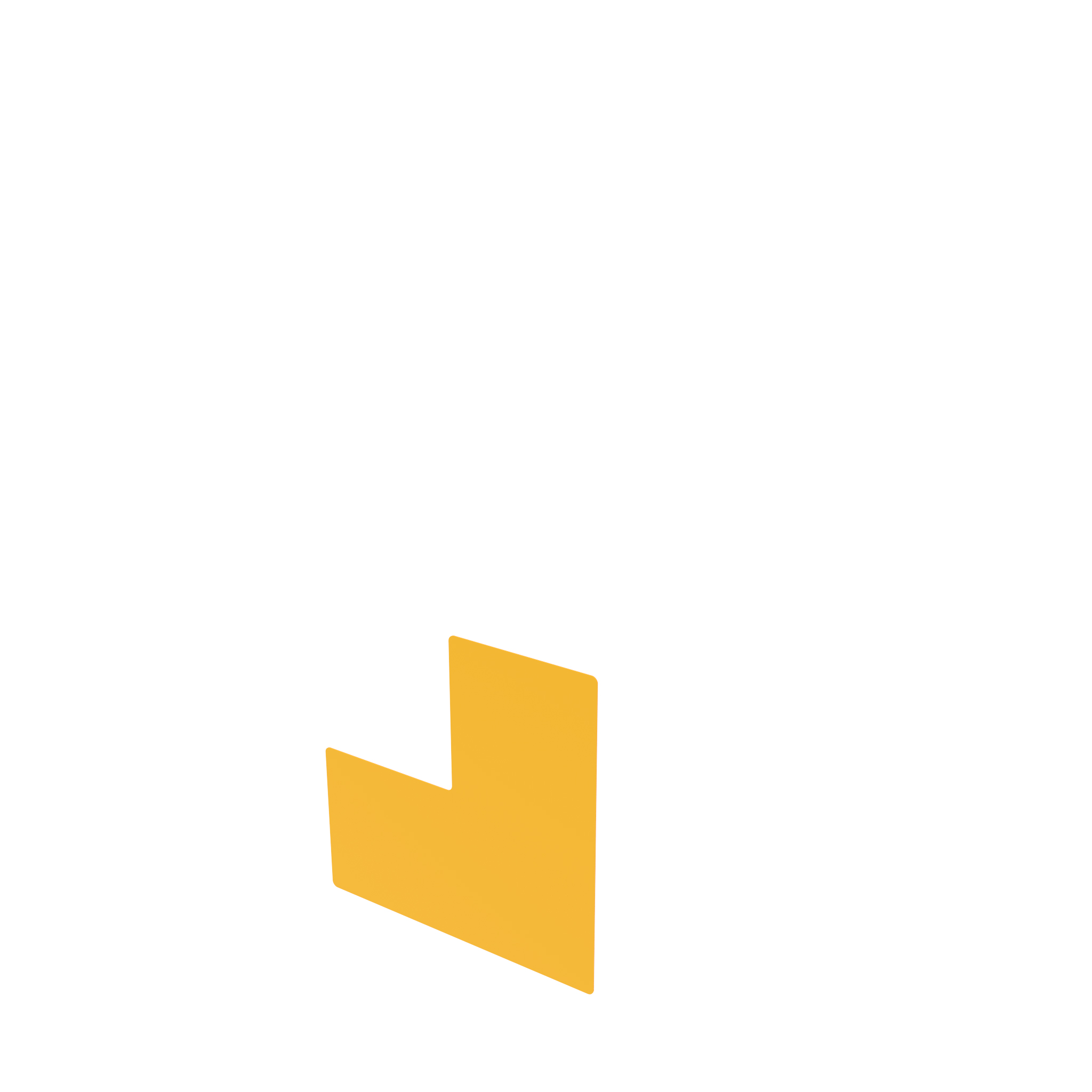

Floor Marking L-shape 100
Color: Blue ≈ RAL 5017 | Fig.:
Color:Yellow, orange, red, blue, green, white, blackDelivery Countries:WorldwideDescription:For easy and reliable marking of path boundaries, stairs, parking / storage / working areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCTip:Compatible Floor Marking Tape 100 see 0203T10015Zolltarifnummer:39199080990

€0.00*

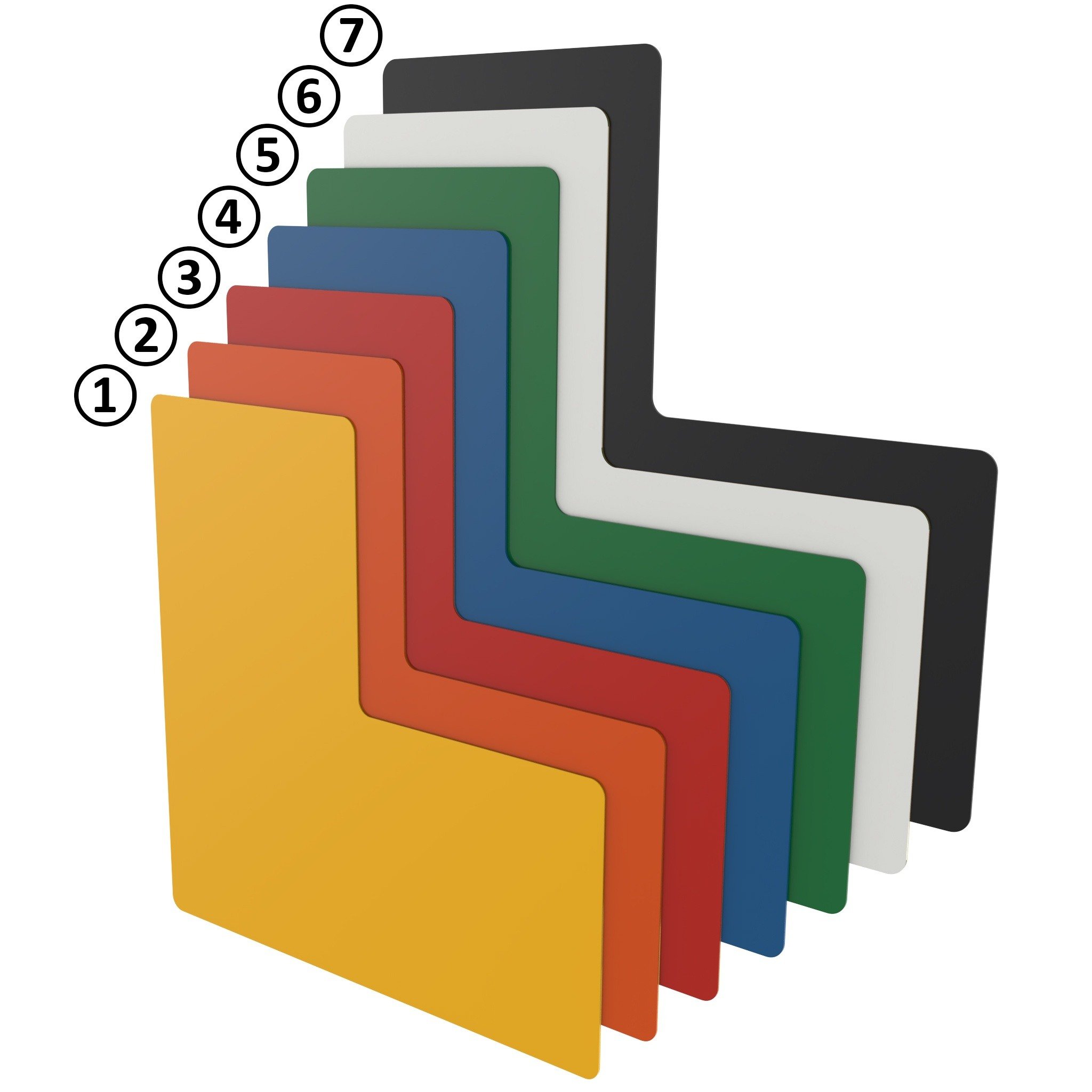

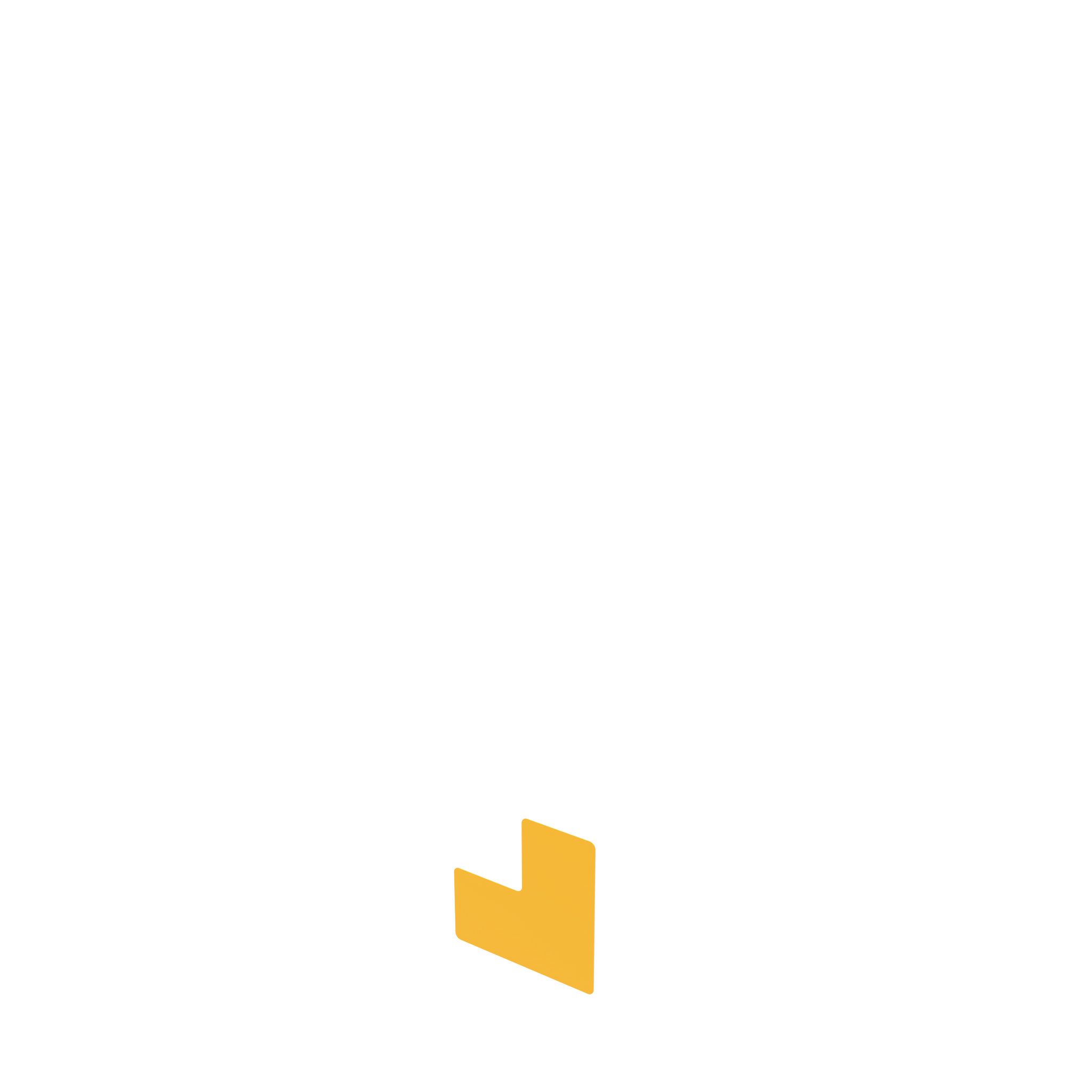

Floor Marking L-shape 50
Color: White ≈ RAL 9003 | Fig.:
Color:Yellow, orange, red, blue, green, white, black, blue / whiteDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCTip:Suitable Floor Marking Tape 50 see 0203T05015Zolltarifnummer:39199080990

€0.00*

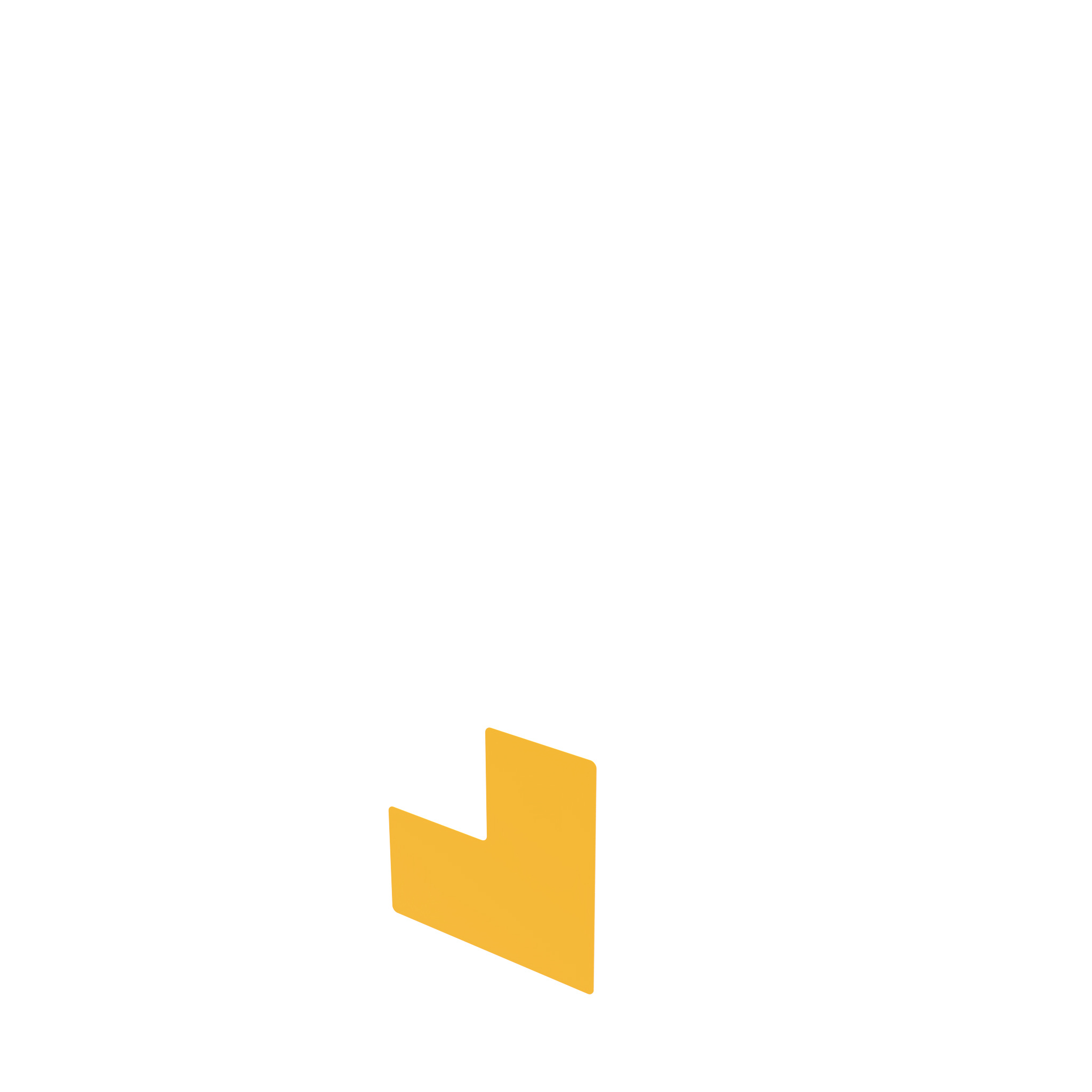

Floor Marking L-shape 75
Color: Red ≈ RAL 3020 | Fig.:
Color:Yellow, orange, red, blue, green, white, blackDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor marking with outstanding adhesive strength, suitable for almost all industrial floorsMaterial:Plastic PVCTip:Suitable Floor Marking Tape 75 see 0203T07515Zolltarifnummer:39199080990

€0.00*

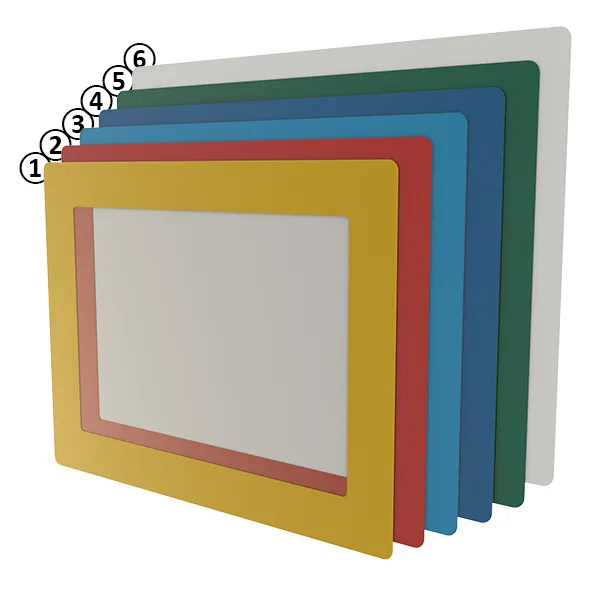

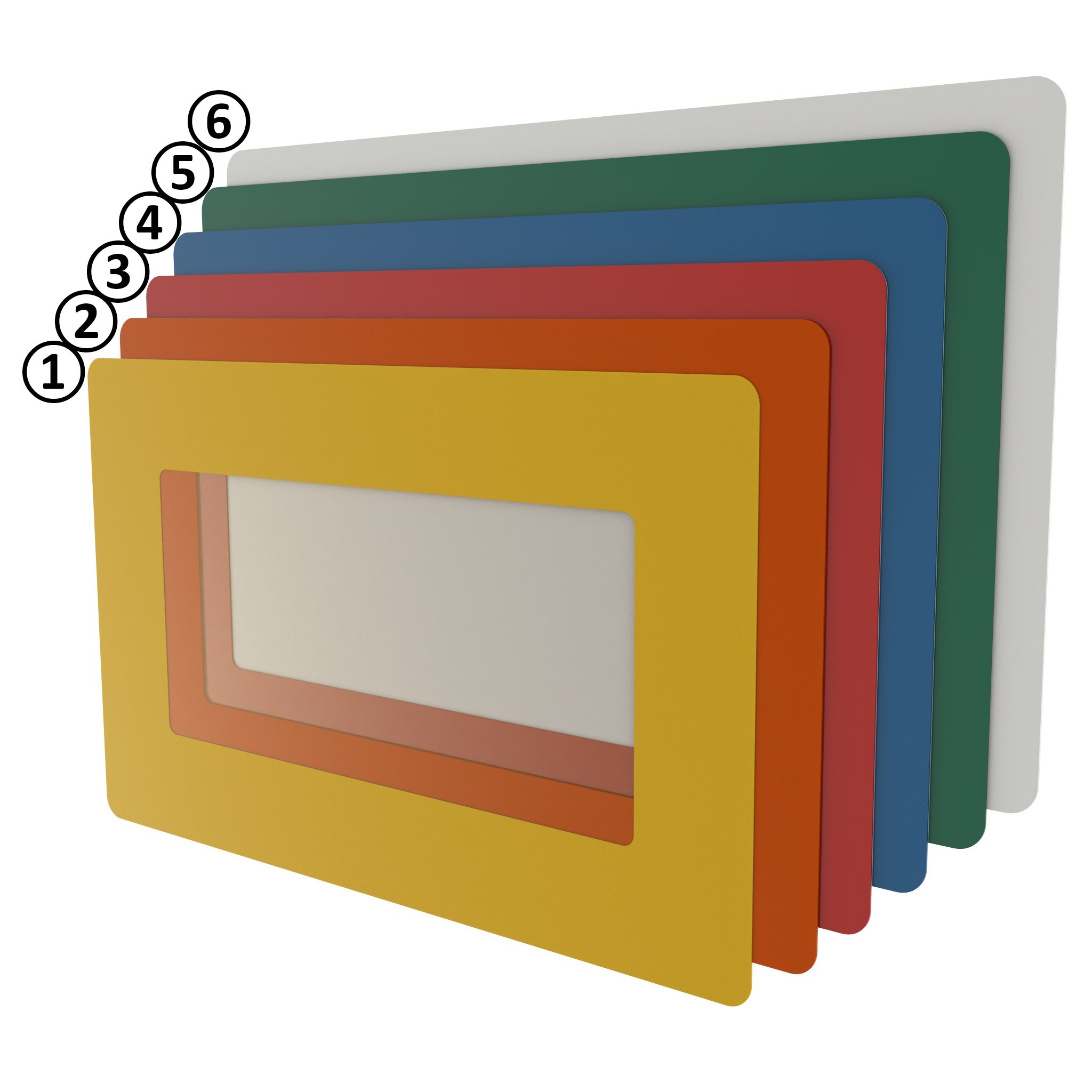

FATH FLOOR WINDOWS

Formats:

  • DIN A4
  • 1/2 DIN A4 landscape
  • 1/3 DIN A4 portrait
  • 1/3 DIN A 4 landscape

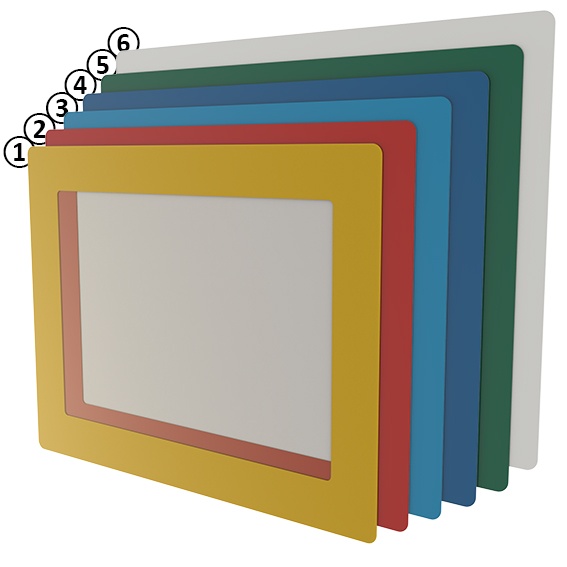

Colors:

  • ① yellow
  • ② red
  • ③ light blue
  • ④ blue
  • ⑤ green
  • ⑥ white
Skip product gallery

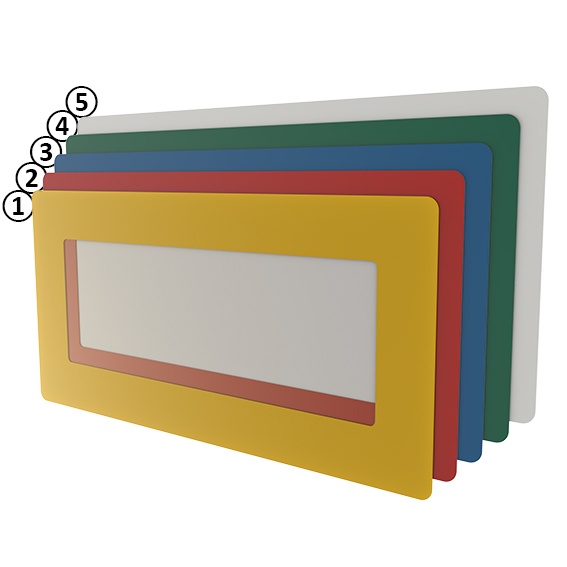

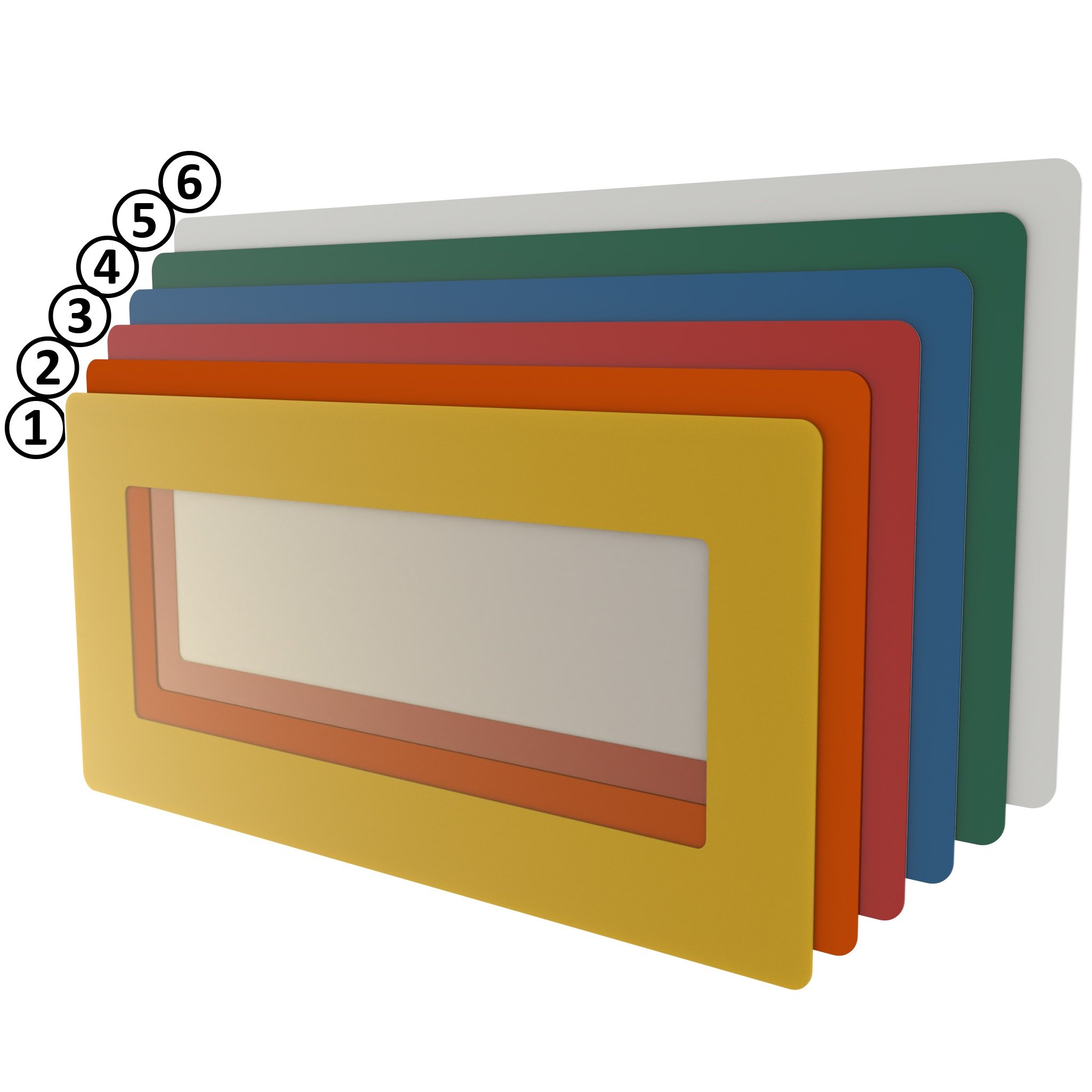

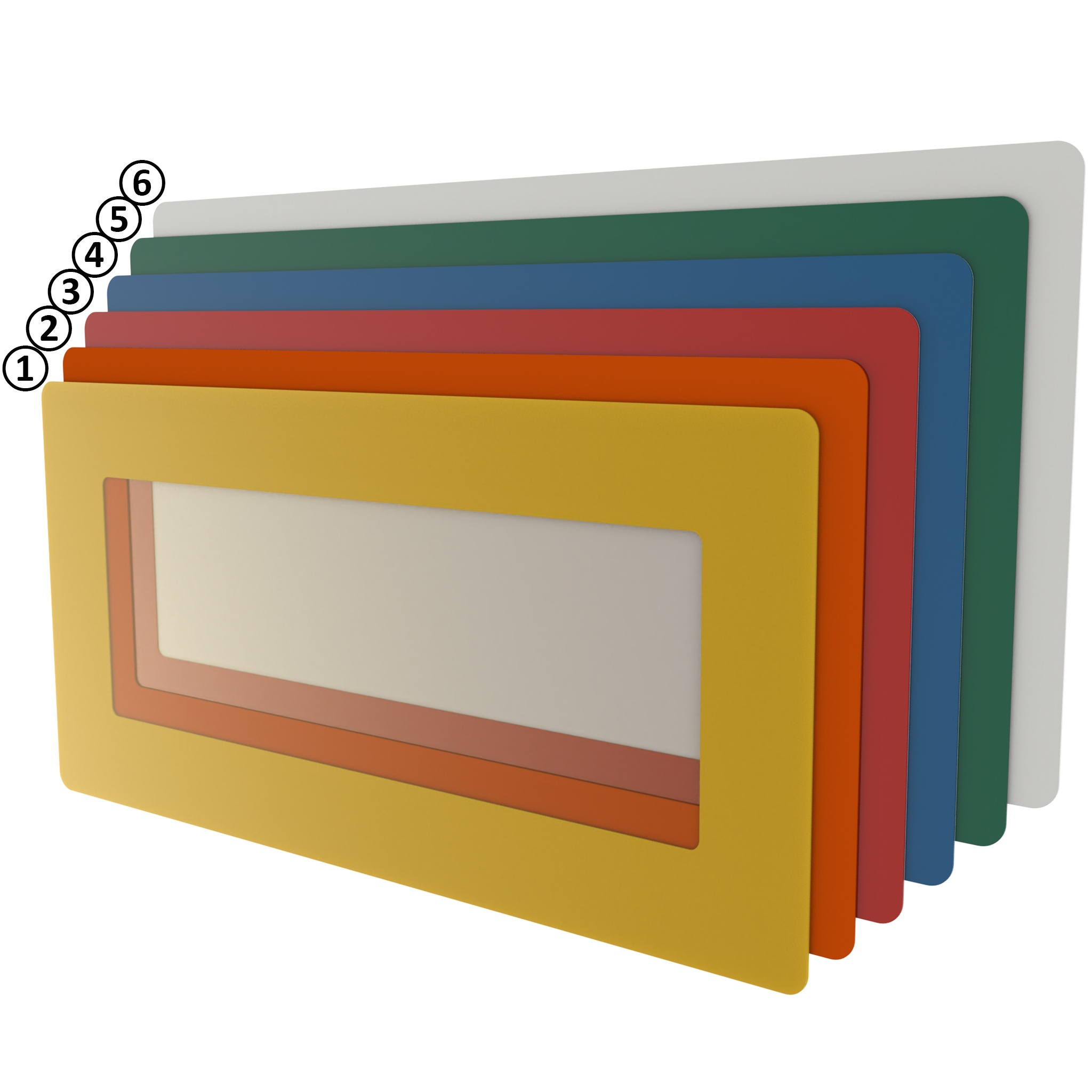

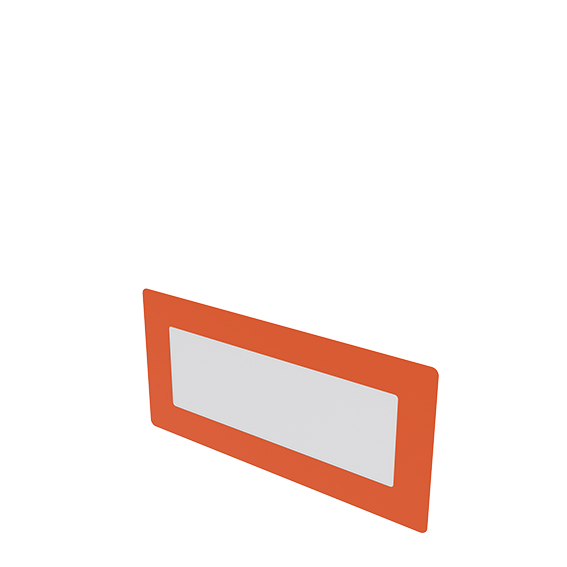

Floor Window 1/2 DIN A4 Landscape - 11.7" x 4.1"
Color: Blue ≈ RAL 5017 | Fig.:
Color:Yellow, red, blue, green, whiteDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor window with outstanding adhesive strength, suitable for almost all industrial floors Scanner-compatibleMaterial:Plastic PVCZolltarifnummer:39199080990

€0.00*

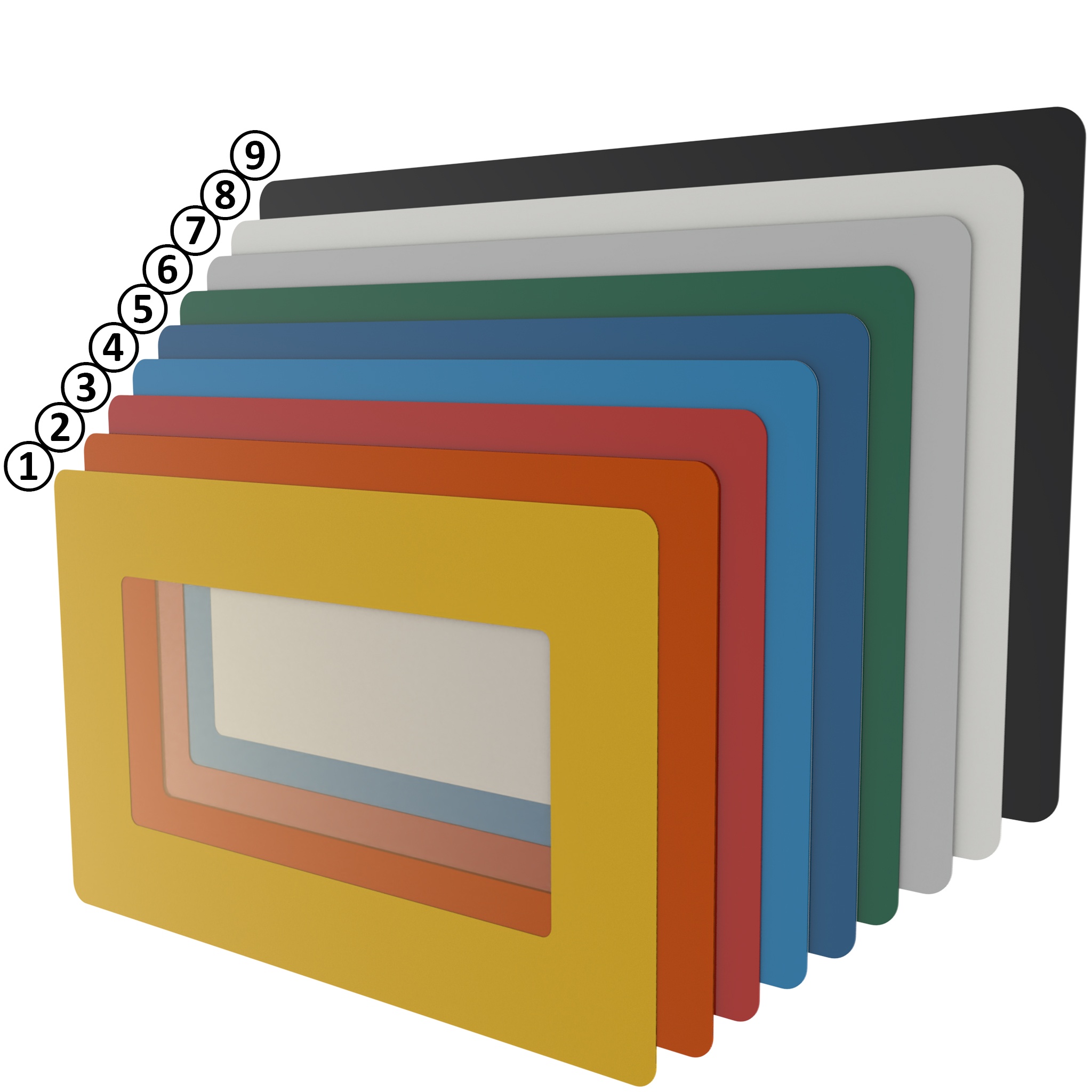

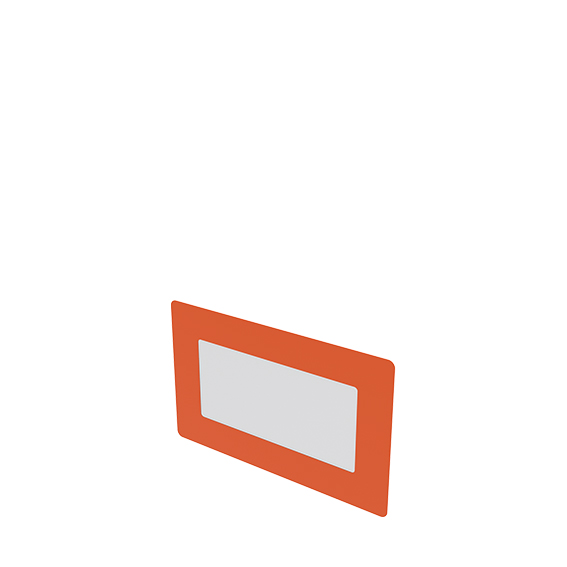

Floor Window 1/3 DIN A4 Portrait - 8.3" x 3.9"
Color: Green ≈ RAL 6016 | Fig.:
Color:Yellow, red, blue, green, whiteDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor window with outstanding adhesive strength, suitable for almost all industrial floors Scanner-compatibleMaterial:Plastic PVCZolltarifnummer:39199080990

€0.00*

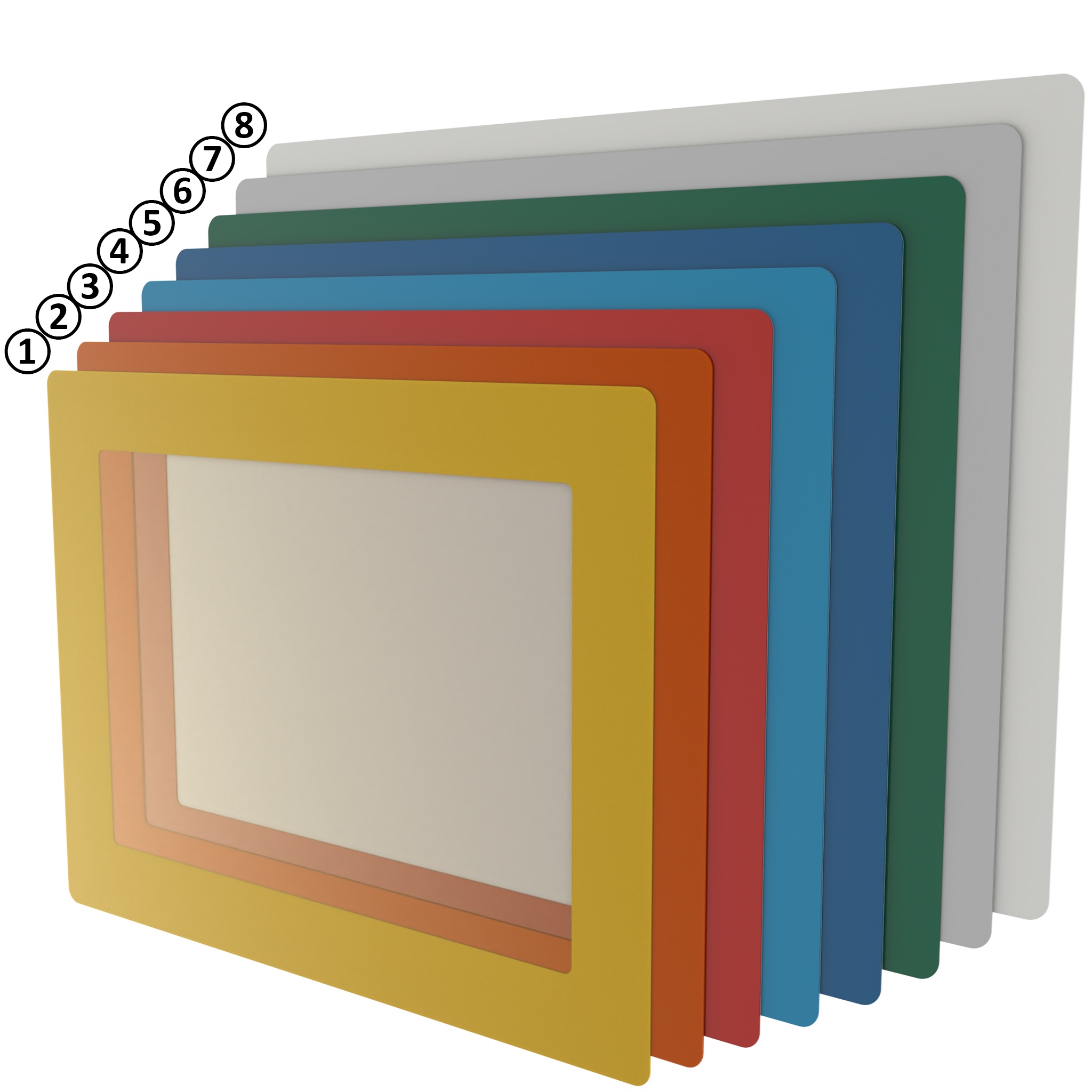

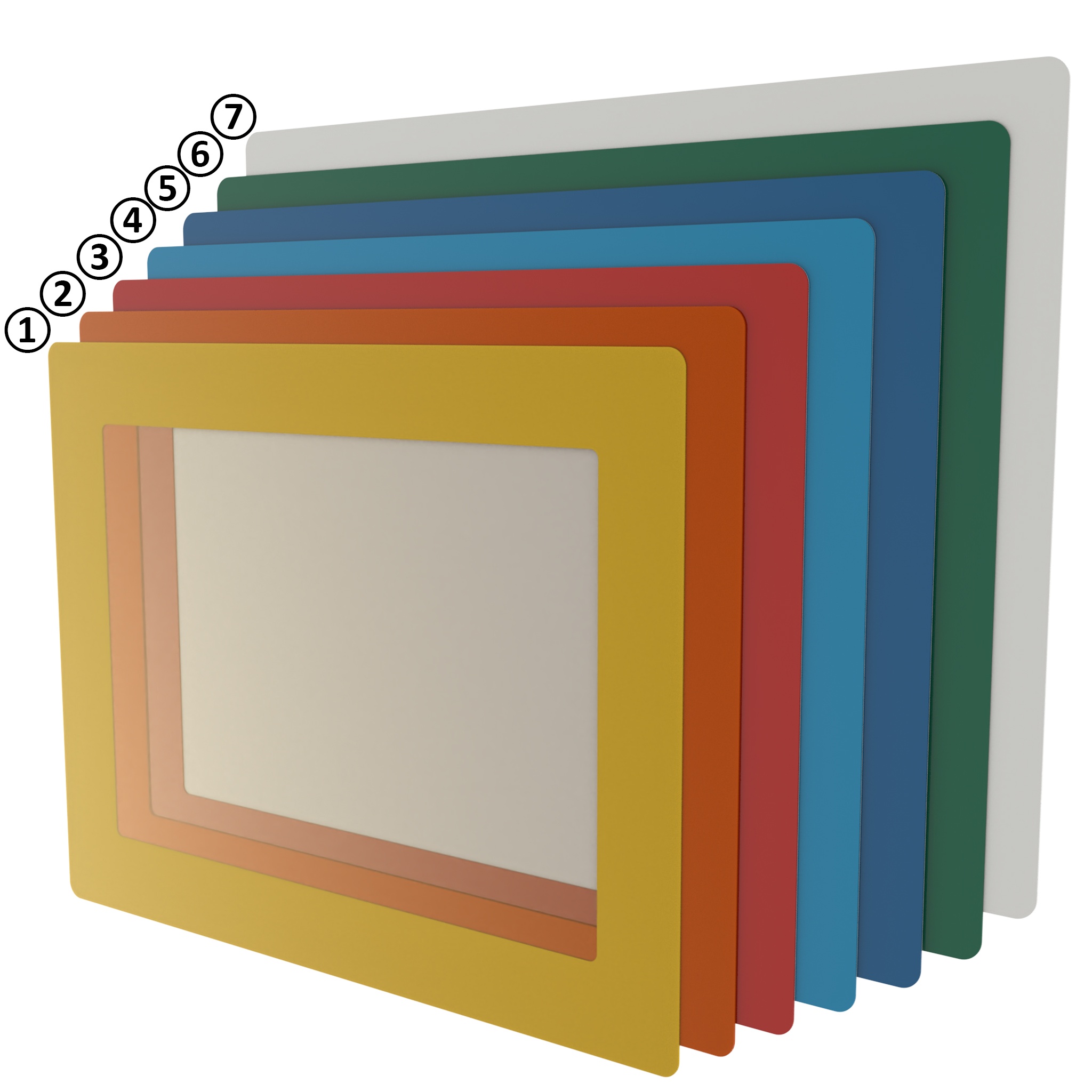

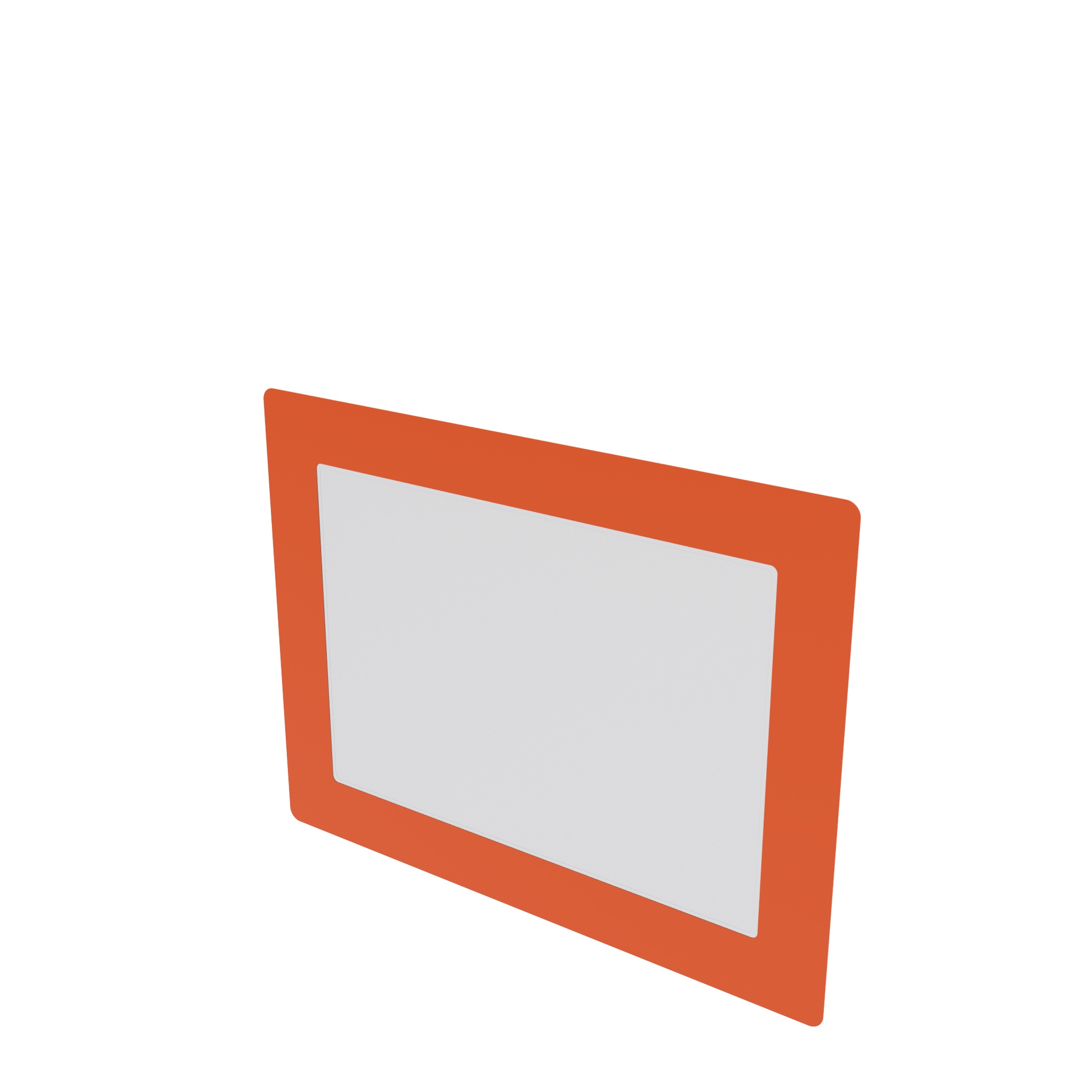

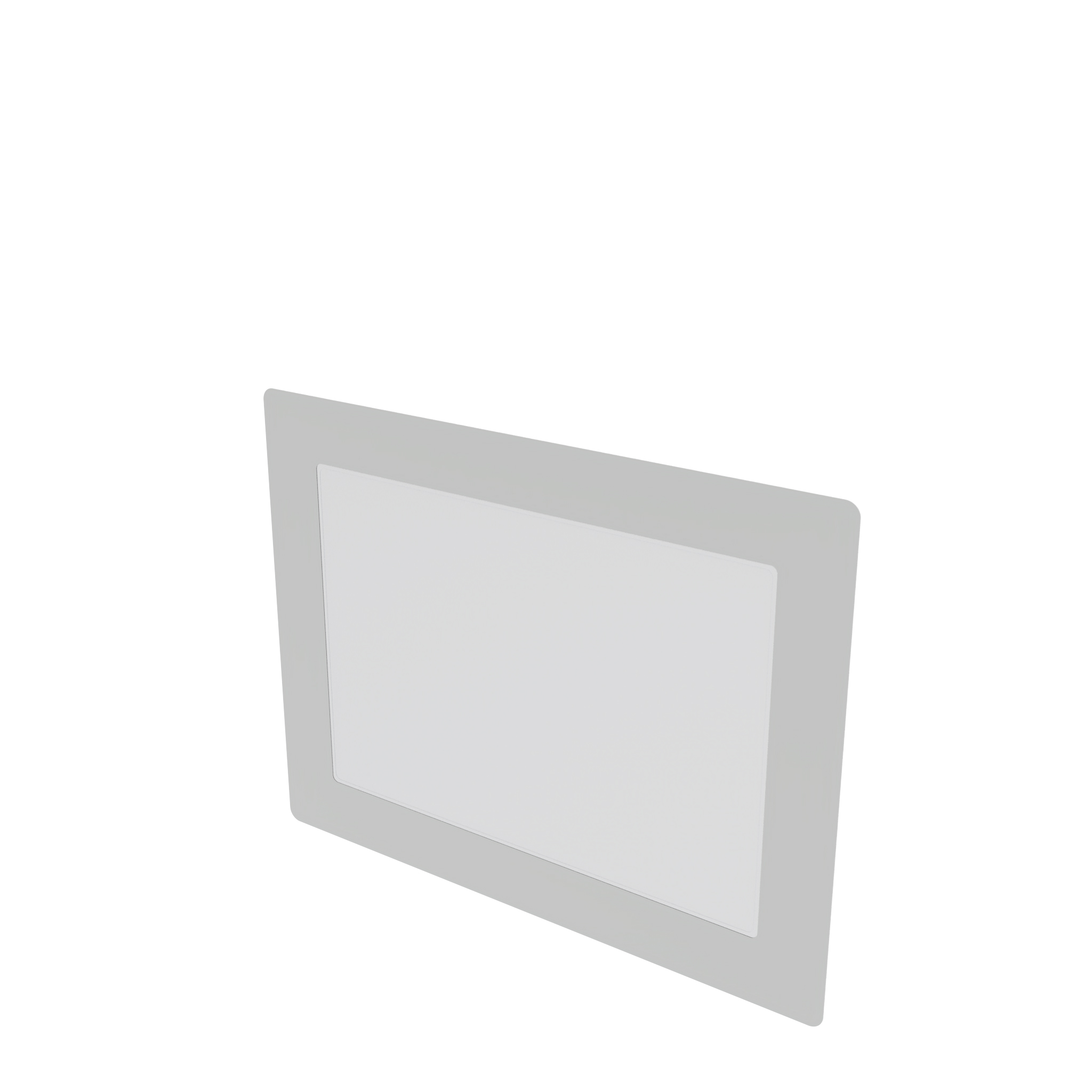

Floor Window DIN A4 - 8.3" x 11.7"
Color: White ≈ RAL 9003 | Fig.:
Color:Yellow, red, blue, green, whiteDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor window with outstanding adhesive strength, suitable for almost all industrial floors Scanner-compatibleMaterial:Plastic PVCZolltarifnummer:39199080990

€0.00*
Floor Window DIN A5 - 5.8" x 8.3"
Color: Blue ≈ RAL 5017 | Fig.:
Color:Yellow, red, blue, green, whiteDelivery Countries:WorldwideDescription:For easy and reliable marking of parking / storage areas etc., self-adhesive; Forklift-resistant and stable floor window with outstanding adhesive strength, suitable for almost all industrial floors Scanner-compatibleMaterial:Plastic PVCZolltarifnummer:39199080990

€0.00*

CAD Downloads


TO CAD DOWNLOAD

TIPS & TRICKS ON THE TOPIC OF FLOOR MARKINGS

Floor markings for storage and production facilities: useful tips!


You see it every day: Floor markings in all areas of production, logistics, hallways or road traffic.

Mostly we do not pay much attention to them, but you as the person responsible know that floor markings are an important part of public and operational organization. They demarcate areas, protect employees and goods from danger and visualize escape routes and emergency routes. And, in addition to the safety aspects, there is another central factor: Smart floor markings make a significant contribution to efficient production processes - in terms of LEAN production.

Learn more


FAQ

Your questions, our answers:

We have collected and answered the most frequently asked questions about our Floor Marking Shapes and Floor Windows for you. Perhaps your question is already included.

If not, please write to us.

What distance should be maintained when attaching L-shaped and T-shaped parking space markings?

To create a long-lasting parking space marking, a distance of 20 to 30 centimeters should be maintained when using the L-shape or the T-shape. This protects the floor markings from being damaged by being pushed over e.g. by steel containers.

Can the floor marking be used outdoors?

FATH floor markings are designed for indoor use and achieve the best durability there.

Is the color signal yellow suitable for marking restricted areas?

If possible, restricted areas should be marked in a separate color so that there is a clear distinction between walkways and driveways. Signal yellow has a high visual impact and is immediately noticeable visually.

Does the floor marking for separating the walkway have to be yellow?

According to the ordinance, only danger zones must display yellow-black stripes for permanent and red-white stripes for temporary obstacles. Other safe walkways do not have to be marked in yellow.

Are floor signs suitable for marking storage locations?

Yes. Thanks to their special scanner suitability, FATH floor windows are particularly suitable for marking storage locations and for marking parking spaces.

Is the floor marking wear-resistant?

The materials used make the FATH floor marking particularly wear-resistant and hard-wearing. If the floor marking is damaged due to being continually pushed over, e.g. with lattice boxes, the defective area can be removed and only this point needs to be replaced. In addition to the low wear, this also has a positive effect on time and costs.

Does a parking space marker increase safety?

Different colors can be used to mark different areas, such as goods receipt / QA restricted areas, etc. In particular, if the parking space marking is combined with labeling windows (floor windows), incorrect assignments and search times can be significantly reduced.

In what sales unit is the floor marking delivered?

The floor marking rolls from FATH are supplied as 50 meter rolls and are easy to use. Floor marking shapes such as L-pieces and T-pieces are sold in units of 40, since four pieces are often required for a parking space marking.
