Product Portrait


Monitor Work Station Sit / Stand 4-axis, Profile Attachement (set)

Ergonomically, efficiently and space-saving working – with the FATH monitor work station SIT / STAND

The intelligent FATH monitor work station SIT / STAND with integrated holder for monitor, keyboard, mouse, scanner and small parts is the ideal Lean solution for workstations where monitors are in use. Profile mounting offers you completely new possibilities for the use of space.

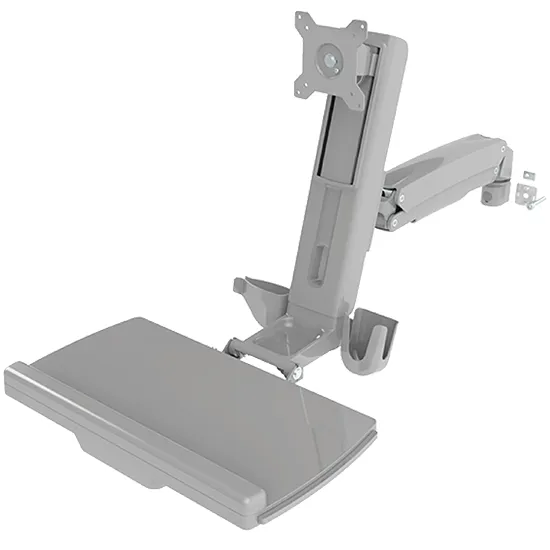

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Profile mounting on aluminum profiles 40
  • Horizontal and vertical mounting on the profile
  • Four axis for maximum flexibility
  • Steplessly height adjustable, tiltable and swivelable
  • Integrated cable routing
  • Pre-assembled, ready for use package

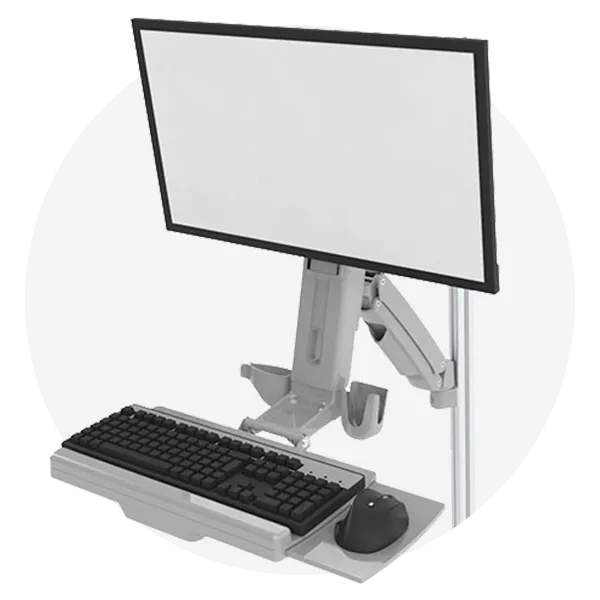

Flexible solution to save space: Complete monitor work station system for profile mounting

The intelligent FATH monitor work station SIT / STAND with integrated holder for monitor, keyboard, mouse, scanner and small parts is the ideal Lean solution for workstations where monitors are in use. Profile mounting offers you completely new possibilities for the use of space.

360° flexibility – individual adaptation of the work station with one hand grip

Four axis allow maximum flexibility: monitor and keyboard are infinitely height adjustable. Because the friction adjustment also makes tilting and swivelling 360° effortless, the tilt angle of the monitor and keyboard can be changed as desired. The screw-on joint halves can be mounted horizontally and vertically on profile systems 40 mm and higher.

A single movement is all it takes to adjust the monitor work station SIT / STAND perfectly to the needs of the employee and the requirements of the respective job - both during shift changes and during work processes.

For adjustments, a practical recessed grip is integrated under the keyboard holder. When not in use, the entire monitor work station SIT / STAND can simply be pushed upwards or sideways, creating space at the workplace for all necessary work. The keyboard holder can also be folded up separately.

Clever details for ergonomically optimized work

The keyboard holder is equipped with a wrist-rest that is easy on the joints and supports a fatigue-free movement of hands and arms. A further ergonomic advantage is provided by the mouse rest that can be pulled out to the right or to the left; right and left-handed users can work alternately. Two holders for scanners and a tray for small parts such as paper clips etc. complete the system. The cable routing is arranged within the system arms. A VESA plate for mounting a Mini-PC is optionally available.

Simply lean: Adjustable monitor work station SIT / STAND with keyboard holder and mouse tray: The new highlight for ergonomic work station systems and more efficient working.

The FATH monitor work station SIT / STAND is the ideal solution for the efficient and ergonomic provision of information and at the same time the lean use of space. In this way it makes an important contribution to the optimization of your production processes.

ARE YOU LOOKING FOR A MONITOR ATTACHMENT WITHOUT A KEYBOARD HOLDER?

You will find various options here: Monitor Mounting Plates, Monitor Support with 4- or 5-axis or the height-adjustable SKY Monitor Suspension Arm.


Go to Monitor Attachments

VERSIONS

Skip product gallery

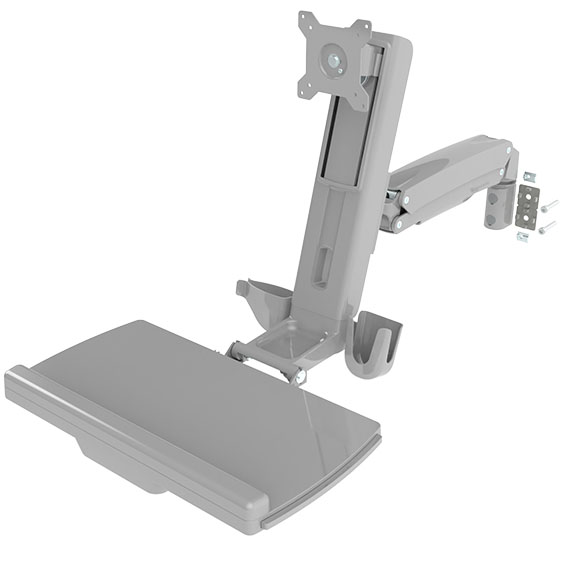

Monitor Work Station SIT / STAND 4-axis, Profile Attachment (Set)
Color:Monitor Work Station: Gray Cable management cover: Gray Mounting flange: Alu colorDelivery Countries:WorldwideDescription:For mounting of monitors with 2 - 8 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height; Fold-up holder with wrist rest for keyboard up to 2.5 kg, incl. left or right pull-out shelf for mouse, as well as holders for hand scanner and mouse; 360° mounting flange can be attached lateral, transverse, or on the face of the profile, if attached on the front face, the core hole of the respective profile must be M8 threadedMaterial:Monitor Work Station: Steel / aluminum / plastic Cable management cover: Plastic Mounting flange: Aluminum die-cast Screws: SteelSet:1 monitor work station incl. keyboard holder and cable management cover 1 mounting flange incl. bolt and cover cap 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates - slot 8 2 centering plats - slot 10 2 T-slot nuts - slot 8 - M8 2 T-slot nuts - slot 10 - M8Surface:Monitor Work Station: Powder coated Mounting flange: Powder coated Screws: Zinc platedZolltarifnummer:73269098900

€0.00*

CAD Downloads


TO CAD DOWNLOAD

Even more flexibility due to longer system arm

The system arm can be extended by using FATH friction joints. The holders for the work equipment are thus flexibly available to the employee in an even larger radius.


FRICTION JOINTS FOR SYSTEM ARM
