Profile Mount Base 80 - 85 x 168
€0.00

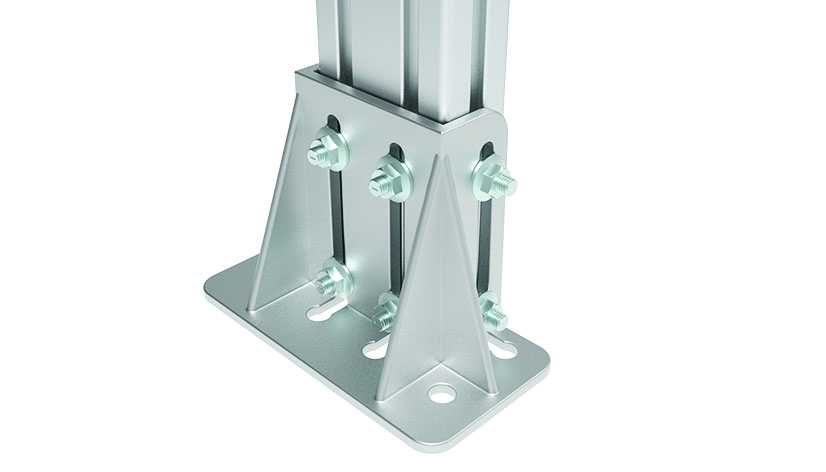

To mount aluminum profiles as posts or shelf beams
Aluminum die-cast
Surface:
Powder coated
Color:
Alu color
Tip:
Compatible Hammer Screw Slot 8 see 096HK0830M0820
Compatible Hammer Screw Slot 10 see 096HK1030M0820
Compatible Flange Nut M8 see 340ME154
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Aluminum die-cast |
| Weight (g): | 522.0 |
| ERP Number: | 160215 |
Classifications
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
Matching accessories
Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS304Surface:Zinc plated / plainTip:Compatible Flange Nut see 340ME154 *Made of hammer nut with glued threaded rodSpecials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestDelivery Countries:Worldwide
Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS316Surface:Zinc plated / plainTip:Compatible Flange Nut see 340ME154 *Made of hammer nut with glued threaded rodSpecials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestDelivery Countries:Worldwide
Description:To be used in conjunction with a hammer head screwMaterial:Steel / stainless steelSurface:Zinc plated / plainDelivery Countries:Worldwide
