Profile Slider Center Slot

Product information "Profile Slider Center Slot"

Delivery Countries:
Worldwide

Description:

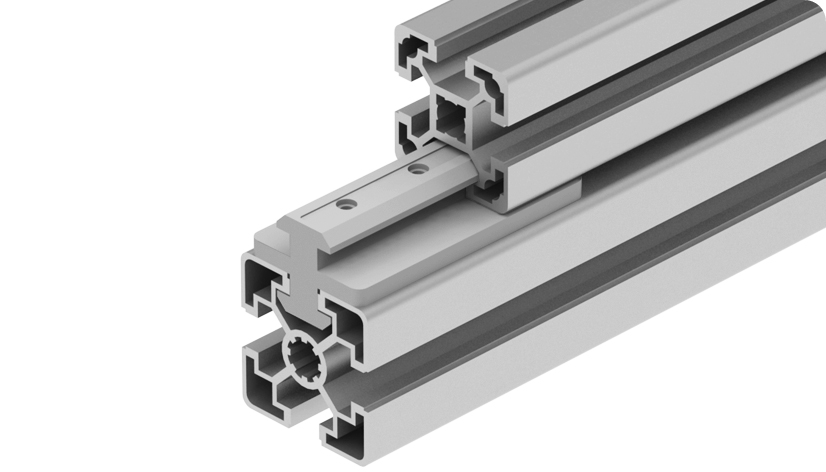

To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for sliding doors

Fastening:
With sheet-metal screws

Material:
Plastic POM

Surface:
Natural
Pack Quantity: 10 pieces
Model: Slot 8, 10
Weight (g): 29.0
ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097
ERP Number: 128630

Variants

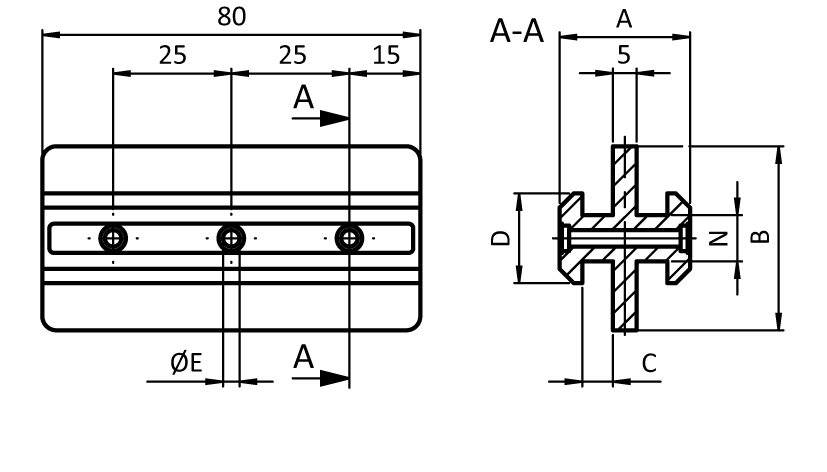

Part # D (mm) Profile A (mm) B (mm) C (mm) Slot N (mm) E (mm)
093SM08 15.0 B 18.0 26.0 3.0 8 2.8
093SM10 19.0 B 27.6 39.0 6.5 10 3.5
