Profile Slider Flats

Product information "Profile Slider Flats"

Delivery Countries:
Worldwide

Description:

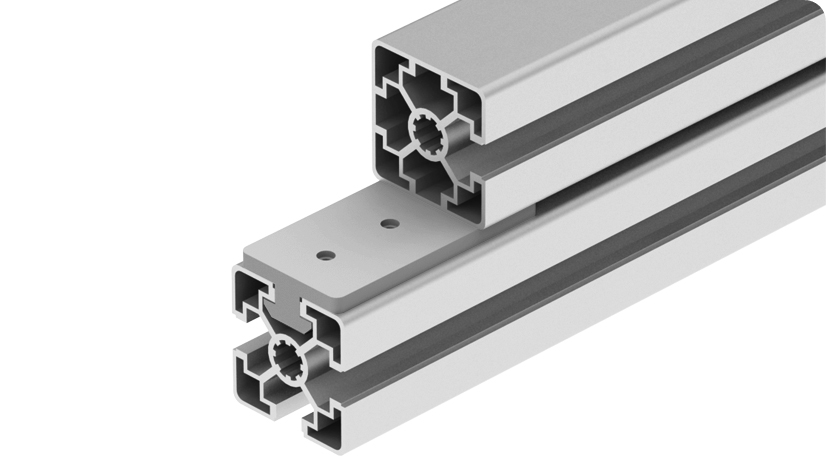

To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for panels

Fastening:
With sheet-metal screws

Material:
Plastic POM

Surface:
Natural
Model: Slot 6, 8, 10
Pack Quantity: 10 pieces
Customs Tariff Number Export: 39269097
Weight (g): 22.0
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
ERP Number: 128628
Zolltarifnummer: 39269097900

Variants

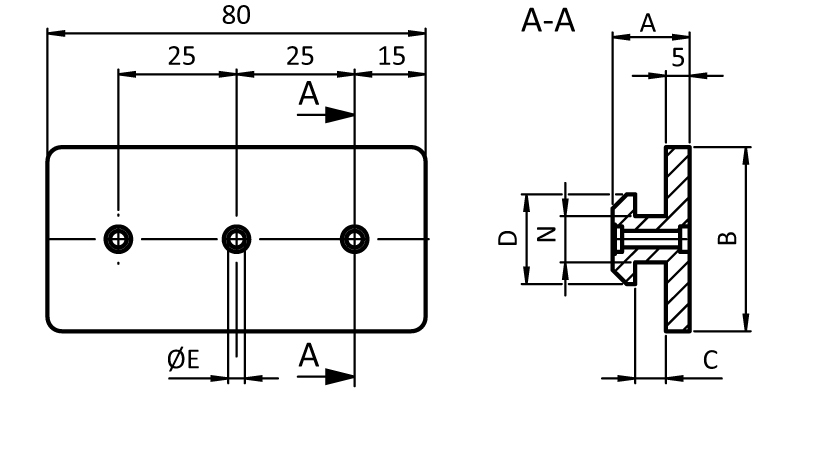

Part # A (mm) B (mm) C (mm) D (mm) E (mm) Slot N (mm) Profile Pack Quantity
093SM06S02 9.8 17.0 2.3 11.5 2.8 6 B 10 pieces
093SM08S02 11.5 26.0 3.0 15.0 2.8 8 B 10 pieces
093SM10S02 16.3 39.0 6.5 19.0 3.5 10 B 10 pieces
