Profile Slider ZN 40 x 80 with Cam Lever (Set)

Product information "Profile Slider ZN 40 x 80 with Cam Lever (Set)"

Color:
Slide shoe: Natural
Cam lever handle: Black

Delivery Countries:
Worldwide

Description:

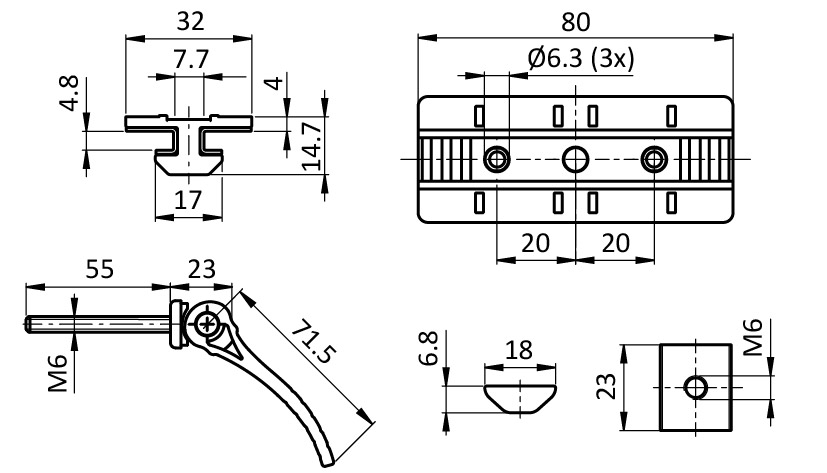

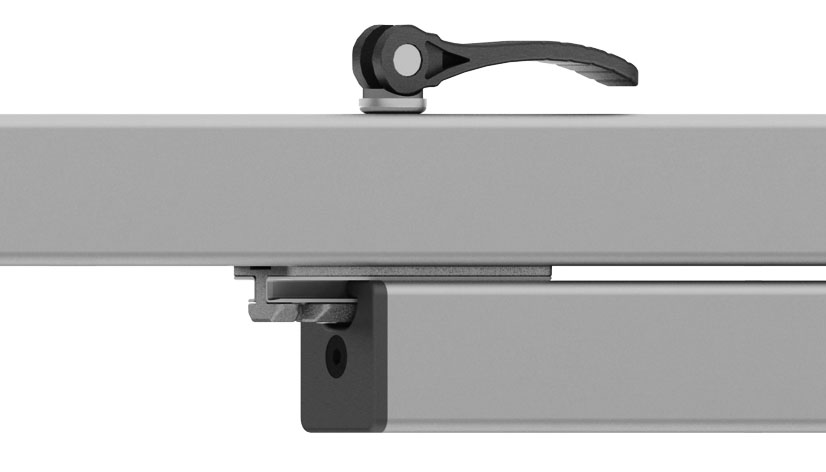

To guide slidingly profiles with slot 8, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stop; including hexagon nuts M6 for the attachment of additional components

Material:
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
Cam lever handle: Plastic, glass fiber reinforced
Cam lever mechanics: Steel

Set:
1 sliding carriage,
2 slide shoes,
1 cam lever with external thread M6 x 55*,
1 special T-slot nut - slot 8 - M6,
2 hexagon nuts DIN 439 B - M6

Surface:
Sliding carriage: Zinc plated
Slide shoe: Zinc plated
Cam lever mechanics: Zinc plated

Tip:
* Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm
Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm
40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Model: Slot 8
Pack Quantity: 10 sets
Weight (g): 127.0

Variants

Product ID Version Profile
093PS0840S02 Witch cam lever I
