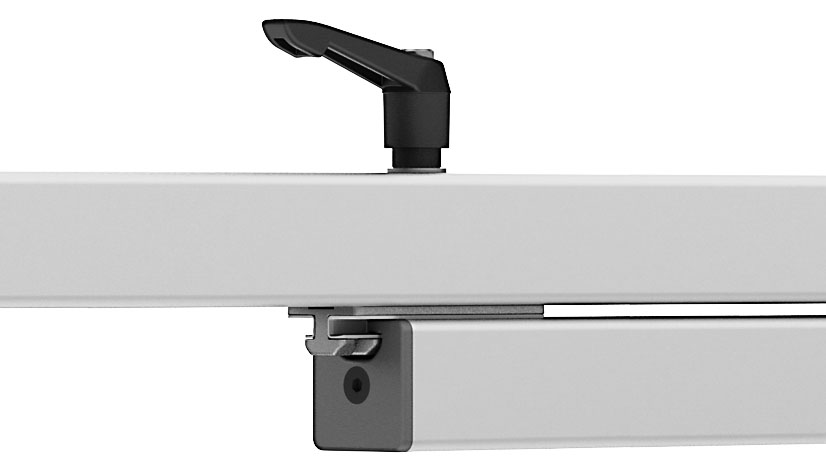

Profile Slider ZN 40 x 80 with Locking Lever (Set)

Product information "Profile Slider ZN 40 x 80 with Locking Lever (Set)"

Color:
Slide shoe: Natural
Clamp lever handle: Black

Delivery Countries:
Worldwide

Description:

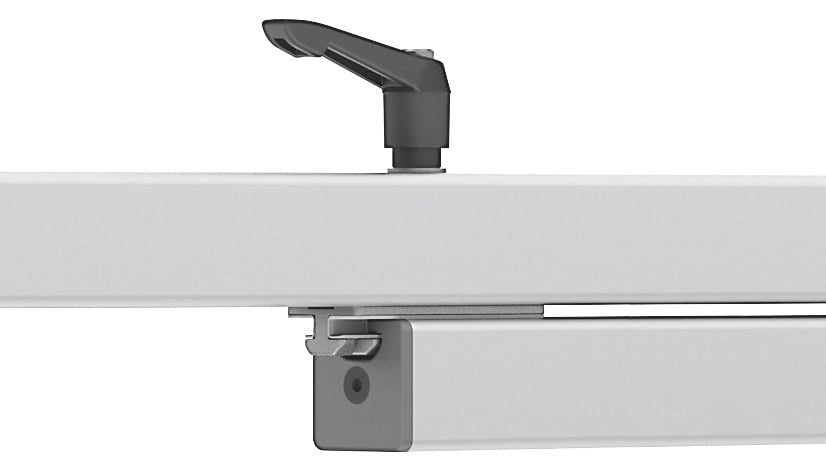

To guide slidingly profiles with slot 8; the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop;
Retention force at maximum tightening torque(15 Nm) 600 N; including hexagon nuts M6 for the attachment of additional components

Material:
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
Clamp lever handle: Plastic, glass fiber reinforced
Clamp lever mechanics: Steel

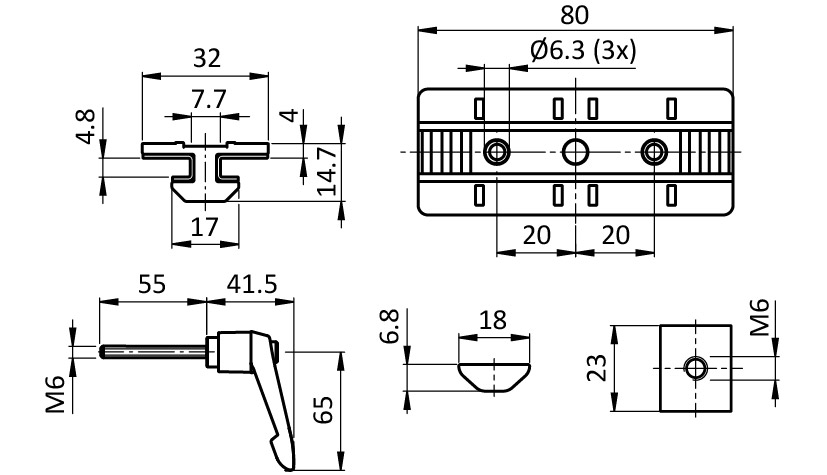

Set:
1 sliding carriage,
2 slide shoes,
1 clamp lever with external thread M6 x 55*,
1 special T-slot nut - slot 8 - M6,
1 shim DIN 9021 6.4 mm,
2 hexagon nuts DIN 439 B - M6

Surface:
Sliding carriage: Zinc plated
Slide shoe: Zinc plated
Clamp lever mechanics: Oxide finish

Tip:
* Use of the M6 clamp lever:
40 mm profile + 40 mm profile, thread length: 55 mm
Cut to length of the M6 clamp lever, e.g.:
40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm
40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Model: Slot 8
Pack Quantity: 10 sets
Weight (g): 136.0

Variants

Product ID Version Profile
093PS0840S01 With clamp lever I
