Quick Block (Set)

Product information "Quick Block (Set)"

Color:
Black

Delivery Countries:
Worldwide

Description:

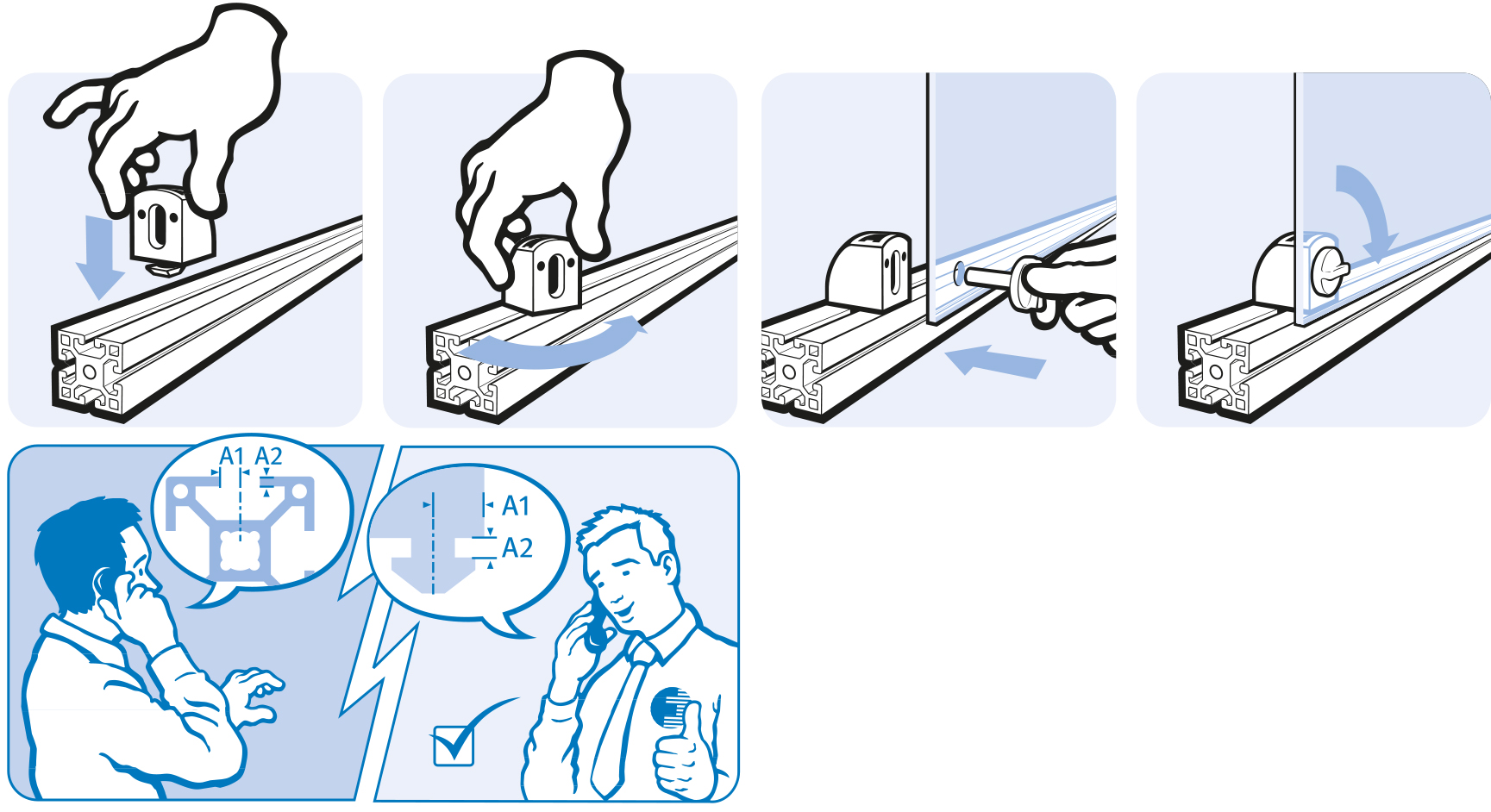

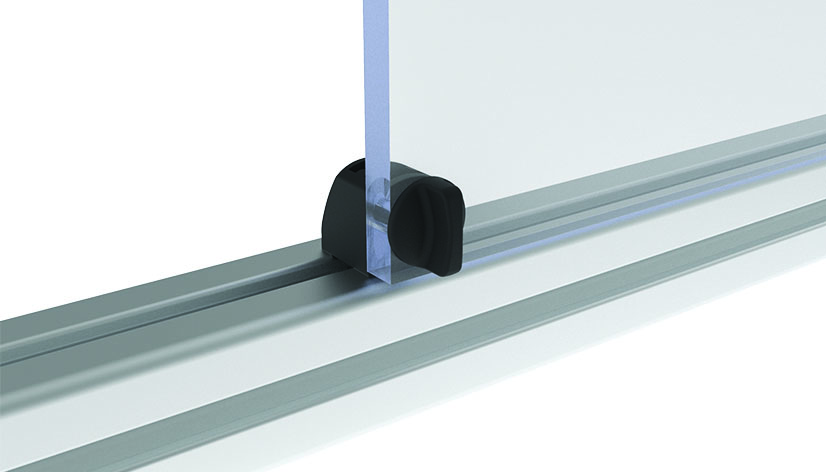

To attach panels quickly 1- 12 mm to aluminum profiles

Material:
Plastic PA, glass fiber reinforced

Specials:
Customized hammer, other colors on request

Pack Quantity:	100 pieces
Model:	Plastic PA, Slot 8, 10
Weight (g):	11.0
ERP Number:	127395

Global keywords / tags:

Profile Type	Profile Type B
Slot Size	Slot 8

Variants

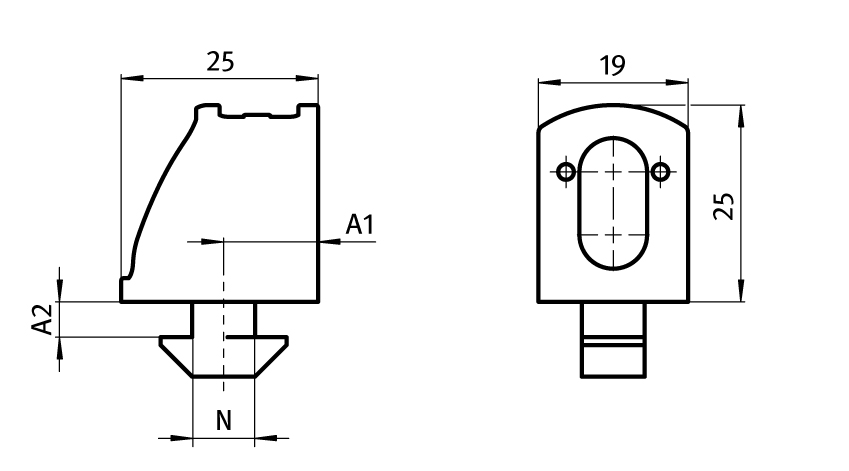

Part #	Version	Profile	Slot N (mm)	A2 (Profile) (mm)	A1 (mm)
094700	Lockpin M	I	8	4.4 (4.5)	12.0
094701	Lockpin M	B	10	5.7 (6.0)	8.5
094707	Lockpin M	B	8	1.9 (2.2)	7.0

CAD Downloads

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates
