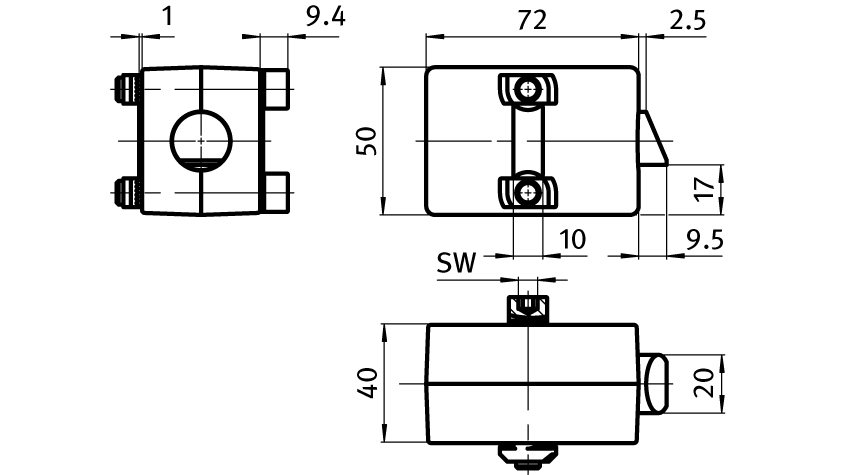

Return Stop (Set)

Product information "Return Stop (Set)"

Delivery Countries:
Worldwide

Description:
For preventing backwards movement of tool carrier

Material:
Housing: Zinc die-cast
Catch: Plastic PA / stainless steel / brass

Set:
1 backstop,
2 hammer nuts slot 10 - M8, zinc-plated steel,
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50, zincplated steel,
2 washers 8-FSt

Surface:
Plain
(ECLASS 6.0): 36120490
(ECLASS 7.0): 36120490
(ECLASS 8.0): 36120490
(ECLASS 9.0): 36120490
(ECLASS 10.0): 36120490
(ECLASS 11.0): 36120492
(ECLASS 12.0): 36120492
(ECLASS 13.0): 36120492
Customs Tariff Number Export: 79070000
Model: Zinc die-cast
Pack Quantity: 1 set
Weight (g): 560.0
Zolltarifnummer: 79070000900
pA Number: 108295

Variants

Product ID Slot N (mm) Version
093100E 10 Catch stainless steel
093100K 10 Catch plastic PA
093100M 10 Catch brass
