Rhombus Nut

Product information "Rhombus Nut"

Delivery Countries:
Worldwide

Description:
To fasten components to profiles, easy to insert, remains mobile in the slot

Material:
Zinc die-cast

Surface:
Plain

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23110890
(ECLASS 7.0): 23110810
(ECLASS 8.0): 23110810
(ECLASS 9.0): 23110810
(ECLASS 10.0): 23110810
(ECLASS 11.0): 23110716
(ECLASS 12.0): 23110716
(ECLASS 13.0): 23110716
Model: Slot 8, zinc die-cast
Pack Quantity: 100 pieces
Weight (g): 4.0

Variants

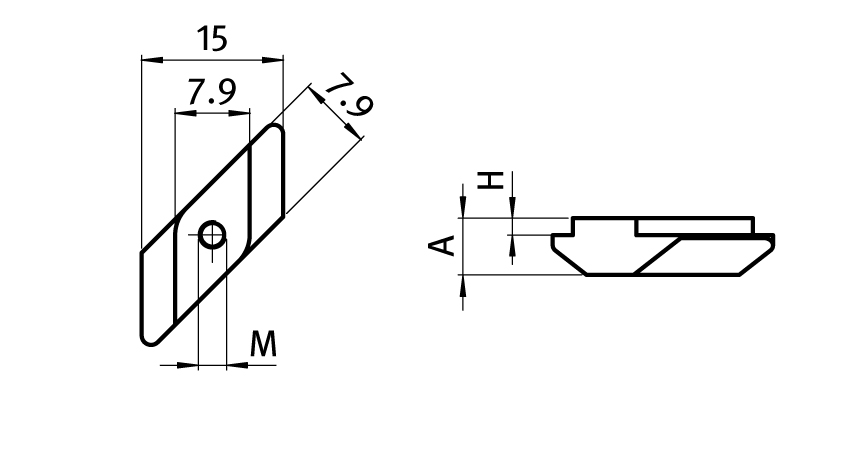

Product ID Profile A (mm) H (mm) M
096R080318Z B 6.0 1.8 M3
096R080330Z I 7.7 3.0 M3
096R080418Z B 6.0 1.8 M4
096R080430Z I 7.7 3.0 M4
096R080518Z B 6.0 1.8 M5
096R080530Z I 7.7 3.0 M5
