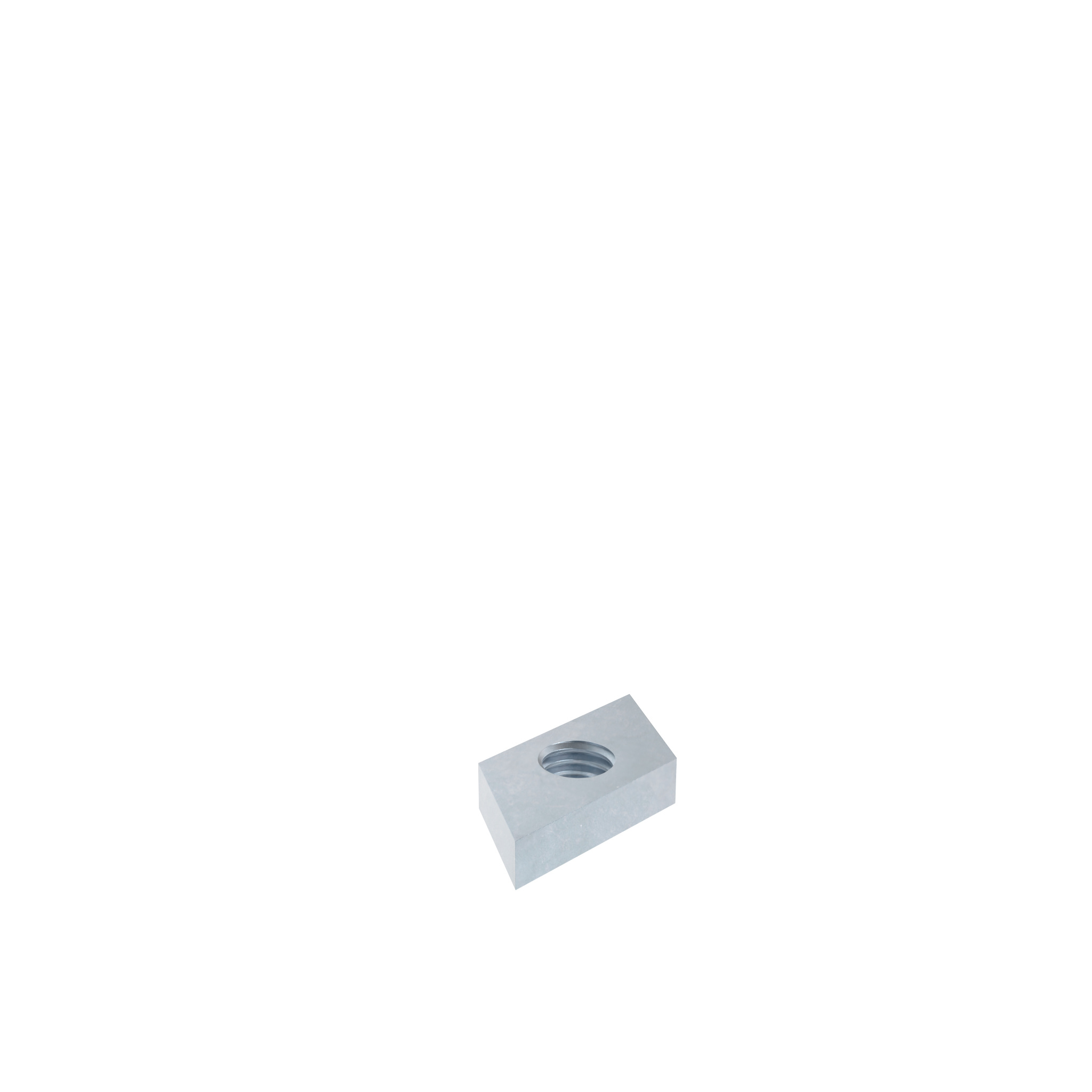

Rhombus Threaded Plate

Product information "Rhombus Threaded Plate"

Delivery Countries:
Worldwide

Description:

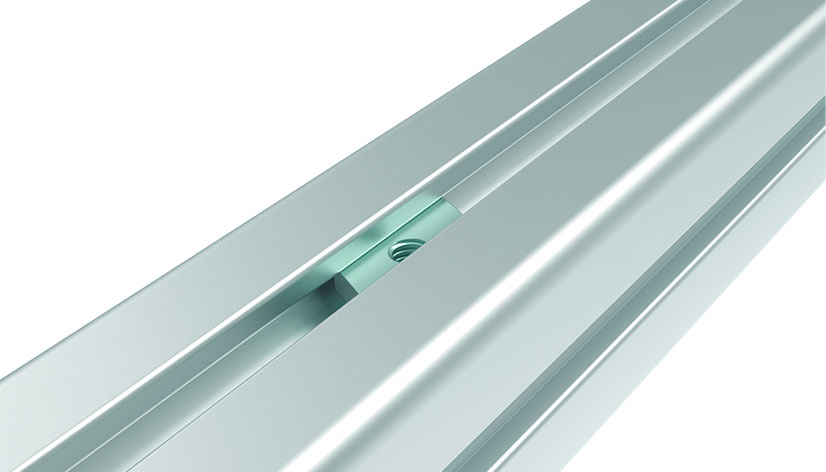

To fasten components with a screw

Material:
Steel

Surface:
Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 73181692

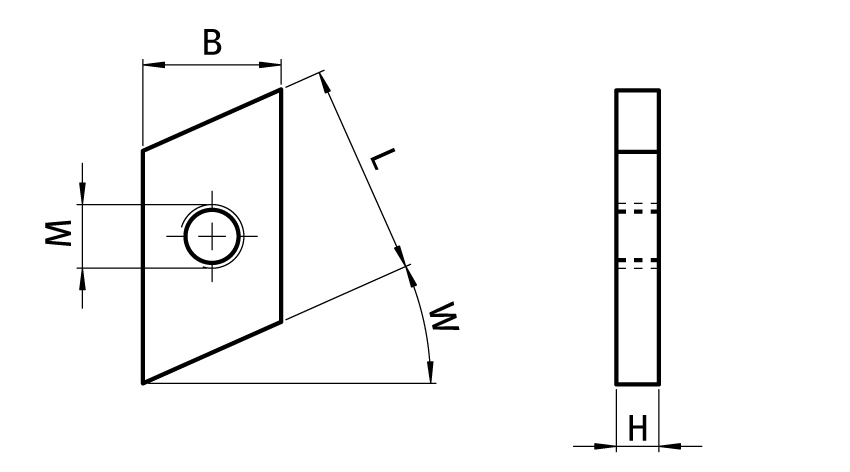

Dimensions: L x B x H
Model: Customized dimensions
Pack Quantity: 100 pieces
Weight (g): 9.0
Zolltarifnummer: 73181692900
pA Number: 103272

Variants

Product ID Opening Angle M Dimensions L x B x H (mm)
096PR0191305M8 30° M8 19 x 13 x 5
096PR0201304M6 24° M6 20 x 13 x 4
096PR0231506M8 30° M8 23 x 15 x 6
