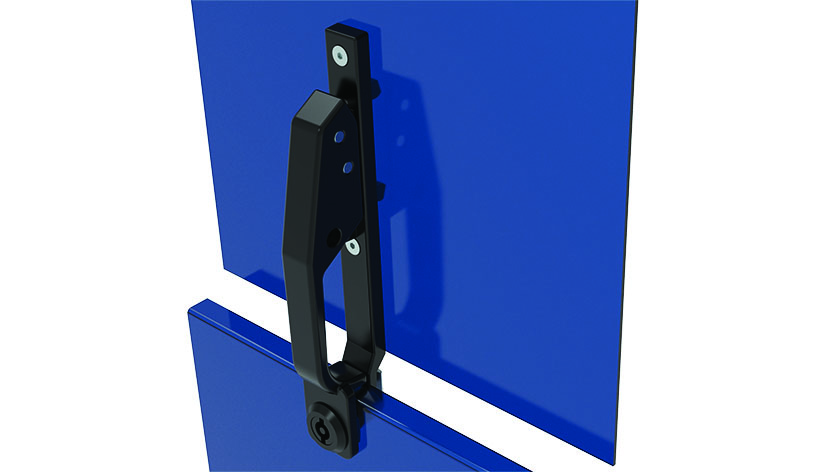

Rod Lever Latch

Product information "Rod Lever Latch"

Color:
Handle: Black / gray
Lever: Black / gray
Housing: Black / gray

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps

Material:
Handle: Zinc die-cast
Lever: Zinc die-cast
Housing: Zinc die-cast
Catch: Steel
Cam: Zinc die-cast
Pin: Stainless steel SS303
Nut: Zinc die-cast
Screw: Steel

Surface:
Handle: Powder coated / e-coated
Lever: Powder coated / e-coated
Housing: Powder coated / e-coated
Catch: Zinc plated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Customs Tariff Number Export: 83015000
Pack Quantity: 10 pieces
Weight (g): 584.3
Zolltarifnummer: 83014090000
pA Number: 121679

Variants

Product ID Color Material Surface
0810121 Black Zinc die-cast Powder coated
0810122 Black Zinc die-cast E-coated
0811037 Gray ≈ RAL 7012 Zinc die-cast Powder coated
