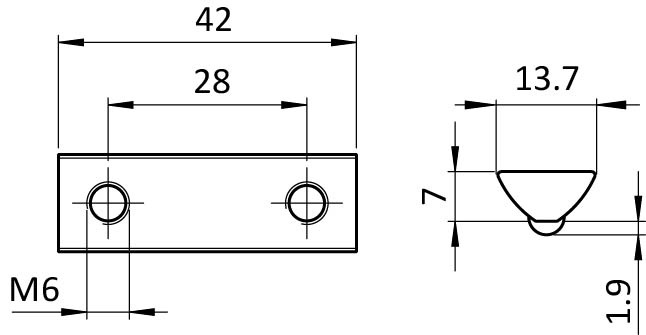

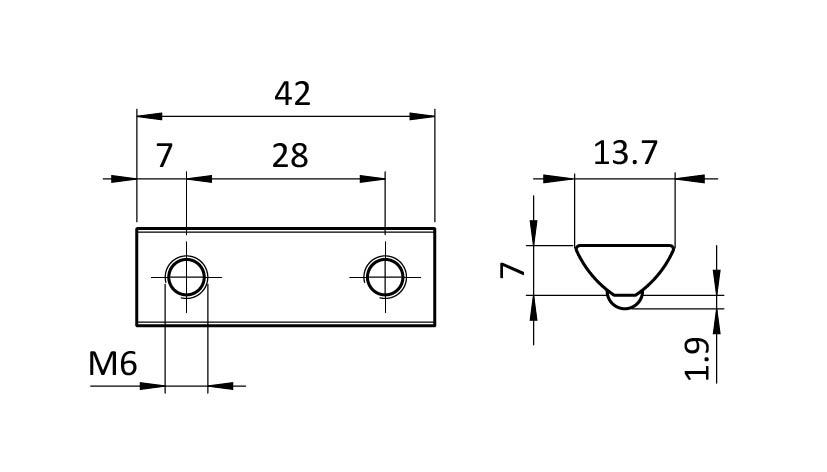

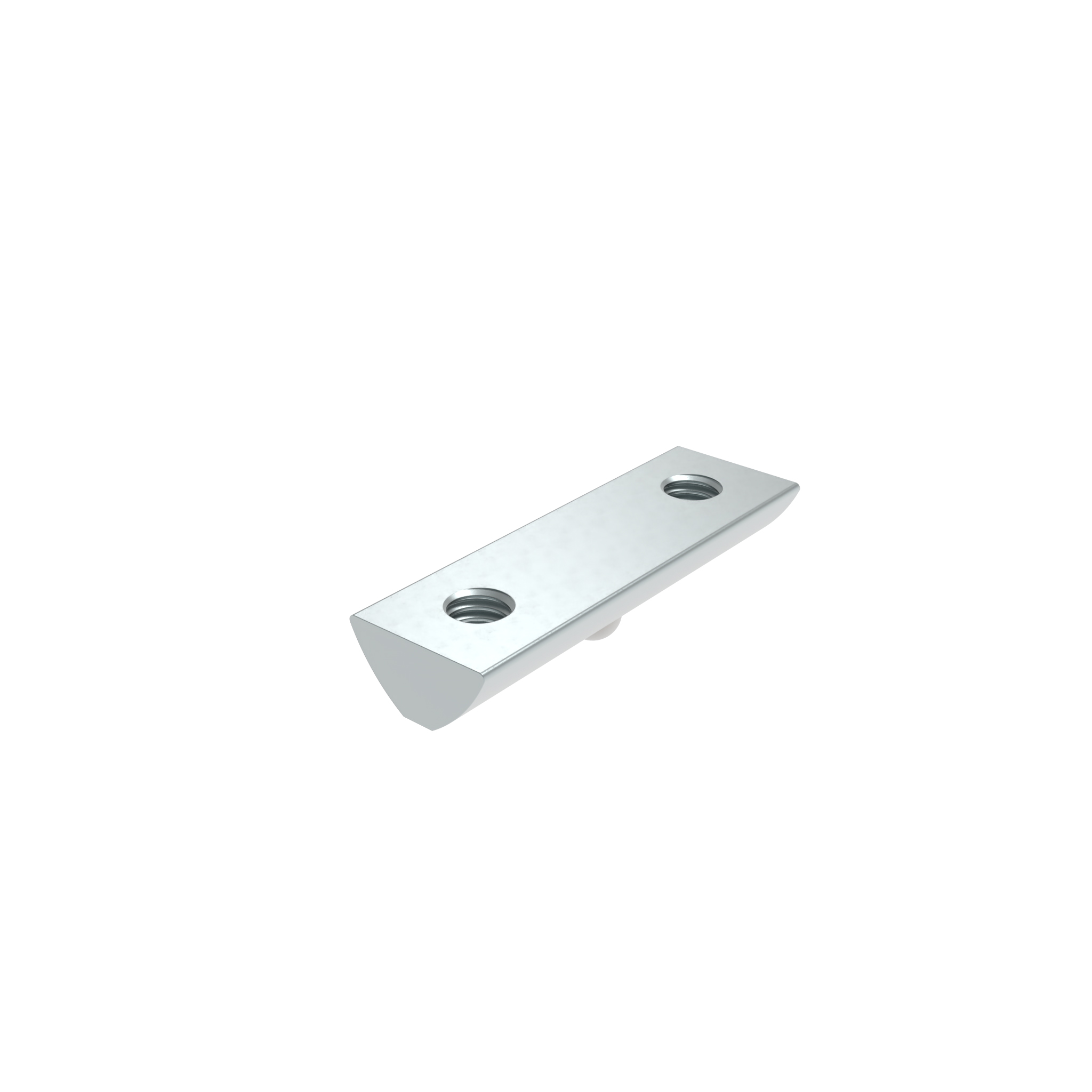

Roll-In Double T-Slot Nut 13.7 x 7.0 mm

Product information "Roll-In Double T-Slot Nut 13.7 x 7.0 mm"

Delivery Countries:
Worldwide

Description:
Roll-in double T-slot nut with spring loaded ball

Material:
Double T-slot nut: Steel
Ball: Stainless steel
Spring: Spring steel

Specials:
Different lengths with multiple threads in different sizes available on request

Surface:
Double T-slot nut: Zinc-plated
Ball: Plain
Spring: Plain
Pack Quantity: 100 pieces
Model: Slot 8, steel
Weight (g): 19.6
ERP Number: 102282

Variants

Part # Profile M CAD
I M6

CAD Downloads

Classifications

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
Zolltarifnummer
73181900900
Customs Tariff Number Export
73181900

Certificates

Tags

Profile Type Profile Type I
Profile Form T-slot Profiles
